Product Details

Guangxi Ligong Machinery Co.,Ltd

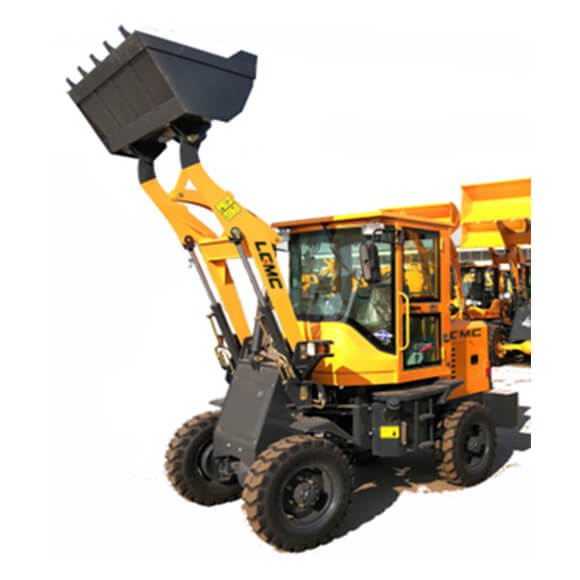

LC916

1. Patent gearbox and torque converter: Save 25% oil consumption.

2. Split structure gearbox and torque converter: Decrease 30% working temperature which can ensure a longer service life of the hydraulic components.

3. Three-stage air filtration technology: Effectively protect engine to prolong 30% engine life.

4. Double High and Low Walking Speed System: National patent system

QUOTATION LIST
Overall Performance/Models整体型号		Unit	LC916	Picture
General Machine Performance	Operating weight	kg	2100
	Length	mm	4500
	Width	mm	1530
	Height	mm	2450
	Wheel base	mm	1820
	Wheel track	mm	1300
	Total cycle time	s	9
	Tire size	size	7.50-16
	Max.travelling speed	km/h	35
Bucket Performance	Loading weight	kg	600
	Standard bucket capacity	m3	0.35
	Possible Bucket capacity	m3	0.35-0.7
	Bucket width	mm	1530
	Dumping height	mm	2300
	Dumping reach	mm	760
	Max. lifting height	mm	3400
Transmission Performance	Transmission type	name	automatic
	Control type	kw	mechanical
	Axle	type	130 drum brake
Engine Performance	Brand	name	YN25GB
	Power	kw/ rpm	37
	Rotate speed	rpm	2400
	Number of cylinders	unit	4
