Product Details

Guangxi Ligong Machinery Co.,Ltd

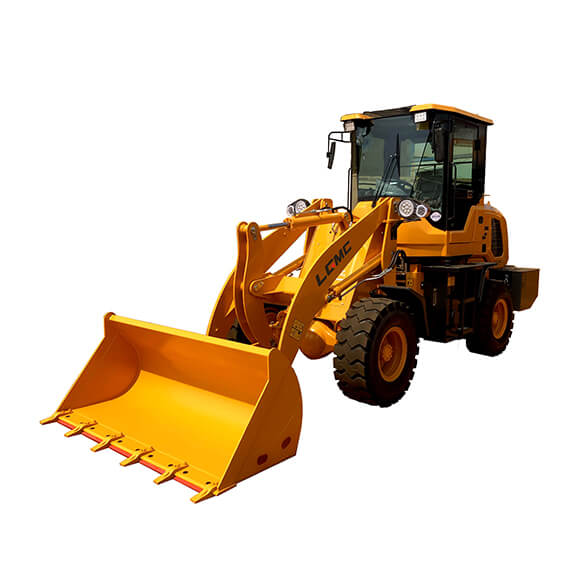

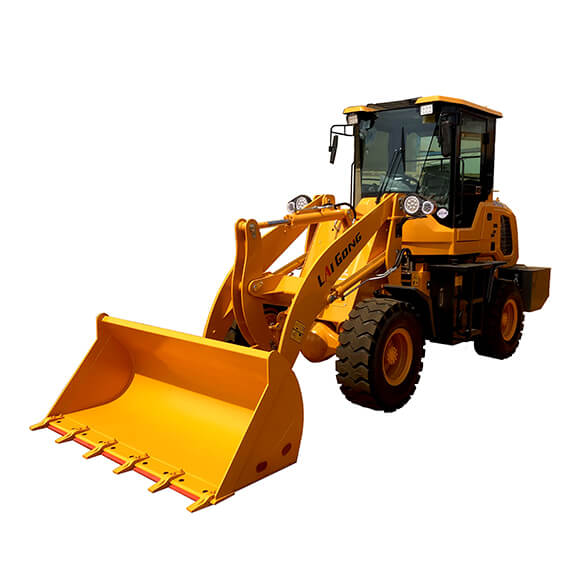

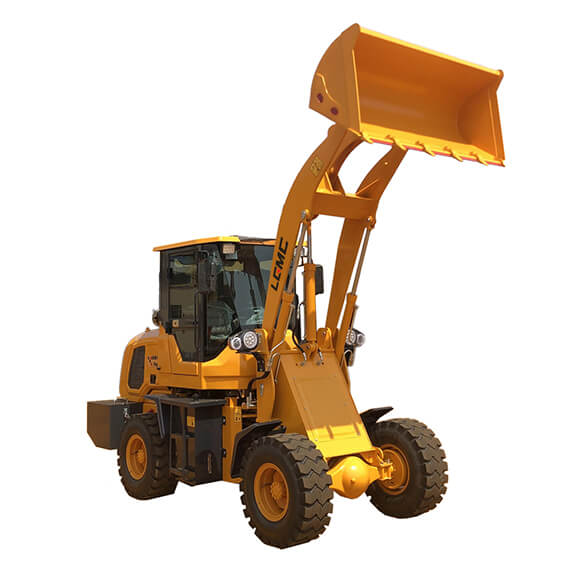

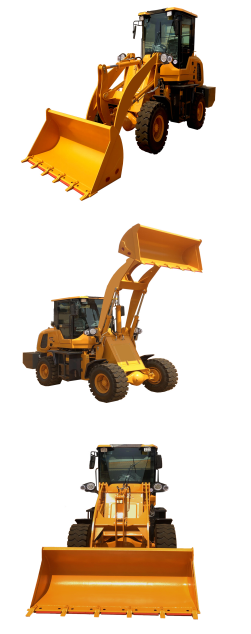

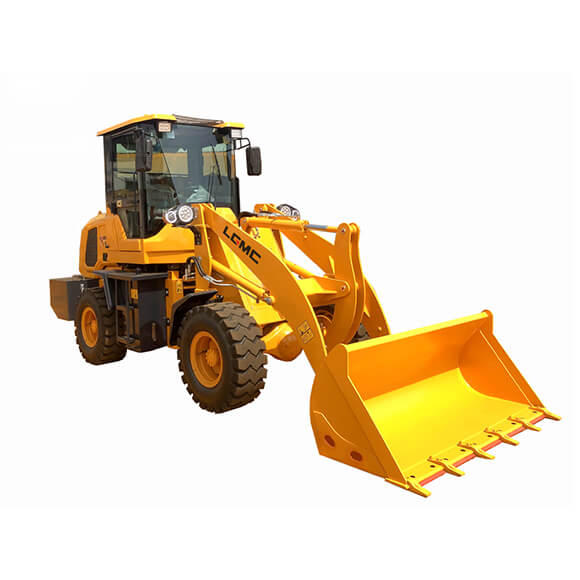

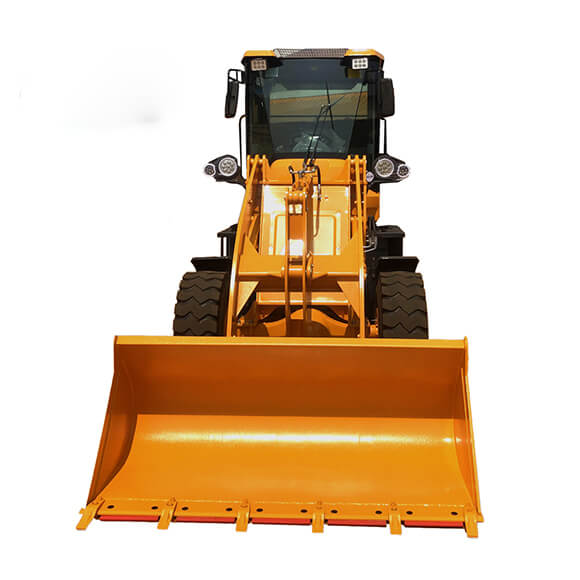

LC920

1. Patent gearbox and torque converter: Save 25% oil consumption.

2. Split structure gearbox and torque converter: Decrease 30% working temperature which can ensure a longer service life of the hydraulic components.

3. Three-stage air filtration technology: Effectively protect engine to prolong 30% engine life.

4. Double High and Low Walking Speed System: National patent system

QUOTATION LIST
Overall Performance/Models整体型号		Unit	LC920	Picture
General Machine Performance	Operating weight	kg	3100
	Length	mm	5460
	Width	mm	1800
	Height	mm	2700
	Wheel base	mm	2200
	Wheel track	mm	1400
	Total cycle time	s	9
	Tire size	size	20.5-16
	Max.travelling speed	km/h	35
Bucket Performance	Loading weight	kg	1500
	Standard bucket capacity	m3	0.6
	Possible Bucket capacity	m3	0.4-0.7
	Bucket width	mm	1800
	Dumping height	mm	3200
	Dumping reach	mm	700
	Max. lifting height	mm	4010
Transmission Performance	Transmission type	name	Automatic
	Control type	kw	Mechanical
	Axle	type	ISUZU drum brake
Engine Performance	Brand	name	YUNNEI 490
	Power	kw/ rpm	37
	Rotate speed	rpm	2400
	Number of cylinders	unit	4
