Product Details

Guangxi Ligong Machinery Co.,Ltd

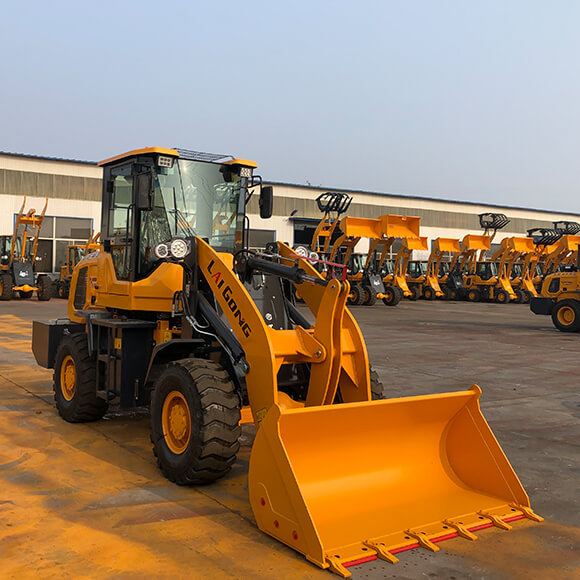

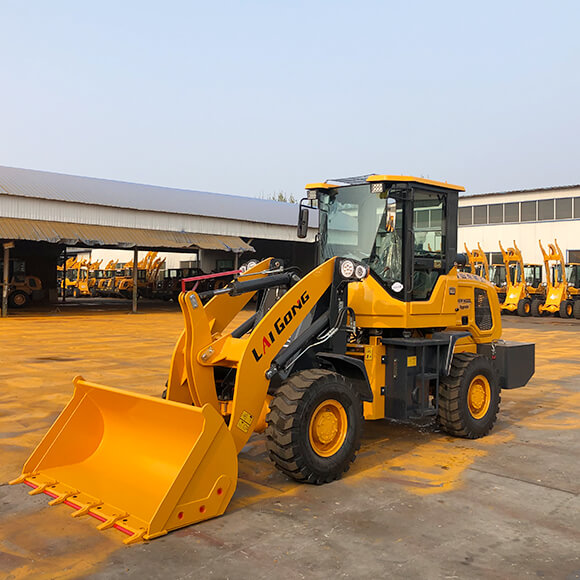

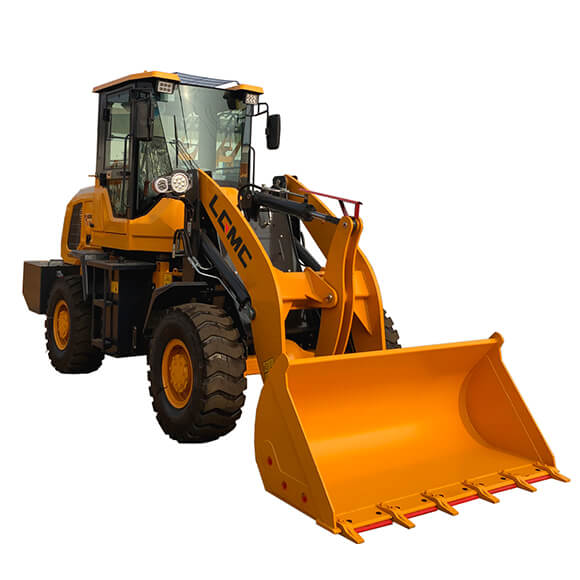

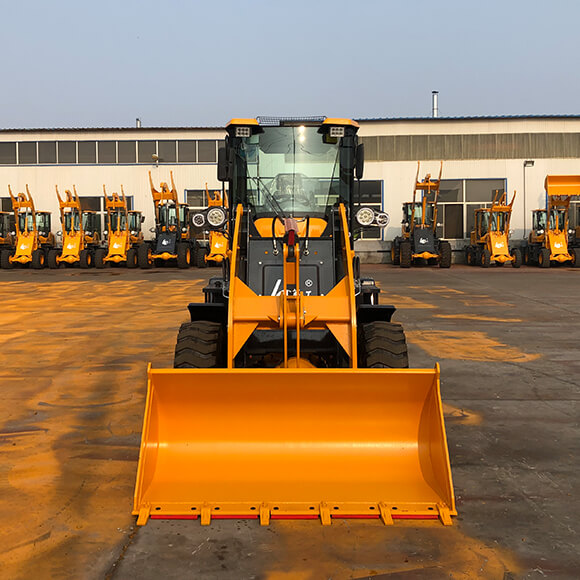

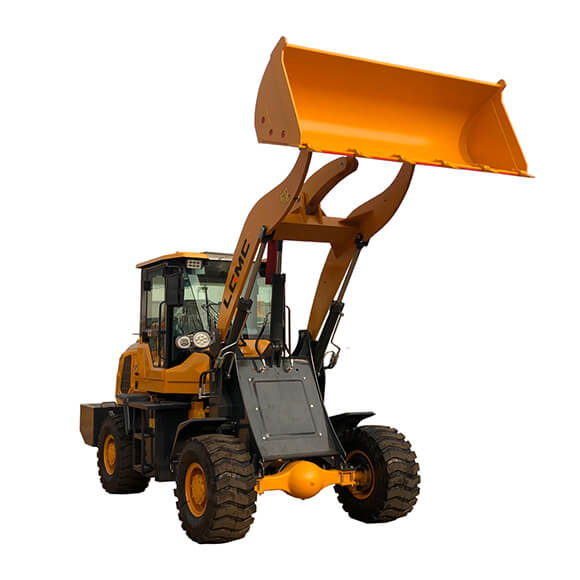

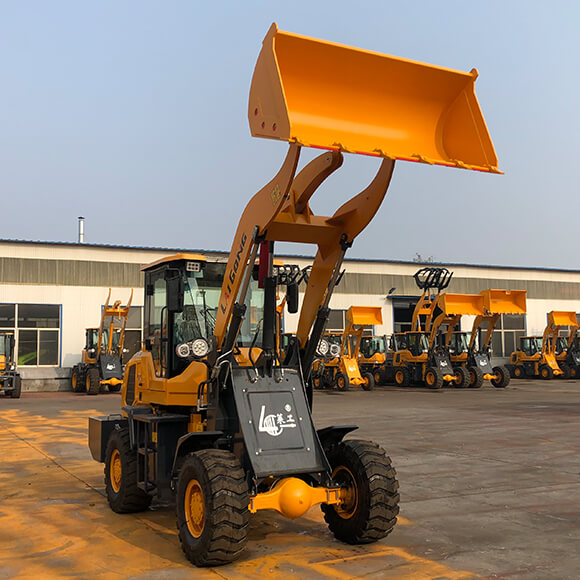

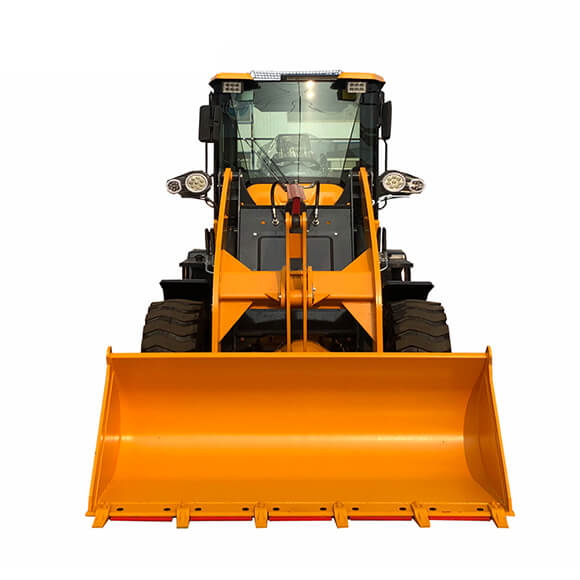

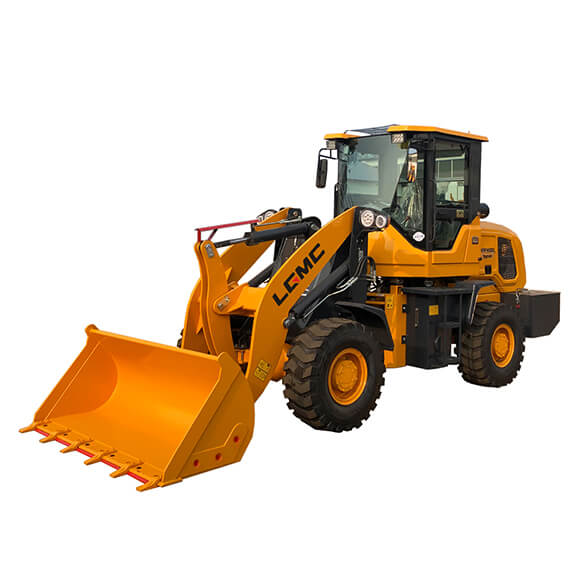

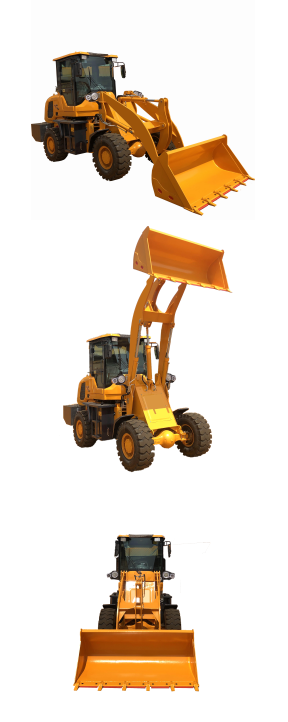

LC928
LC928
LC928
LC928
LC928
LC928
LC928
LC928

LC928

1. Patent gearbox and torque converter: Save 25% oil consumption.

2. Split structure gearbox and torque converter: Decrease 30% working temperature which can ensure a longer service life of the hydraulic components.

3. Three-stage air filtration technology: Effectively protect engine to prolong 30% engine life.

4. Double High and Low Walking Speed System: National patent system


>
<

Detail Information

QUOTATION LIST

Overall Performance/Models整体型号

Unit

LC928



General Machine Performance

Operating weight

kg

3500



Length

mm

5600

Width

mm

1900

Height

mm

2720

Wheel base

mm

2250

Wheel track

mm

1400

Total cycle time

s

9

Tire size

size

20.5-16

Max.travelling speed

km/h

35

Bucket Performance

Loading weight

kg

1600

Standard bucket capacity

m3

0.7

Possible Bucket capacity

m3

0.7-1.0

Bucket width

mm

1900

Dumping height

mm

3200

Dumping reach

mm

800

Max. lifting height

mm

4030

Transmission Performance

Transmission type

name

Automatic

Control type

kw

Mechanical

Axle

type

wheel hub reduction

Engine Performance

Brand

name

YUNNEI 490 Turbo

Power

kw/ rpm

58

Rotate speed

rpm

2400

Number of cylinders

unit

4
