Guangxi Ligong Machinery Co.,Ltd

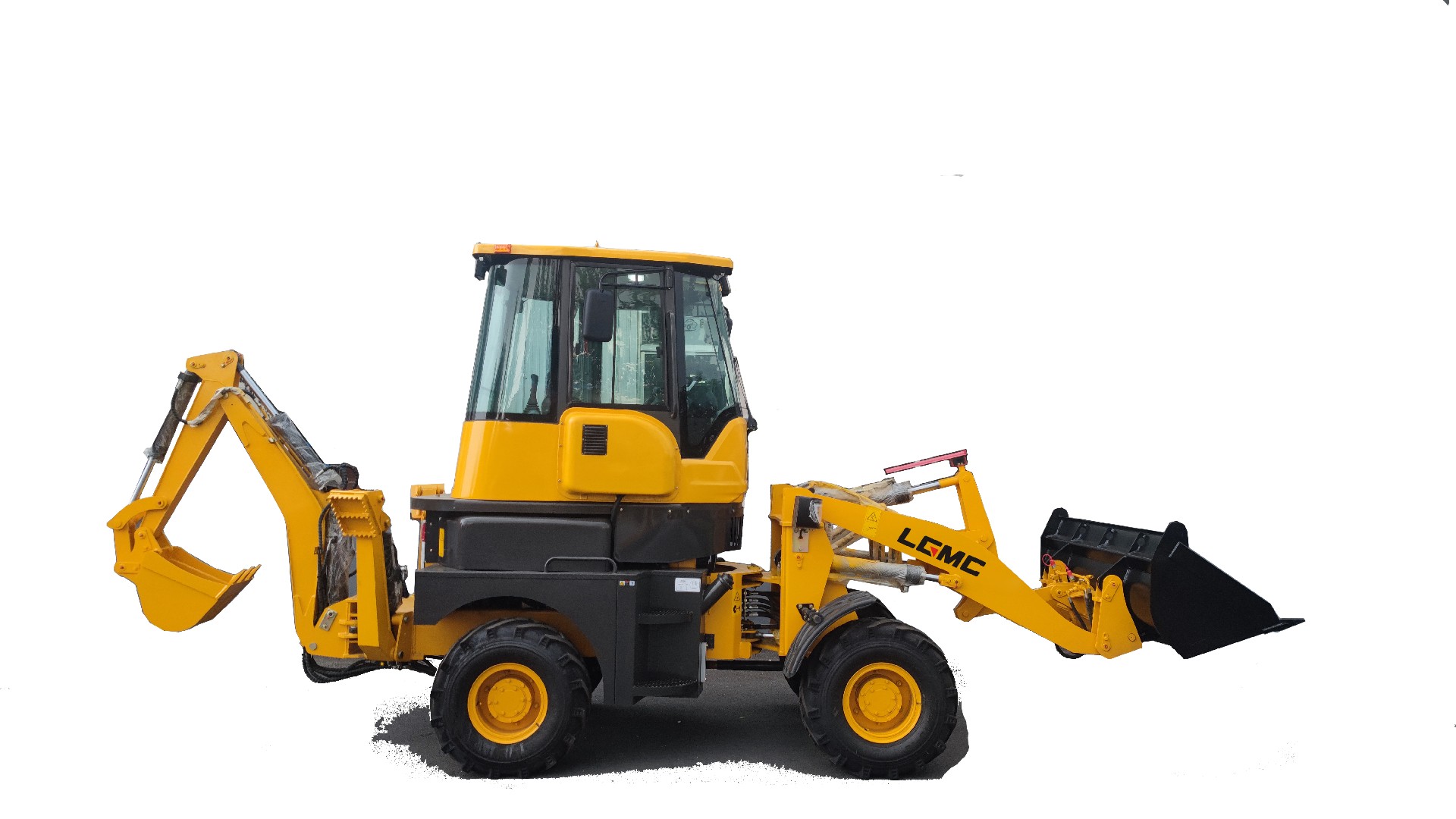

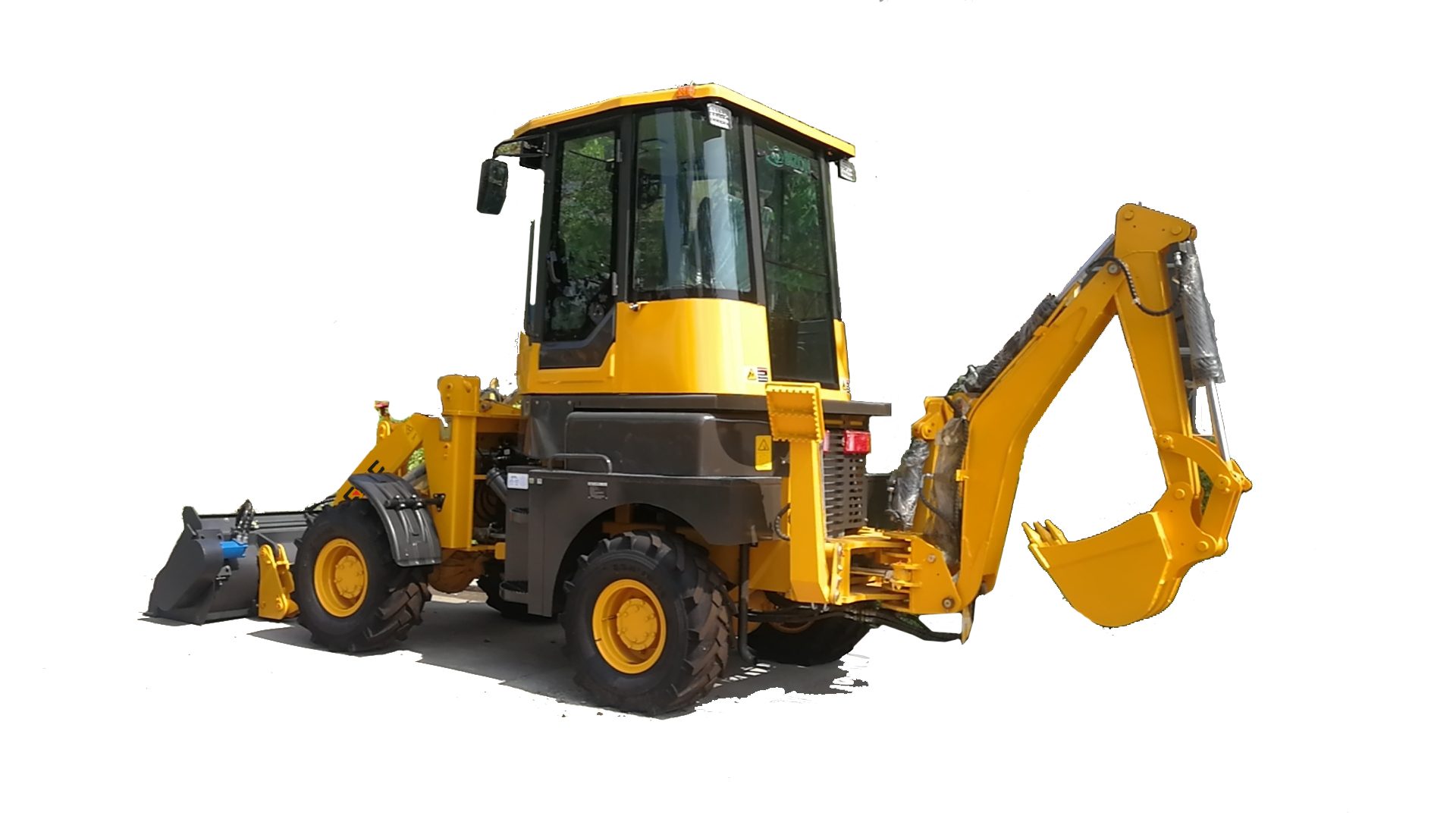

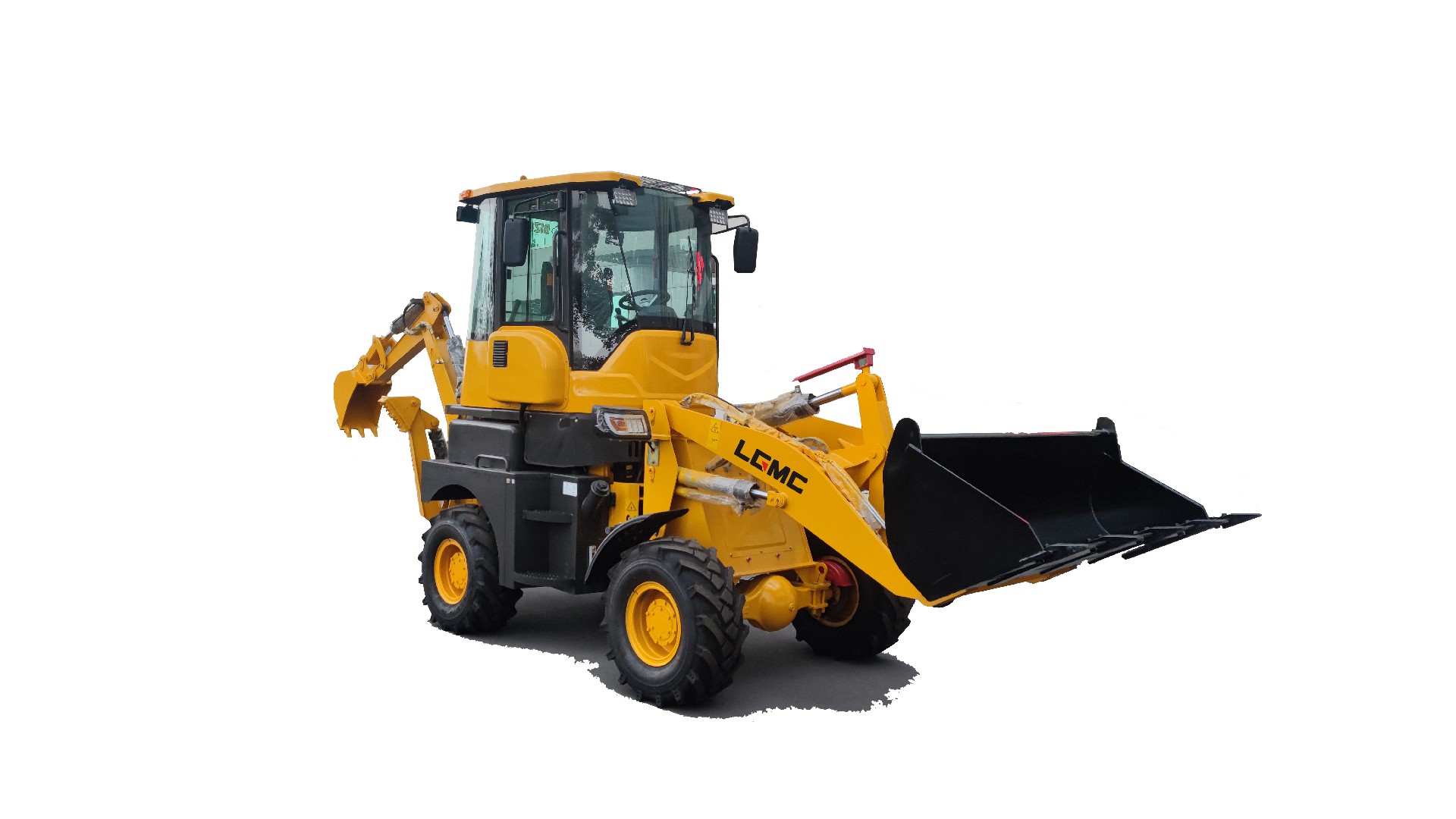

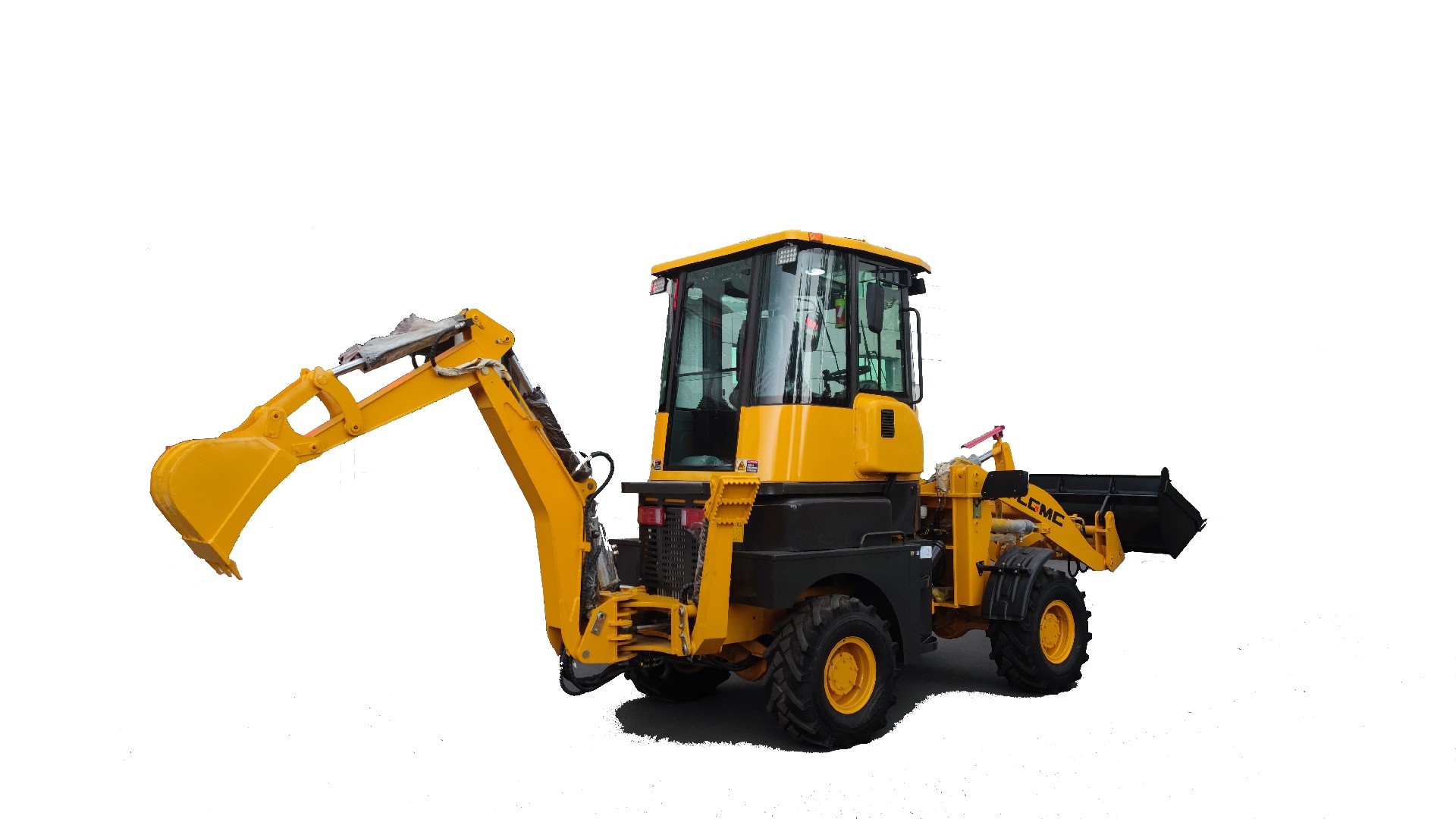

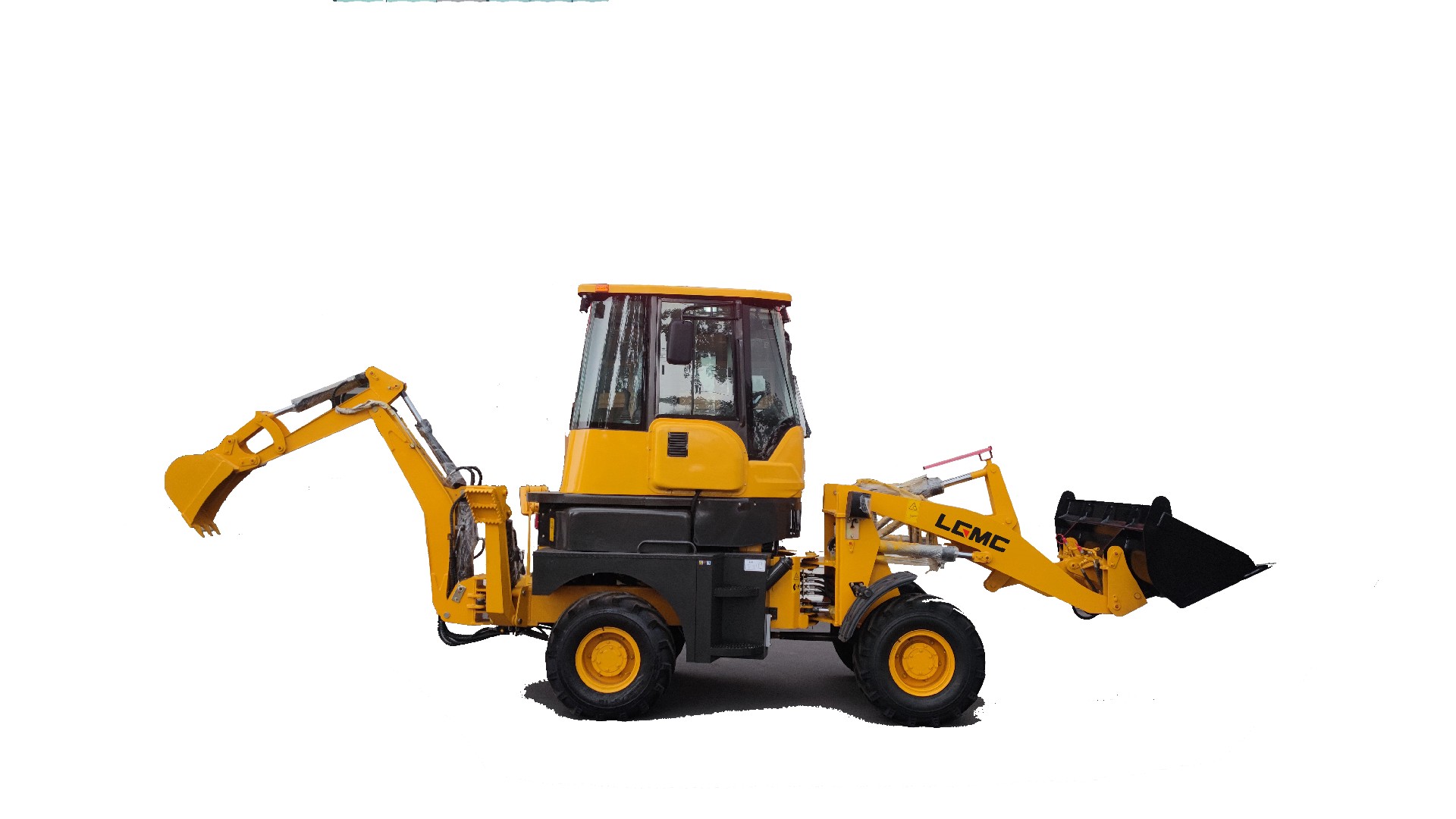

1. A backhoe loader, also called a loader backhoe, loader excavator, digger in layman's terms, or colloquially shortened to backhoe within the industry, is a heavy equipment vehicle that consists of a tractor-like unit fitted with a loader-style shovel/bucket on the front and a backhoe on the back.
2. Backhoe loaders are very common and can be used for a wide variety of tasks.
3. Their relatively small frame and precise control make backhoe-loaders very useful and common
| The Main Performance Parameter of Backhoe Loader LC388-II | |||
| 整机操作重量Overall Operating Weight | 8200KG | 轮边减速型式Final Reducer | 一级轮边减速Single Stage Final Reducer |
| 运输尺寸Transport Dimension | 额定桥载荷Rated Loader of Axle | 8/18.5t | |
| 长×宽×高mm L*W*H | 6100×2365×3752 | 传动系统Transmission System | |
| 轴距 Wheel base | 2200mm | 变矩器Torque Converter | |
| 最小离地间隙 Min. Ground Clearance | 300mm | 型号Model | YJ280 |
| 装载斗容 Bucket Capacity | 1.0m3 | 型式Type | 单级、单相三元件Single-stage Three Elements |
| 掘起力Breakout Force | 58KN | 最高效率Max. Efficiency | 84.40% |
| 装载举升能力Loading Lifting Capacity | 2500KG | 进口压力Inlet Pressure | 1.3－1.5Mpa |
| 铲斗卸载高度Bucket Dumping Height | 2742mm | 出口压力Outlet Pressure | 0.25－0.3Mpa |
| 铲斗卸载距离Bucket Dumping Distance | 925mm | 冷却方式Cooling Method | 油冷压力循环Oil-cooling Pressure Circulation |
| 铲挖深度 Digging Depth | 52mm | 变速箱Gearbox | |
| 反铲斗容Backhoe Capacity | 0.3 m3 | 型式Type | 定轴式动力换档Fixed Shaft Power Transmission |
| 最大挖掘深度Max. Digging Depth | 4082/4500mm | 离合器操纵油压Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
| 挖斗回转角Swing Angle of Excavator Grab | 190o | 档位数Gears | 前进2档，后退2档Two forward, Two reverse gears |
| 最大牵引力Max. Pulling Force | 65KN | 最高车速Max.Speed | 28Km/h |
| 发动机Engine | 轮胎Tyre | ||
| 型号Model | YC4A105Z-T20 | 规格Model | 14-17.5/19.5L-24 |
| 型式Type | 直列、直喷、四冲程、直喷燃烧室In Line Direct injection Four-Stroke and Injection Combustion Chamber | 前轮气压Pressure of Front wheel | 0.55Mpa |
| 气缸数-内径*行程Cylinder-Inside Diameter*Stroke | 4-108×132 | 后轮气压Pressure of Back Wheel | 0.223Mpa |
| 额定功率Rated Power | 75KW | 制动系统Brake System | |
| 额定转速Rated Speed | 2200r/min | 行车制动Service Brake | 气顶油钳盘制动Air Over Oil Caliper Brake |
| 最低燃油率Min. Fuel Consumption | ≤230g/km.h | 外置式External Type | |
| 最大扭矩Max.Torque | ≥400N.M | 自调节Self-regulation | |
| 排量Displacement | 4..837L | 自平衡Self-balance | |
| 转向系统Steering System | 驻车/紧急制动Emergency Brake | 操纵力实施制动Operation Power Implementing brake | |
| 转向器型号Model of Steering Device | BZZ5-250 | 手操纵力解除制动Manual Operation Power Terminating Brake | |
| 转向角Steering Angle | ±36 o | 液压系统Hydraulic System | |
| 最小转弯半径Min. turning radius | 6581mm | 挖斗挖掘力Digging Power of Excavator Grab | 60KN |
| 系统压力Pressure of the system | 12Mpa | 斗杆挖掘力Digging Power of Dipper | 44KN |
| 驱动桥Axle | 铲斗提升时间Bucket Lifting Time | 6.8S | |
| 生产厂家Manufacturer | 前桥：肥城车桥厂Feicheng Axle Factory | 铲斗下降时间Bucket Lowering Time | 3.1S |
| 后桥：肥城车桥厂Feicheng Axle Factory | |||
| 主传动型式Main Transmission Type | 双级减速式Double Reduction | 铲斗卸载时间Bucket Discharge Time | 2.0S |
