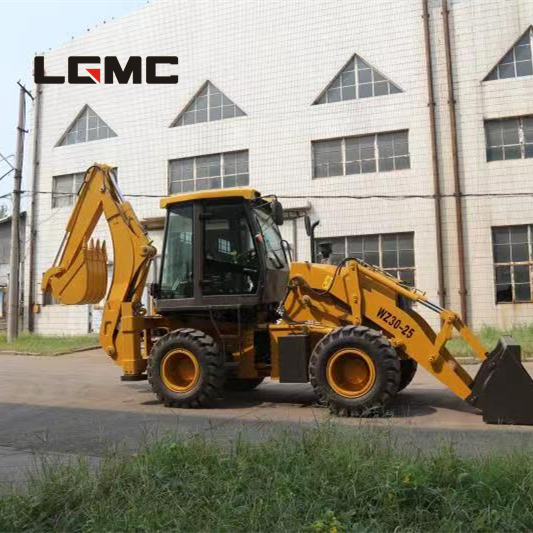

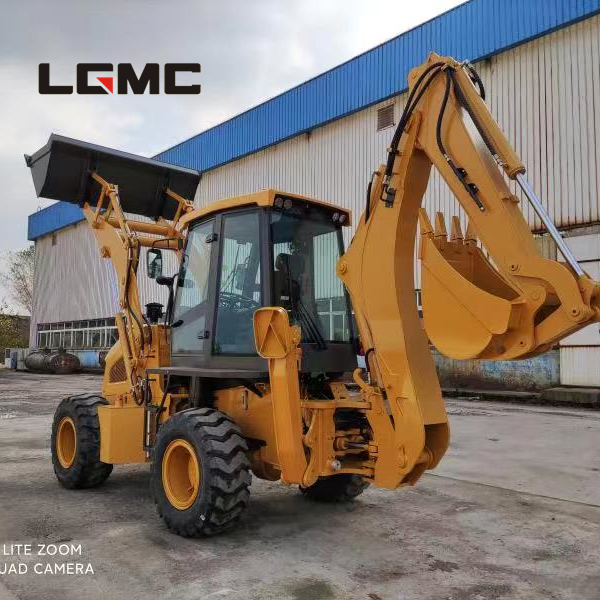

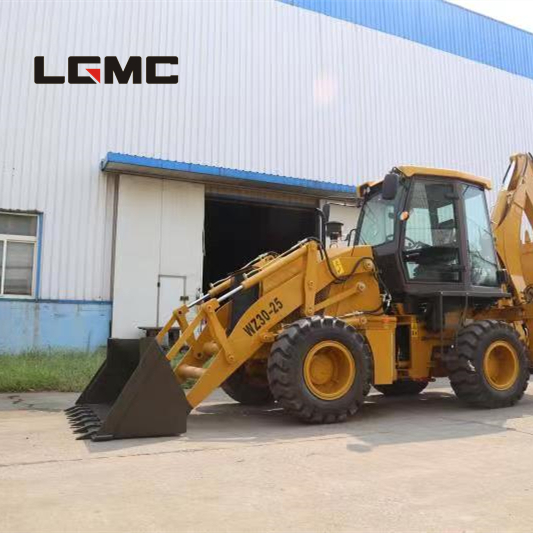

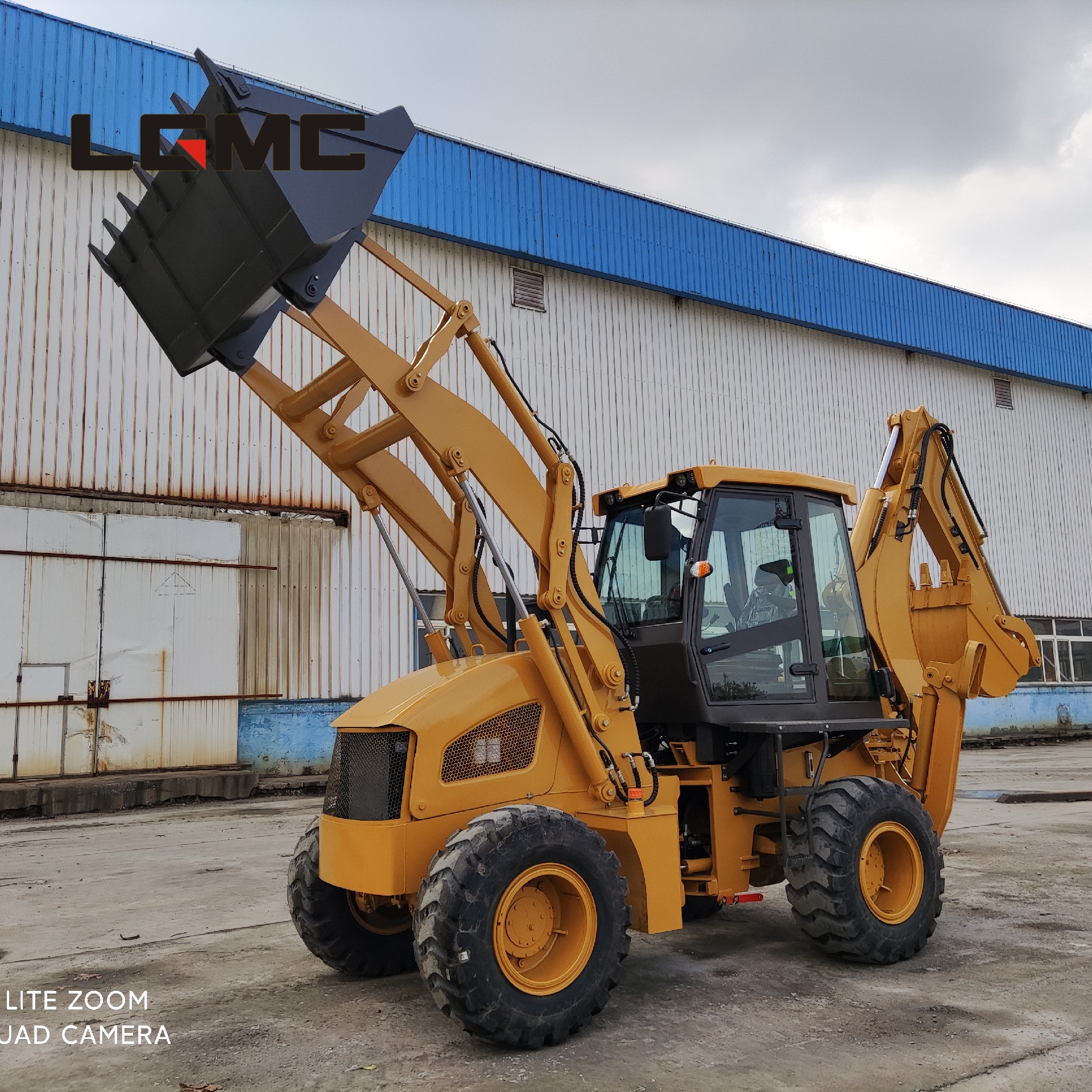

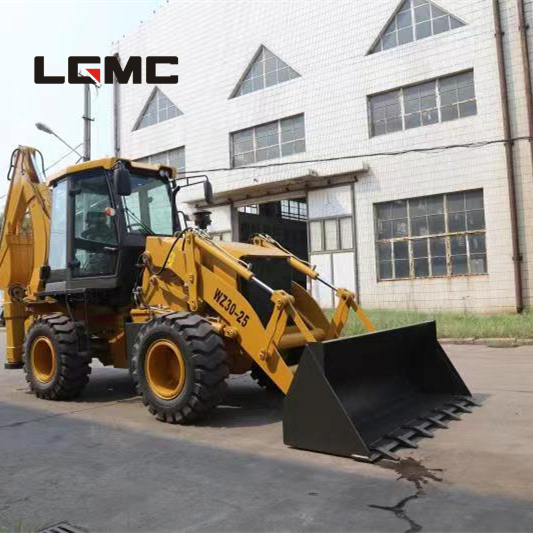

1. A backhoe loader, also called a loader backhoe, loader excavator, digger in layman's terms, or colloquially shortened to backhoe within the industry, is a heavy equipment vehicle that consists of a tractor-like unit fitted with a loader-style shovel/bucket on the front and a backhoe on the back.
2. Backhoe loaders are very common and can be used for a wide variety of tasks.
3. Their relatively small frame and precise control make backhoe-loaders very useful and common
| LC15-10 PARAMETER | |
| ITEM项目 | PARAMETER参数 |
| Max.Excavating Depth挖掘深度 | 2000mm |
| Max.Excavating Height挖掘高度 | 5800mm |
| Max.Excavating Radius挖掘半径 | 3200mm |
| Backhoe Bucket Capacity挖斗容量 | 0.1m³ |
| Front Bucket Capacity前铲斗容量 | 0.6m³ |
| Max. Hauling Force最大牵引力 | 23KN |
| Max. Swing Angle of Boom | 180° |
| 挖臂旋转角度 | |
| Max.Dumping Height卸载高度 | 2380mm |
| Min. Turning Radius转弯半径 | 3750mm |
| Max.Dumping Distance卸载距离 | 1000mm |
| Ground Clearance离地间隙 | 230mm |
| Loading Mass最大载重 | 1200kg |
| Drive驱动方式 | 4 Wheel Drive四轮驱动 |
| Grade ability爬坡能力 | 25° |
| Lifting Time of Movable Arm举升时间 | 4.5s |
| Falling Time of Movable Arm卸料时间 | 3s |
| Summational Time三项和时间 | 10s |
| Max. Breakout Force掘起力 | 20kn |
| Engine Brand Model发动机品牌 | Yunnei engine（Standard)云内 |
| Number of Cylinder缸数 | 4 Cylinder四缸 |
| Electric System Voltage | 24V |
| Rated Power功率 | 37kw（50HP） |
| Rated Revolution转速 | 2400r/min |
| Tyre Model轮胎 | 20.5/70-16 |
| Maximum Forward Speed最大时速 | 28km/ hour |
| Working Pressure工作压力 | 20MPa |
| Total Weight重量 | 3600kg |
| Axle track轴距 | 1975mm |
| Wheelbase轮距 | 1100mm |
| Overall Dimension(L×W×H)尺寸 | 5900×1860×2960mm |
