Guangxi Ligong Machinery Co.,Ltd

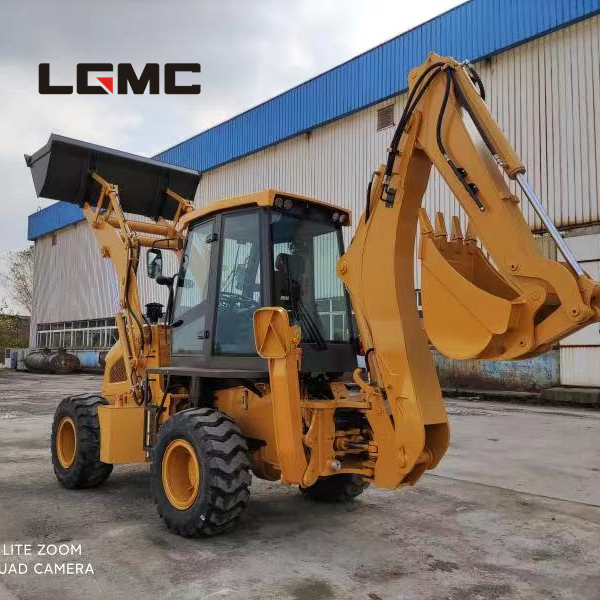

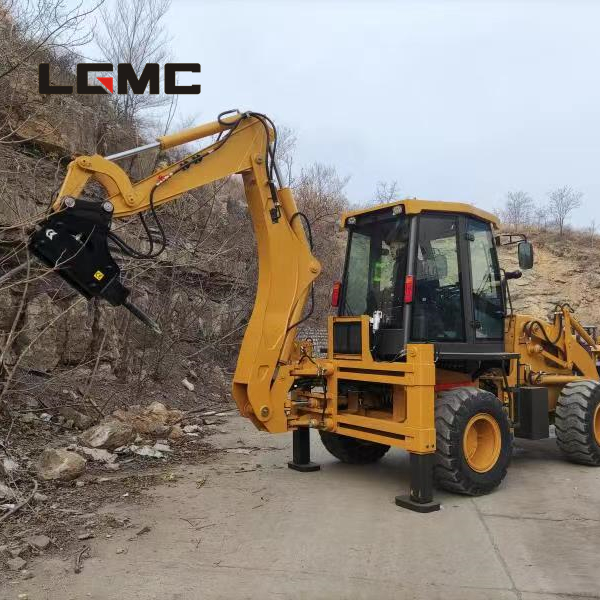

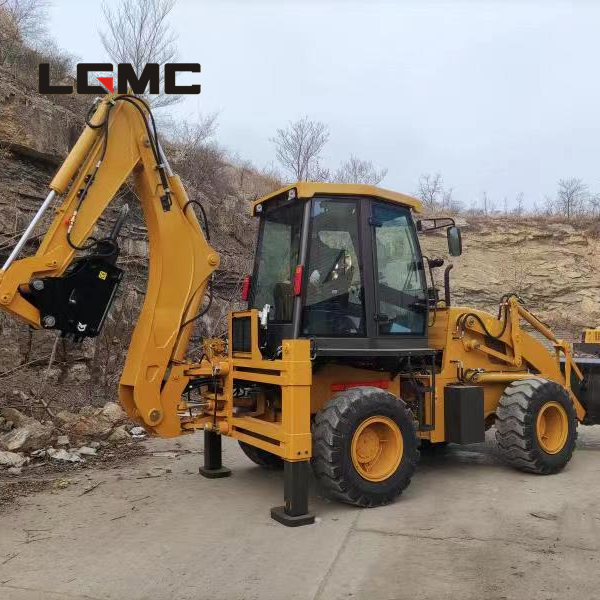

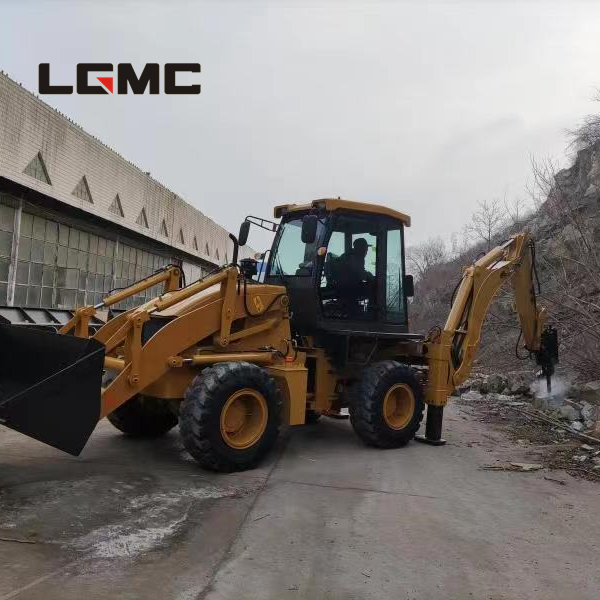

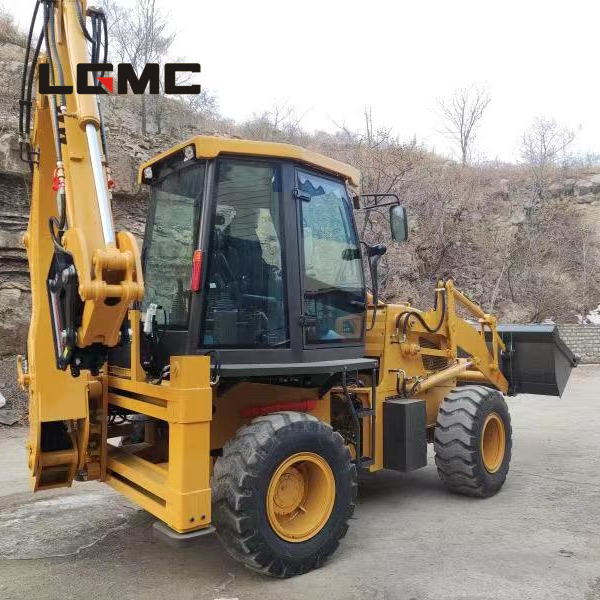

1. A backhoe loader, also called a loader backhoe, loader excavator, digger in layman's terms, or colloquially shortened to backhoe within the industry, is a heavy equipment vehicle that consists of a tractor-like unit fitted with a loader-style shovel/bucket on the front and a backhoe on the back.
2. Backhoe loaders are very common and can be used for a wide variety of tasks.
3. Their relatively small frame and precise control make backhoe-loaders very useful and common
| The Performance Parameter of Backhoe Loader LC25-18 | |
| 整机操作重量 | 4200KG |
| Overall Operating Weight | |
| 运输尺寸Transport Dimension | |
| 长×宽×高mm L*W*H | 6800x2100x2980mm |
| 最小离地间隙 | 300mm |
| Min. Ground Clearance | |
| 装载斗容 Bucket Capacity | 0.8m3 |
| 装载举升能力 | 1800KG |
| Loading Lifting Capacity | |
| 铲斗卸载高度 | 2900mm |
| Bucket Dumping Height | |
| 反铲斗容 | 0.18m3 |
| Backhoe Capacity（Width） | |
| 最大挖掘深度 | 2700mm |
| Max. Digging Depth | |
| Axle track轴距 | 2150mm |
| Wheelbase轮距 | 1550mm |
| 发动机Engine | |
| 型号Model | YUNNEI YN27GBZ Turbo |
| 型式Type | 单列、直喷、四冲程、水冷 |
| In Line，Direct injection，Four-Stroke，Water Cooling | |
| 额定功率Rated Power | 58KW |
| 额定转速Rated Speed | 2400r/min |
| 可选发动机Optional engine | XINCHAI EURO3 or 5/YANMAR EPA3/CUMMINS EPA4 |
| 转向系统Steering System | |
| 转向角Steering Angle | ±35 o |
| 最小转弯半径 | 4800mm |
| Min. turning radius | |
| 系统压力 | 12Mpa |
| Pressure of the system | |
| 驱动桥Axle | |
| 型号Model | Wheel hub reducer drive axle轮边桥 |
| 驱动方式Drive type | Four wheel drive四轮驱动 |
| 传动系统Transmission System | |
| 变矩器Torque Converter | |
| 型号Model | YJ265 |
| 冷却方式Cooling Method | 油冷压力循环Oil-cooling Pressure Circulation |
| 变速箱Gearbox | |
| 型式Type | 动力换档Power Transmission |
| 档位数Gears | 前进4档，后退4档Two Gears Ahead, Two Gears Astern |
| 最高车速Max.Speed | 33Km/h |
| 轮胎Tyre | |
| 规格Model | 23.5/70-16 |
| 前轮气压 | 0.22 Mpa |
| Pressure of Front wheel | |
| 后轮气压 | 0.22 Mpa |
| Pressure of Back Wheel | |
| 制动系统Brake System | |
| 行车制动Service Brake | 气顶油钳盘制动Air Over Oil Caliper Brake |
| 外置式External Type | |
| 自调节Self-regulation | |
| 自平衡Self-balance | |
| 驻车/紧急制动 | 手动实施制动Operation Power Implementing brake |
| Emergency Brake | 手动解除制动Manual Operation Power Terminating Brake |
| 液压系统Hydraulic System | |
| 液压系统压力 | 22Mpa |
| Pressure of Hydraulic System | |
| 标配 | 前铲带铲斗，后挖带挖斗，豪华内饰驾驶室，暖风，风扇，豪华可调式旋转座椅，可调式仪表盘，前铲机械先导操作，后挖液压先导操作，驾驶室带推拉窗，驾驶室可前翻（便于维修），云内58KW发动机，23.5/70-16轮胎，265变速箱，轮边桥，A形支腿带锁止，后挖摇摆带缓冲功能。 |
| Front shovel with bucket, rear digging belt bucket, deluxe interior cab, warm air, fan, deluxe adjustable swivel seat, adjustable instrument panel, front shovel mechanical pilot operation, rear digging hydraulic pilot operation, cab with sliding window, cab can be turned forward (easy to service), Cloud 58KW engine, 23.5\/70-16 tires, 265 gearbox, wheelside bridge, A-shaped outrigger with locking, rear digging swing with cushioning function. | |
