Home >> Products >> Construction Machinery >> Backhoe Loader
Guangxi Ligong Machinery Co.,Ltd

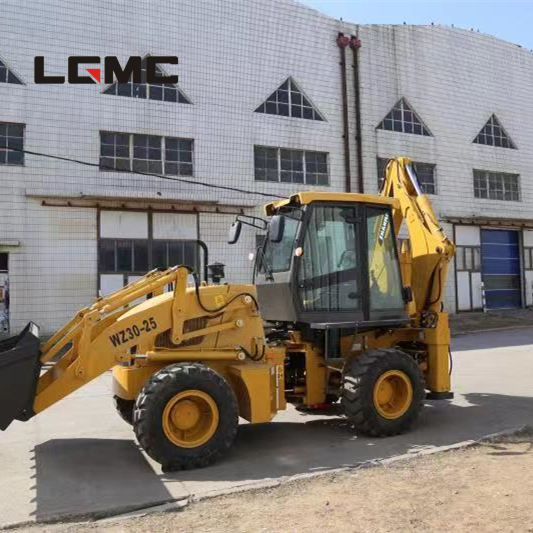

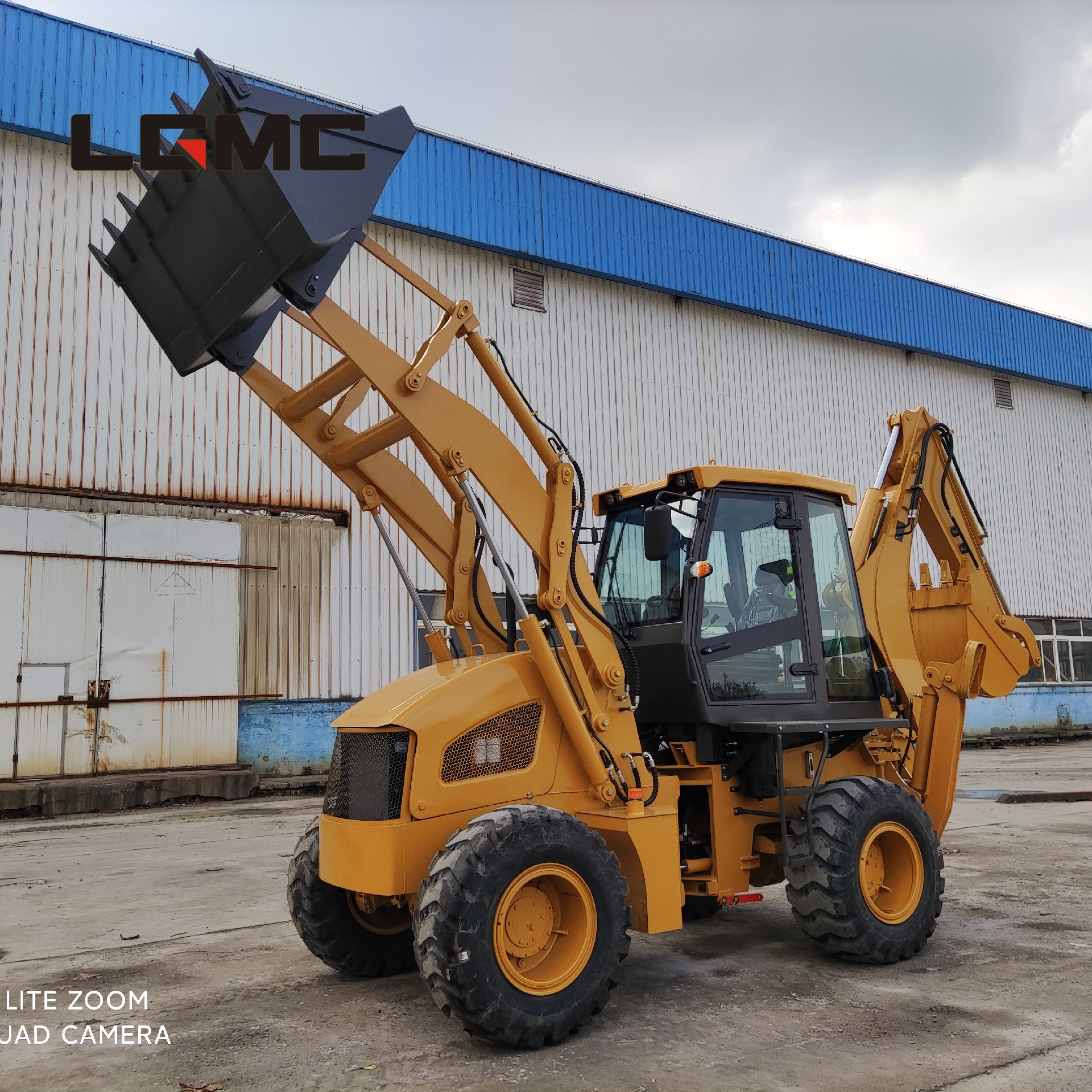

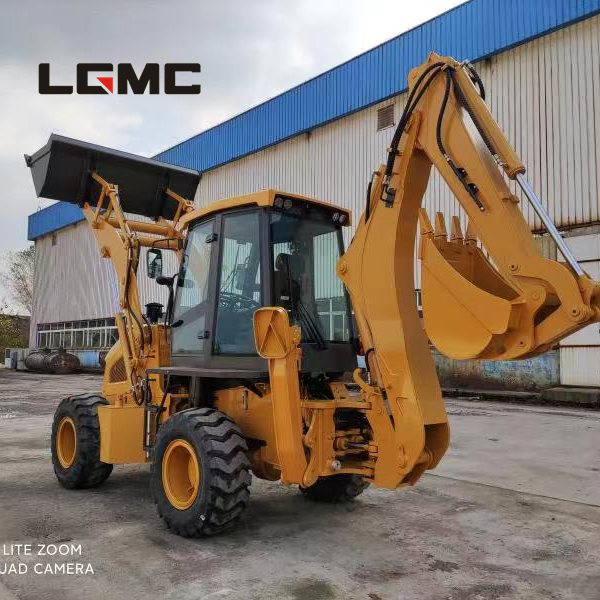

1. A backhoe loader, also called a loader backhoe, loader excavator, digger in layman's terms, or colloquially shortened to backhoe within the industry, is a heavy equipment vehicle that consists of a tractor-like unit fitted with a loader-style shovel/bucket on the front and a backhoe on the back.
2. Backhoe loaders are very common and can be used for a wide variety of tasks.
3. Their relatively small frame and precise control make backhoe-loaders very useful and common
| The Performance Parameter of Backhoe Loader LC40-28 | |
| 整机操作重量 | 7000KG |
| Overall Operating Weight | |
| 运输尺寸Transport Dimension | |
| 长×宽×高mm L*W*H | 7800×2100×3200 |
| 最小离地间隙 | 350mm |
| Min. Ground Clearance | |
| 装载斗容 Bucket Capacity | 1.3m3 |
| 掘起力Breakout Force | 38KN |
| 装载举升能力 | 2800KG |
| Loading Lifting Capacity | |
| 铲斗卸载高度 | 3600mm |
| Bucket Dumping Height | |
| 铲斗卸载距离 | 1062mm |
| Bucket Dumping Distance | |
| 铲挖深度 Digging Depth | 52mm |
| 反铲斗容 | 0.35m3(620mm) |
| Backhoe Capacity（Width） | |
| 最大挖掘深度 | 4100mm |
| Max. Digging Depth | |
| 挖斗回转角 | 190o |
| Swing Angle of backhoe | |
| 最大牵引力 | 39KN |
| Max. Pulling Force | |
| Wheel base轴距 | 2480mm |
| Wheel tread轮距 | 1660mm |
| 发动机Engine | |
| 型号Model | YTO 4A2Z-G93Q-1 |
| 型式Type | 单列、直喷、四冲程、水冷 |
| In Line，Direct injection，Four-Stroke，Water Cooling | |
| 额定功率Rated Power | 85KW |
| 转向系统Steering System | |
| 转向角Steering Angle | ±36 o |
| 系统压力 | 12Mpa |
| Pressure of the system | |
| 驱动桥Axle | |
| 型号Model | 大轮边桥Big Wheel Hub Reducer |
| 轮边减速型式Final Reducer | 一级轮边减速Single Stage Final Reducer |
| 传动系统Transmission System | |
| 变矩器Torque Converter | |
| 型号Model | YJ280 |
| 型式Type | 单级、单相三元件Single-stage Three Elements |
| 冷却方式Cooling Method | 油冷压力循环Oil-cooling Pressure Circulation |
| 变速箱Gearbox | |
| 型式Type | 定轴式动力换档Fixed Shaft Power Transmission |
| 可选档位数Optional Gears | 前进4档，后退4档Four Gears Ahead, Four Gears Astern |
| 最高车速Max.Speed | 40Km/h |
| 轮胎Tyre | |
| 规格Model | 16/70-24 |
| 前轮气压 | 0.22 Mpa |
| Pressure of Front wheel | |
| 后轮气压 | 0.22 Mpa |
| Pressure of Back Wheel | |
| 制动系统Brake System | |
| 行车制动Service Brake | 气顶油钳盘制动Air Over Oil Caliper Brake |
| 外置式External Type | |
| 自调节Self-regulation | |
| 自平衡Self-balance | |
| 驻车/紧急制动 | 操纵力实施制动Operation Power Implementing brake |
| Emergency Brake | 手操纵力解除制动Manual Operation Power Terminating Brake |
| 液压系统Hydraulic System | |
| 液压系统压力 | 22Mpa |
| Pressure of Hydraulic System | |
| 标配 | 前铲带铲斗，后挖带挖斗，豪华带内饰驾驶室，暖风，风扇，豪华可调式旋转座椅，可调式仪表盘，前铲后挖都是液压先导操作，驾驶室带推拉窗，驾驶室可前翻（便于维修），一拖85KW发动机，16/70-24轮胎，280变速箱，双联泵，加重大轮边桥，A形支腿带锁止，后挖摇摆带缓冲功能。 |
| Front shovel with bucket, rear digging belt bucket, deluxe with interior cab, warm air, fan, deluxe adjustable rotating seat, adjustable instrument panel, front shovel and rear digging are hydraulic pilot operation, cab with sliding window, cab can be turned forward (easy to maintain), one tow 85KW engine, 16\/70-24 tires, 280 gearbox, twin pump, plus major wheel side axle, A-shaped leg with locking, rear digging swing with cushioning function. | |
