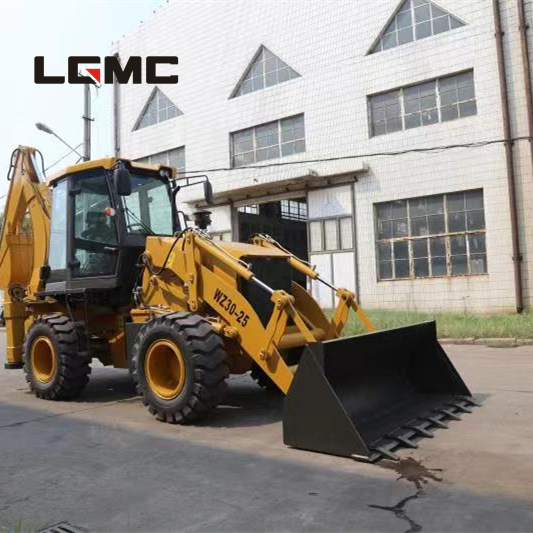

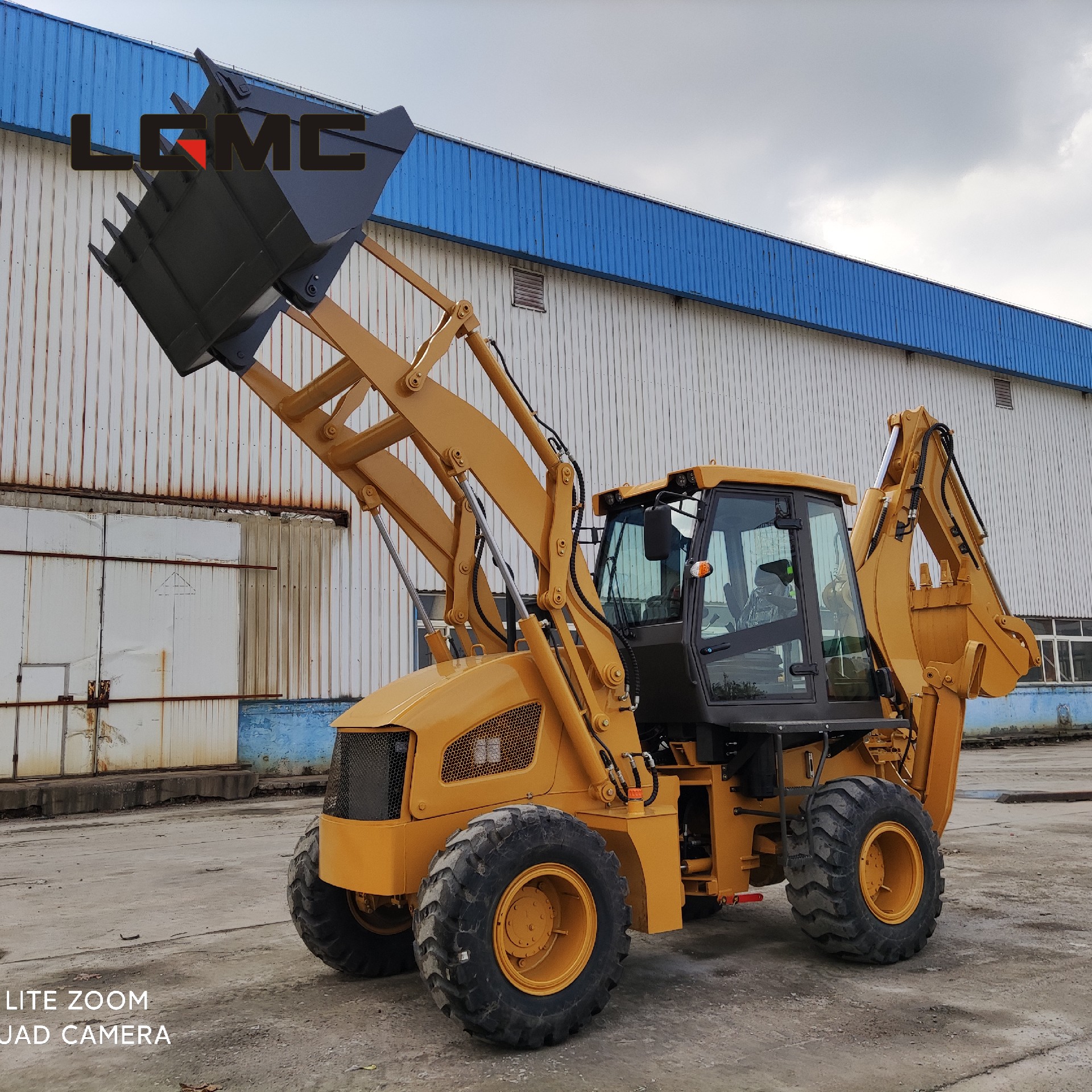

1. A backhoe loader, also called a loader backhoe, loader excavator, digger in layman's terms, or colloquially shortened to backhoe within the industry, is a heavy equipment vehicle that consists of a tractor-like unit fitted with a loader-style shovel/bucket on the front and a backhoe on the back.
2. Backhoe loaders are very common and can be used for a wide variety of tasks.
3. Their relatively small frame and precise control make backhoe-loaders very useful and common
| The Performance Parameter of Backhoe Loader LC40-28 | |
| 整机操作重量 | 8000KG |
| Overall Operating Weight | |
| 运输尺寸Transport Dimension | |
| 长×宽×高mm L*W*H | 7600×2260×2890mm |
| 轴距 Wheel base | 2250mm |
| 最小离地间隙 | 300mm |
| Min. Ground Clearance | |
| 装载斗容 Bucket Capacity | 1.3m3 |
| 掘起力Breakout Force | 38KN |
| 装载举升能力 | 2800KG |
| Loading Lifting Capacity | |
| 铲斗卸载高度 | 2800mm |
| Bucket Dumping Height | |
| 铲斗卸载距离 | 1062mm |
| Bucket Dumping Distance | |
| 铲挖深度 Digging Depth | 52mm |
| 反铲斗容 | 0.35m3(620mm) |
| Backhoe Capacity（Width） | |
| 最大挖掘深度 | 4100mm |
| Max. Digging Depth | |
| 可选挖深 | 5160mm |
| Optional Digging Depth | （挖臂带伸缩） |
| 挖斗回转角 | 190o |
| Swing Angle of backhoe | |
| 最大牵引力 | 39KN |
| Max. Pulling Force | |
| 发动机Engine | |
| 型号Model | YTO 4A2Z-G93Q-1 |
| 型式Type | 单列、直喷、四冲程、水冷 |
| In Line，Direct injection，Four-Stroke，Water Cooling | |
| 额定功率Rated Power | 85KW |
| 转向系统Steering System | |
| 转向角Steering Angle | ±36 o |
| 最小转弯半径 | 6581mm |
| Min. turning radius | |
| 系统压力 | 12Mpa |
| Pressure of the system | |
| 驱动桥Axle | |
| 品牌Brand | 肥城云宇桥FEICHENG YUNYU |
| 主传动类型 | 双减速 |
| Main Transmission Type | Double Reduction |
| 轮边减速型式Final Reducer | 一级轮边减速Single Stage Final Reducer |
| 额定载重 | 4/18.5t |
| Rated Loader of Axle | |
| 传动系统Transmission System | |
| 变矩器Torque Converter | |
| 型号Model | YJ280 |
| 型式Type | 单级、单相三元件Single-stage Three Elements |
| 冷却方式Cooling Method | 油冷压力循环Oil-cooling Pressure Circulation |
| 变速箱Gearbox | |
| 型式Type | 定轴式动力换档Fixed Shaft Power Transmission |
| 档位数Gears | 前进2档，后退2档Two Gears Ahead, Two Gears Astern |
| 最高车速Max.Speed | 30Km/h |
| 轮胎Tyre | |
| 规格Model | （F）14-17.5前轮 |
| （R）19.5L-24后轮 | |
| 前轮气压 | 0.22 Mpa |
| Pressure of Front wheel | |
| 后轮气压 | 0.22 Mpa |
| Pressure of Back Wheel | |
| 制动系统Brake System | |
| 行车制动Service Brake | 气顶油钳盘制动Air Over Oil Caliper Brake |
| 外置式External Type | |
| 自调节Self-regulation | |
| 自平衡Self-balance | |
| 驻车/紧急制动 | 操纵力实施制动Operation Power Implementing brake |
| Emergency Brake | 手操纵力解除制动Manual Operation Power Terminating Brake |
| 液压系统Hydraulic System | |
| 液压系统压力 | 22Mpa |
| Pressure of Hydraulic System | |
| 挖斗挖掘力 | 46.5KN |
| Digging Power of Excavator Grab | |
| 铲斗掘起力 | 31KN |
| Digging Power of Dipper | |
| 铲斗提升时间 | 5.4S |
| Bucket Lifting Time | |
| 铲斗下降时间 | 3.1S |
| Bucket Lowering Time | |
| 铲斗卸料时间 | 2.0S |
| Bucket Discharge Time | |
| 标配 | 前铲带铲斗，后挖带挖斗，豪华带内饰驾驶室，暖风，风扇，豪华可调式旋转座椅，可调式仪表盘，液压先导操作，一拖85KW发动机，14-17.5真空前轮胎，19.5L-24真空后轮胎，特制280变速箱，肥城云宇桥，A形或者H形支腿。 |
| Front shovel with bucket, rear digging belt bucket, deluxe with interior cab, warm air, fan, deluxe adjustable swivel seat, adjustable dashboard, hydraulic pilot operation, one-to-drag 85KW engine, 14-17.5 vacuum front tire, 19.5L-24 vacuum rear tire, special 280 gearbox, Feicheng Yunyu bridge, A-shaped or H-shaped outrigger. | |
