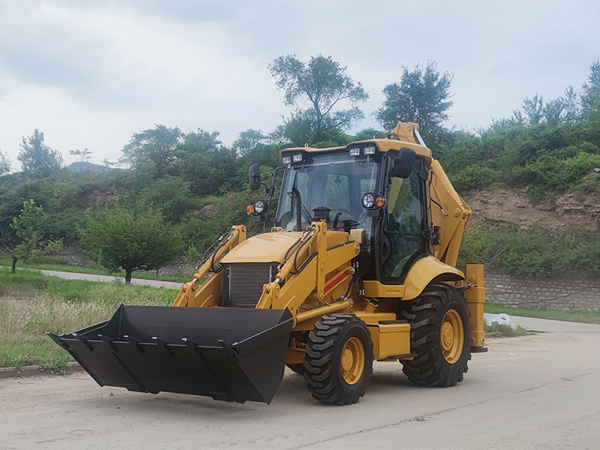

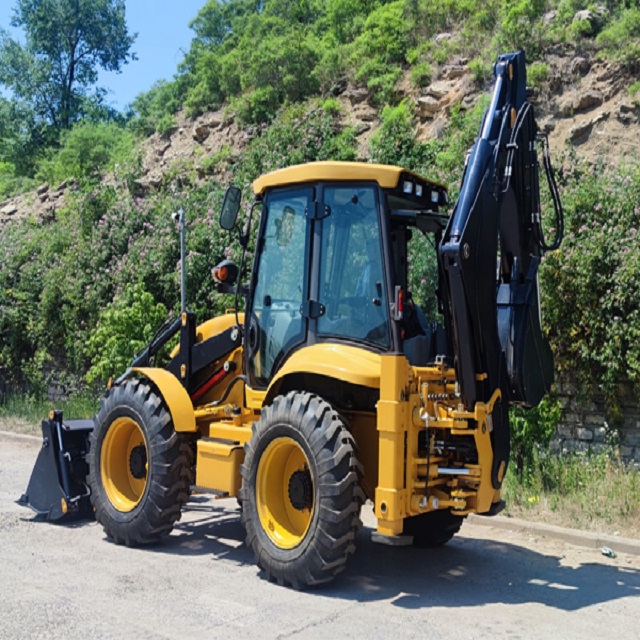

LC388H LB388H backhoe loader Graber travling model for Russia

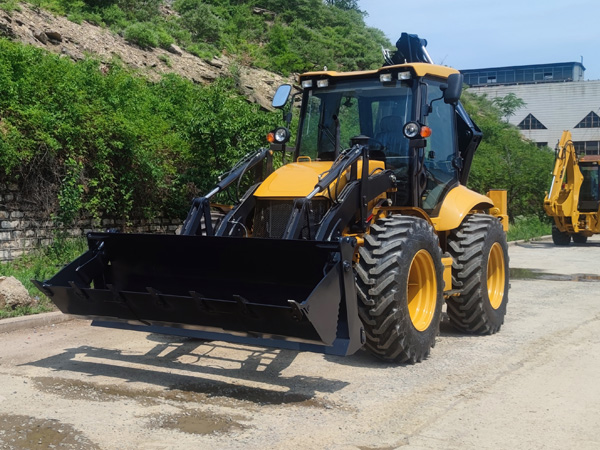

LC388H LB388H backhoe loader Graber travling model for Russia

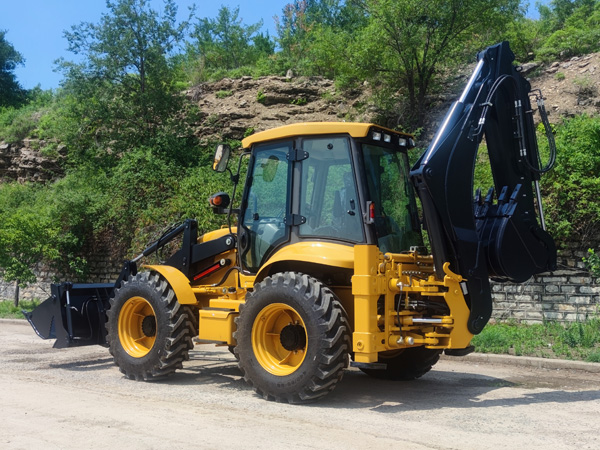

LC388H LB388H backhoe loader Graber travling model for Russia

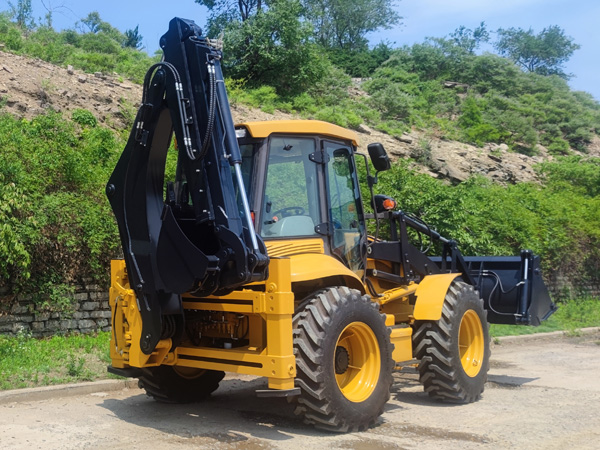

LC388H LB388H backhoe loader Graber travling model for Russia

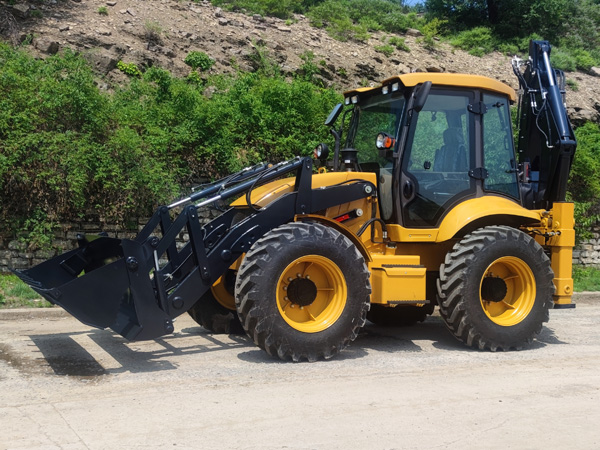

LC388H LB388H backhoe loader Graber travling model for Russia
LC388H LB388H backhoe loader Graber travling model for Russia

LC388H LB388H backhoe loader Graber travling model for Russia

388H(4CX)挖掘装载机主要结构特点和采用的先进技术

The main structural features and advanced technology used in the

388H(4TX)  backhoe loader

四轮转向,蟹型行走


>
<

Detail Information


  Overall    Dimension 总尺寸

1

Length(with    bucket on ground)整机总长(铲斗放置地面)

6450±80mm

2

Overall    width(at    stabilizer )整机总宽(轮胎外沿)

2490±10mm

3

Load Bucket    width铲斗宽度

2490±10mm

4

Height(To    the top of the cab)整机高度(到驾驶室顶)

3120±10mm

5

Height(To    the top of the digging pole)整机高度(到挖掘臂顶部)

3940 ±20mm

6

Wheel base轴距

2335±10 mm

7

Back wheel    Tread轮距

2139 ±10mm

 Main Loading Technical Specification装载主要技术参数

1

Rated load额定载重量

2500KG

2

Operating    weight操作重量

9120kg

3

Rated bucket    capacity额定斗容

1.2m³

4

Max. dump    clearance最大卸载高度

3050±50 mm

5

Dump reach卸载距离

870±20 mm

             6

Outside of    bucket转弯半径(铲斗外沿)

6420±100mm

  Main    Digging Technical Specification挖掘主要技术参数

1

Rated    digging bucket capacity额定挖掘斗斗容

0.3m³

2

Max. digging    depth最大挖掘深度

3820±20 mm  4880With telescopic arm

3

Max. digging    radius最大挖掘半径

5345±20mm

4

Max. dumping    height 最大卸载高度

3740±20mm

5

Max.    digging  force最大挖掘力

kgf

6

Max. Digging Height最大挖掘高度

5470 ±20mm

7

最大挖掘半径时提升力

1220kg

8

最大挖掘深度(伸缩臂)

4970±20 mm

9

最大装载高度(伸缩臂)

4983±20mm

10

最大挖掘高度(伸缩臂)

6680±20mm

  Diesel engine发动机

1

Model型号

YC4A105Z-T20

2

Type形式

水冷

3

Rated output额定功率

75 (kW)

4

Total    exhaust of cylinder排气量

4.8(L)

5

Rated speed额定转速

2200(r/min)

6

Max. Torque最大扭矩

400(N.M)

 Transmission System传动系统

1

Torque    Converter液力变矩器

Model型号

315

Cooling type    冷却方式

Pressure oil circulating压力油循环

2

Transmission    case变速箱

Model型号

15

Type形式

Synchromesh mechanical shift机械操纵液力同步换档

3

Axle and    Tire桥

Model型号

WZL100

4

Gear shift    position档位

4 F、 4 R前四后四档位

5

 速度(F/R)km/h

     F1,5km/h;F2,10km/h;

     F3,18km/h;F进4,32km/h;

     R1,5km/h;R2,10km/h;

     R3,18km/h;R4,32km/h;

6

Size of tire轮胎型号

                                        16.9-28

The hydraulic system液压系统

1

Working pump discharge工作泵排量

63ml/r

2

Working pump pressure工作泵压力

20Mpa

3

Type of steering gear转向器型号

BZZ-500

Excavating equipment (crushing    hammer)挖掘属具(破碎锤)

1

Drill rod diameter钎杆直径  mm

68-70

2

Pressure of work工作压力  Mpa

11-14

3

The impact frequency冲击频率

500-900

4

Flow range流量范围  L/min

25-45

5

The kinetic energy动能      KN

49

  Oil Capacity加油量

1

The hydraulic    oil tank液压油箱

125

2

Diesel fuel tank柴 油 箱

125

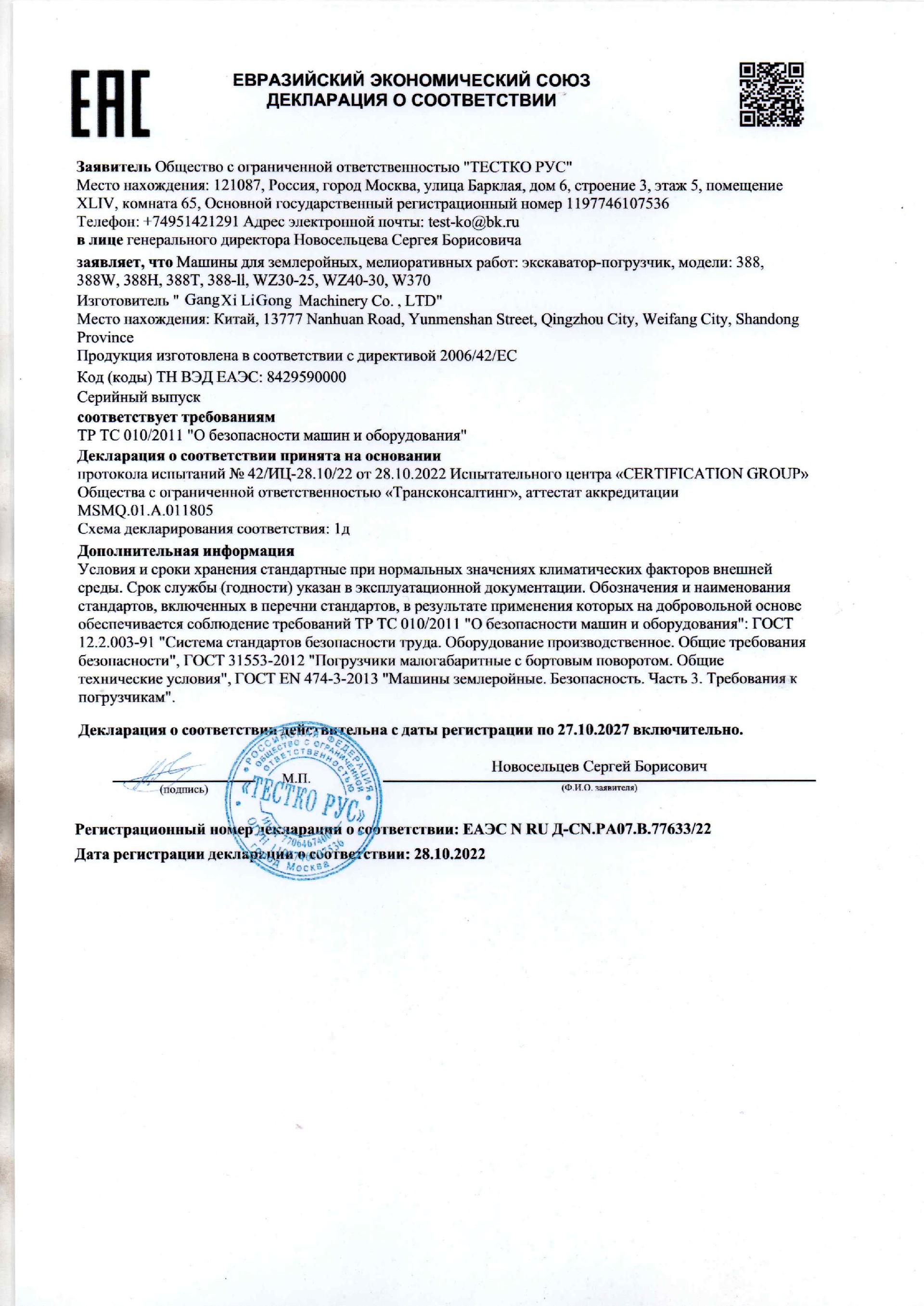

广西力工 EAC 证书.jpg
