Product Details

Guangxi Ligong Machinery Co.,Ltd

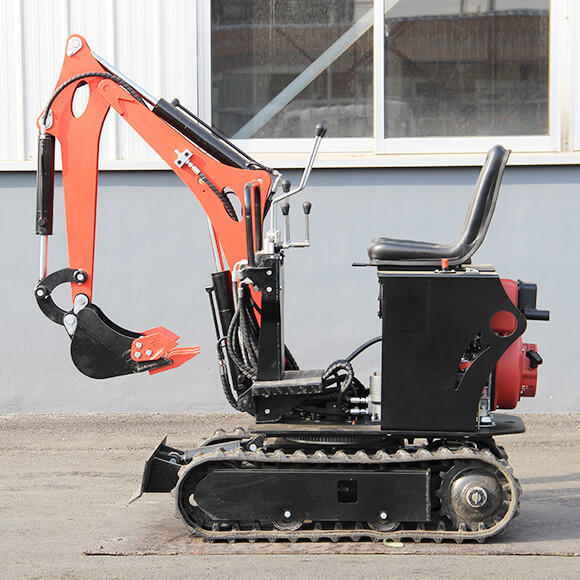

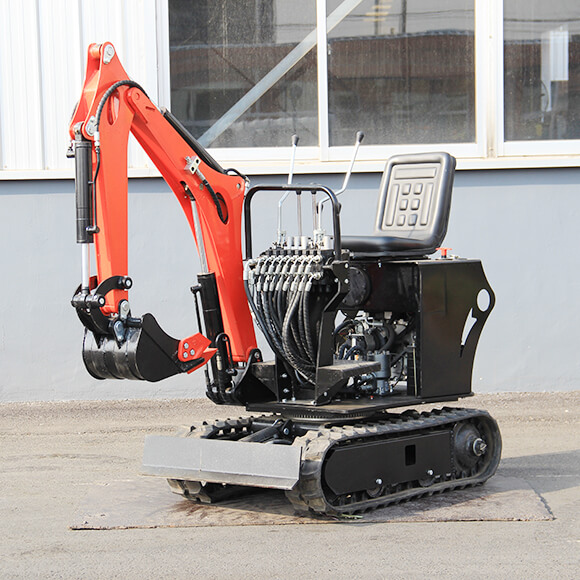

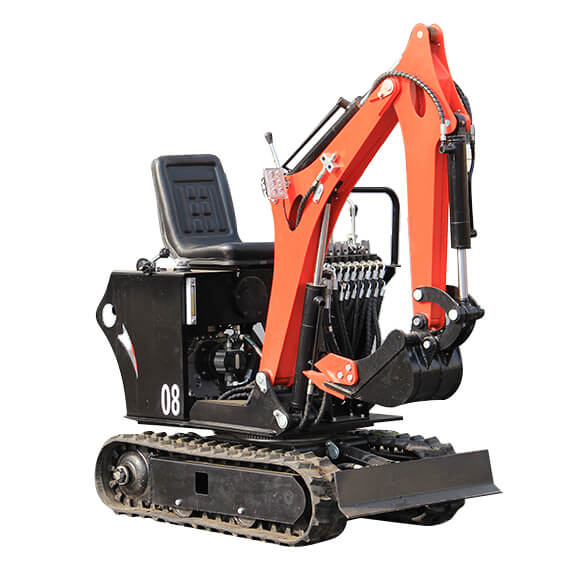

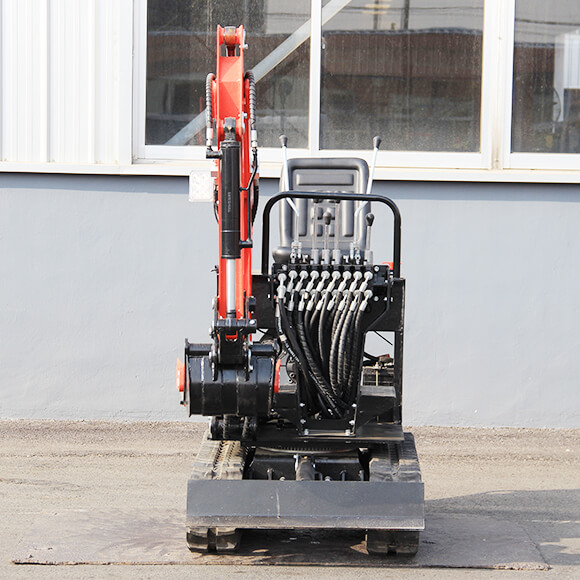

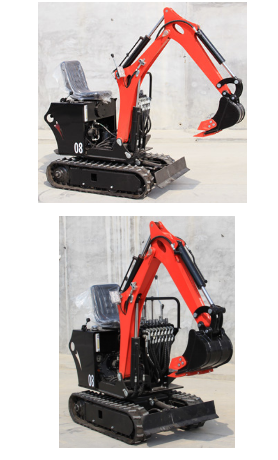

LC08E

1.The computer optimization design has the function of high level automatic leveling and the aperation

efficiency is improved significantly.

2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio

matches reasonably and reduces power consumption.

3.Load sensing is full hydraulic priority,stable,reliable and energy saving.

4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.

QUOTATION LIST
Overall performance	Unit	Value	Pictures
Excavator model		LC08E

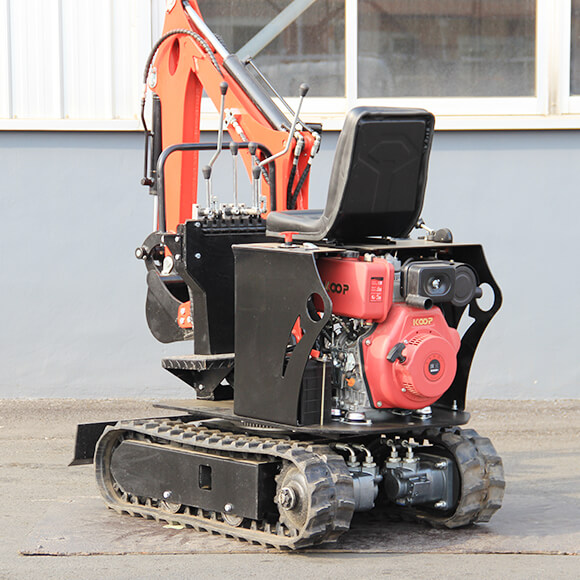

Engine Model		Changchai192FAW/KoopKD192F（Euro V）/UppowerKD192F(Euro V）
Rated Power	KW	7.6/7.0
Rated Speed	r/min	3000
Working Pressure of Hydraulic Pump	mpa	16
Max Climb Capability	°	30
Bucket digging force	KN	10
Weight	kg	705
Max ecavation depth	mm	1250
Max ecavation height	mm	2800
Max unloading height	mm	1860
Max vertical excavation depth	mm	1860
Max lifting heiht of bulldozer	mm	180
Max excavation depth of bulldozer	mm	210
Standard buket capacity	m³	0.02
Profile size	mm	1660×800×1970
