Product Details

Guangxi Ligong Machinery Co.,Ltd

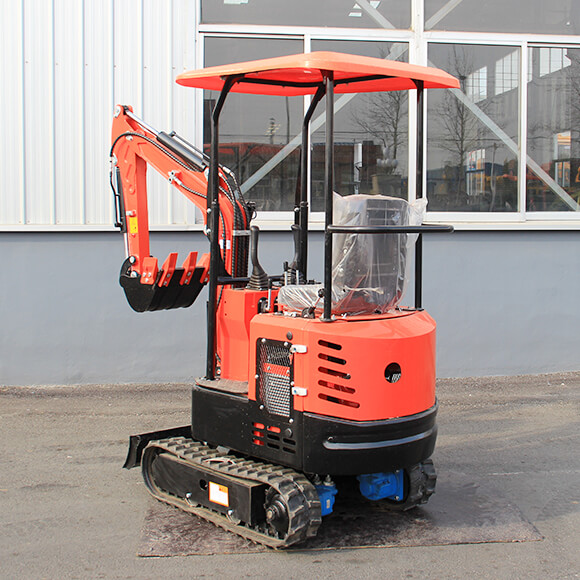

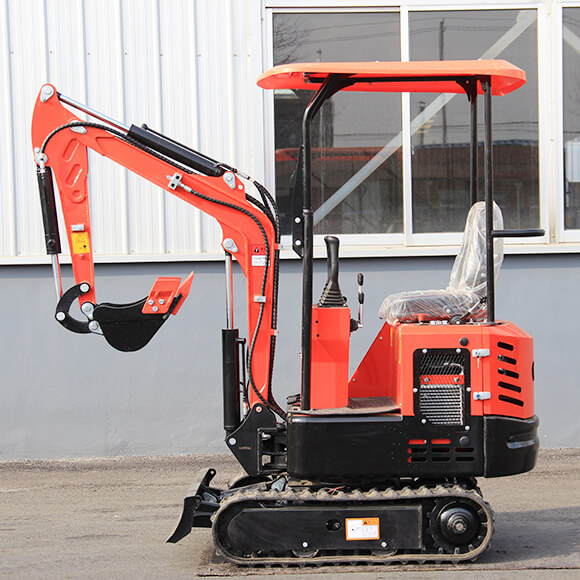

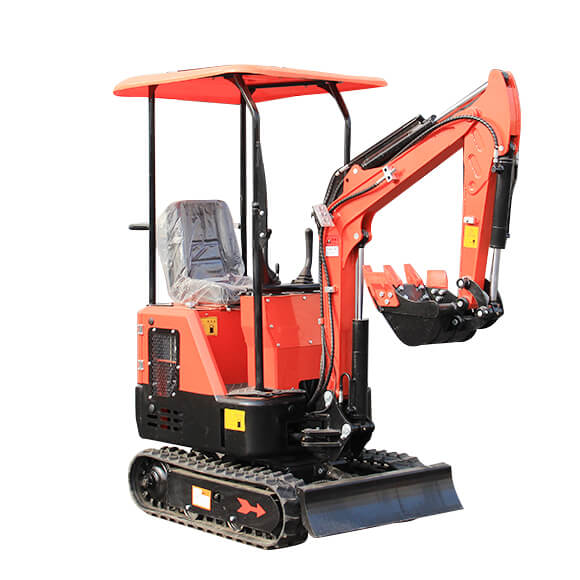

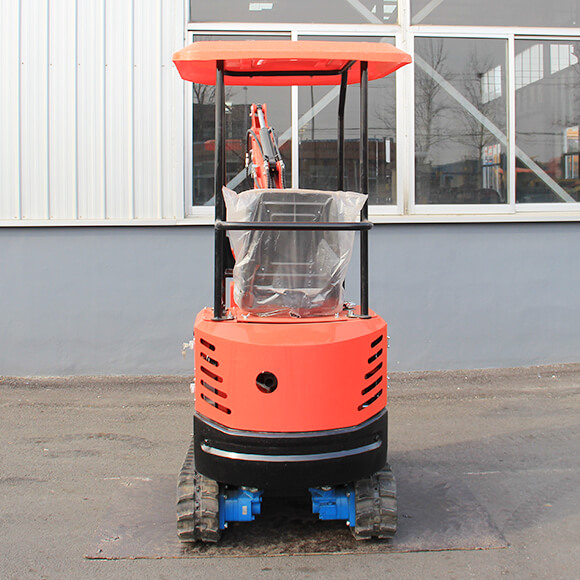

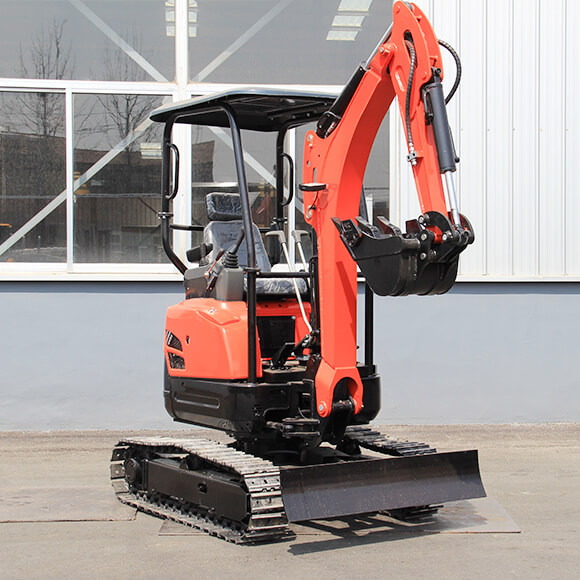

LC10E

1.The computer optimization design has the function of high level automatic leveling and the aperation

efficiency is improved significantly.

2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio

matches reasonably and reduces power consumption.

3.Load sensing is full hydraulic priority,stable,reliable and energy saving.

4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.

QUOTATION LIST
Overall performance	Unit	Value	Pictures
Excavator model		LC10E
Engine Model		Kepu192F/192FAM
Rated Power	KW	7.6/7.5
Rated Speed	r/min	3000
Working Pressure of Hydraulic Pump	mpa	16
Maximum walking speed	km/h	1.2
Rotary speed	rpm	11
Max Climb Capability	°	30
Bucket digging force	KN	11
Weight	kg	890
Max ecavation depth	mm	1635
Max ecavation height	mm	2755
Max unloading height	mm	1960
Max vertical excavation depth	mm	1305
Max lifting heiht of bulldozer	mm	350
Max excavation depth of bulldozer	mm	209
Standard buket size(L*W)	mm	340*370
Standard buket capacity	m³	0.025
Profile size	mm	2800×800×1580

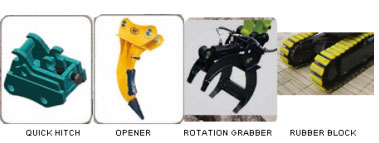

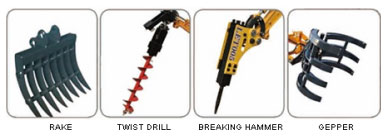

Optional attachments
