Product Details

Guangxi Ligong Machinery Co.,Ltd

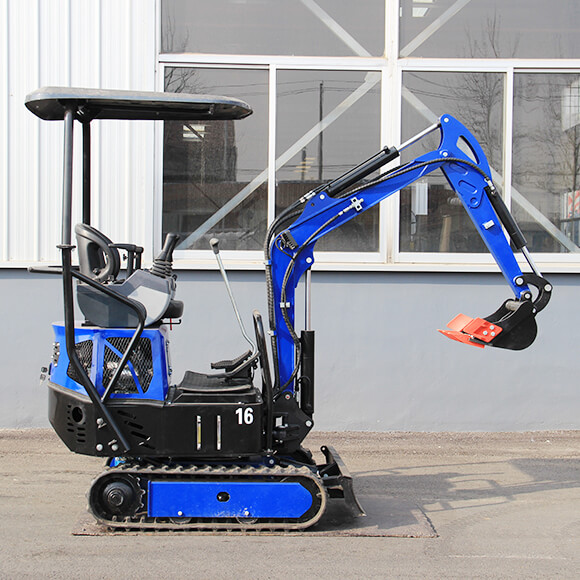

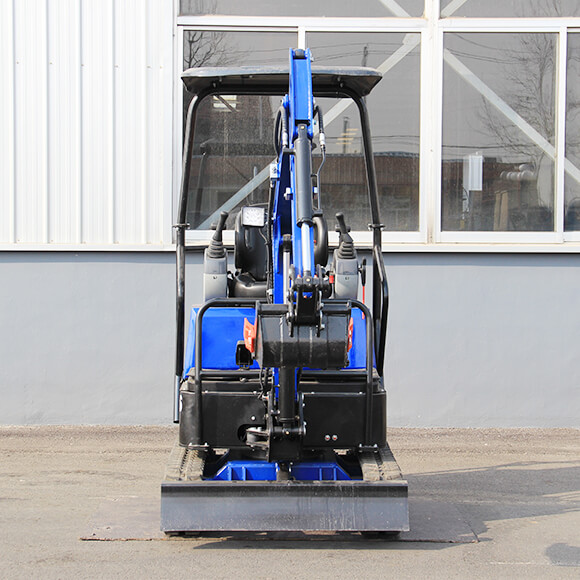

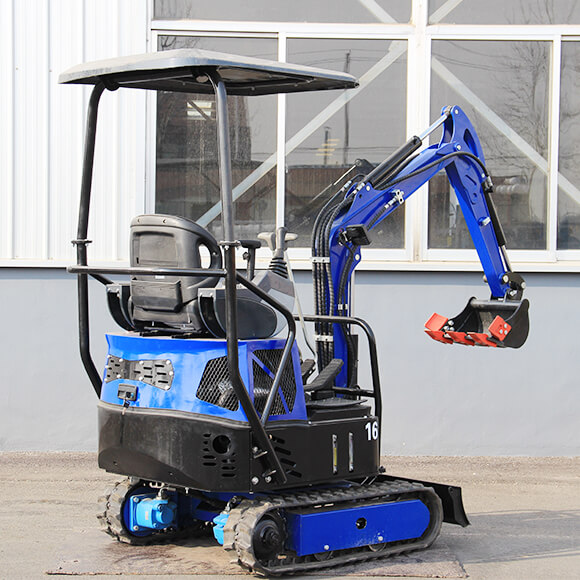

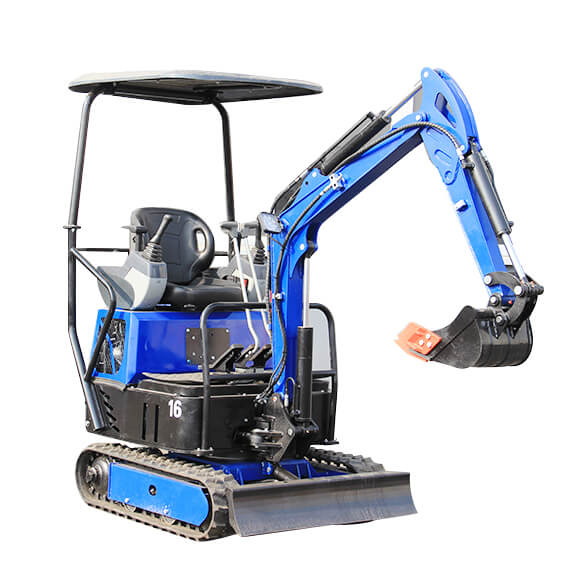

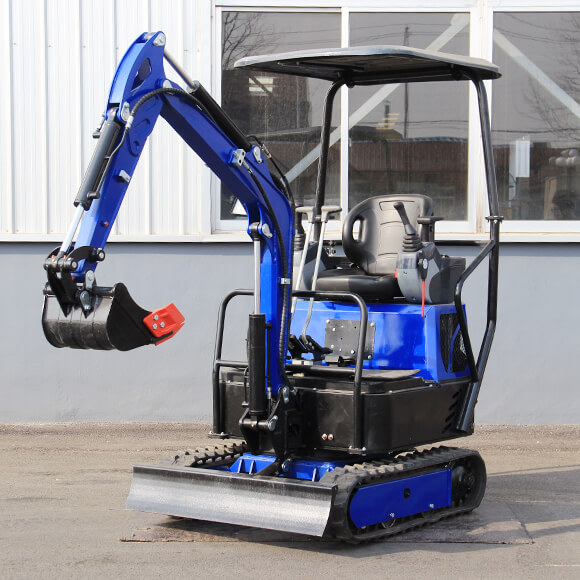

LC16E

1.The computer optimization design has the function of high level automatic leveling and the aperation

efficiency is improved significantly.

2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio

matches reasonably and reduces power consumption.

3.Load sensing is full hydraulic priority,stable,reliable and energy saving.

4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.

QUOTATION LIST
Overall performance	Unit	Value	Pictures
Excavator model		LC16E
Engine Model		KubotaD782/Xinchai 3B11
Rated Power	KW	9.9
Rated Speed	r/min	2300
Working Pressure of Hydraulic Pump	mpa	18
Maximum walking speed	km/h	1.2
Max Climb Capability	°	30
Bucket digging force	KN	11
Weight	kg	1095
Max ecavation depth	mm	1800
Max ecavation height	mm	2820
Max unloading height	mm	2050
Max vertical excavation depth	mm	2300
Max lifting heiht of bulldozer	mm	180
Max excavation depth of bulldozer	mm	210
Standard buket capacity	m³	0.025
Profile size	mm	2300×1120×2200

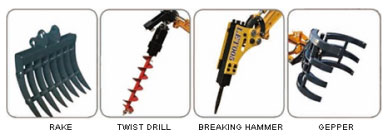

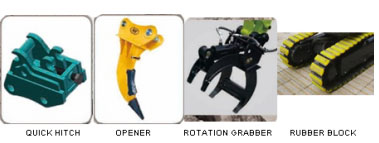

Optional attachments
