Product Details

Guangxi Ligong Machinery Co.,Ltd

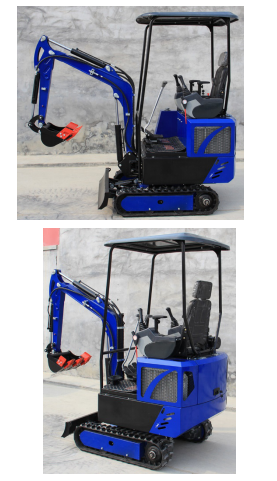

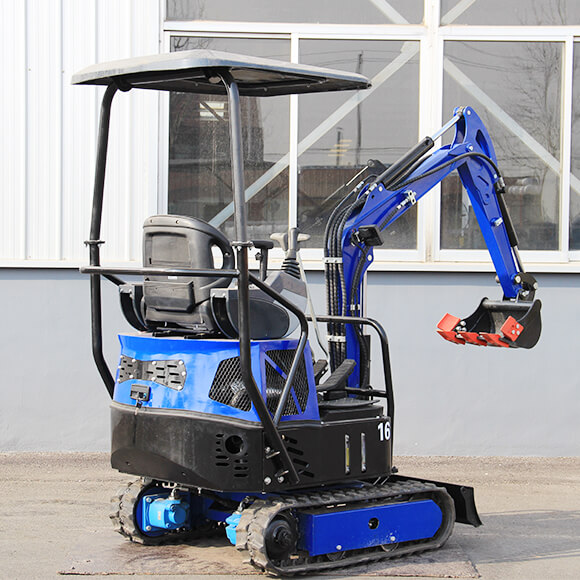

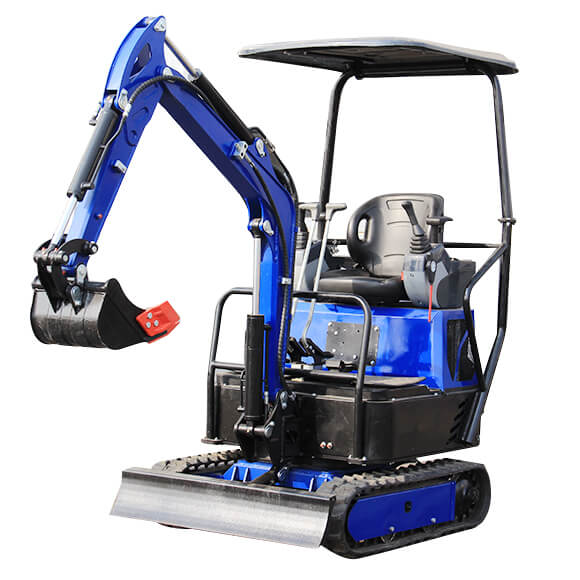

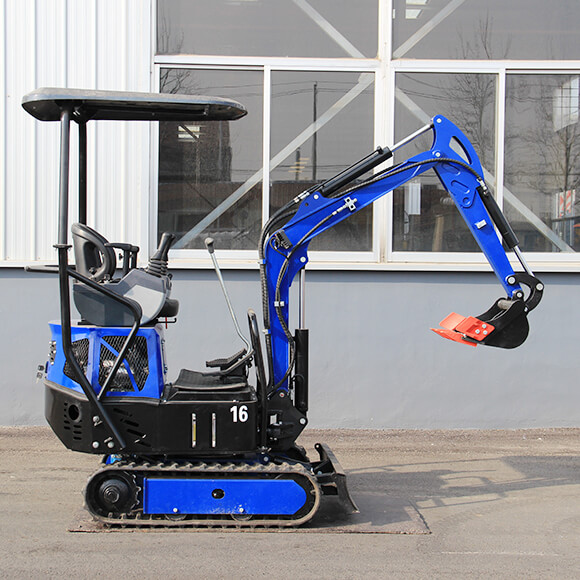

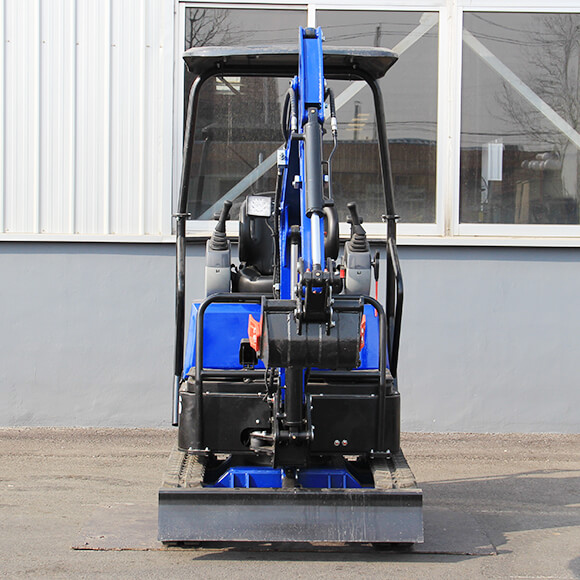

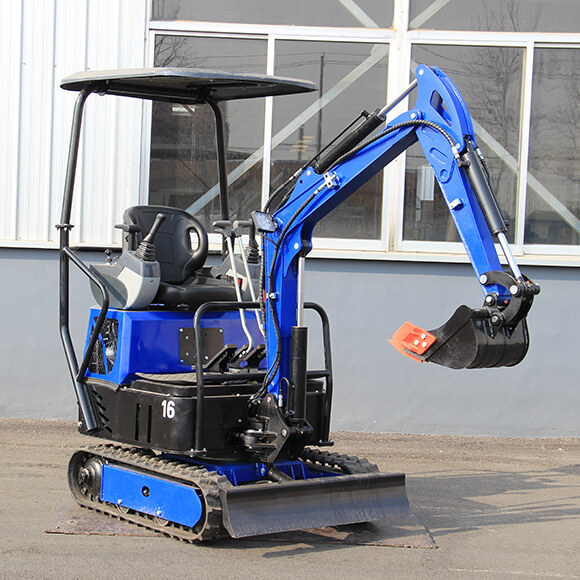

LC18E

1.The computer optimization design has the function of high level automatic leveling and the aperation

efficiency is improved significantly.

2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio

matches reasonably and reduces power consumption.

3.Load sensing is full hydraulic priority,stable,reliable and energy saving.

4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.

QUOTATION LIST
Overall performance	Unit	Value	Pictures
Excavator model		LC18E
Engine Model		KM385B/ZN390Q
Rated Power	KW	18.1/18
Rated Speed	r/min	2200
Working Pressure of Hydraulic Pump	mpa	18
Maximum walking speed	km/h	1.5
Rotary speed	rpm	11
Max Climb Capability	°	35
Bucket digging force	KN	11
Weight	kg	1700
Max ecavation depth	mm	2214
Max ecavation height	mm	3664
Max unloading height	mm	2523
Max vertical excavation depth	mm	1770
Max lifting heiht of bulldozer	mm	328
Max excavation depth of bulldozer	mm	203
Standard buket size(L*W)	mm	500*400
Standard buket capacity	m³	0.05
Profile size	mm	3714×1050×2275

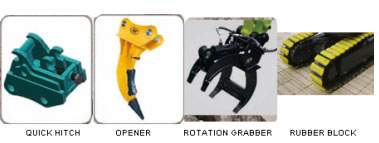

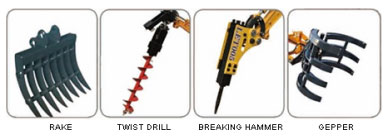

Optional attachments
