Product Details

Guangxi Ligong Machinery Co.,Ltd

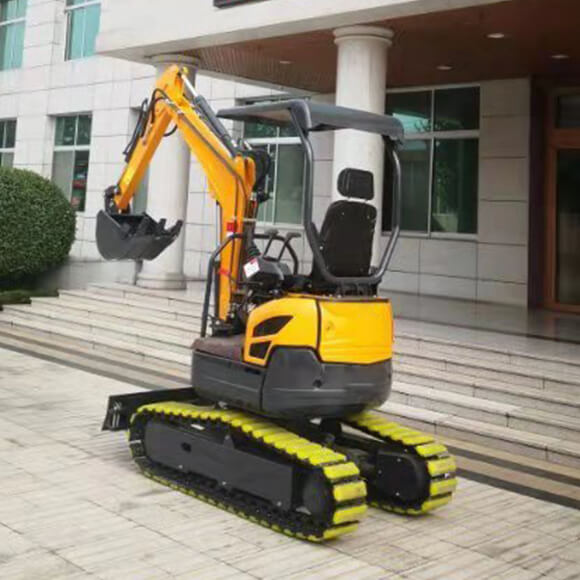

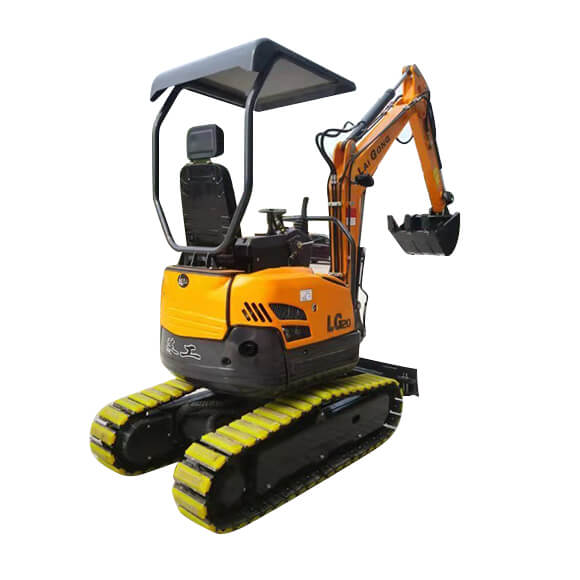

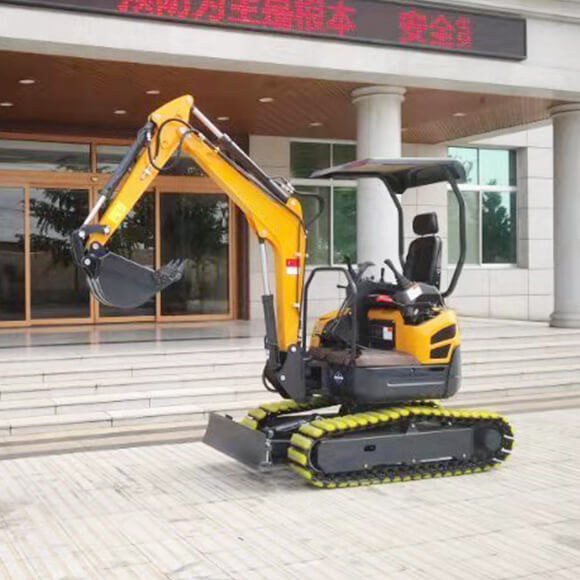

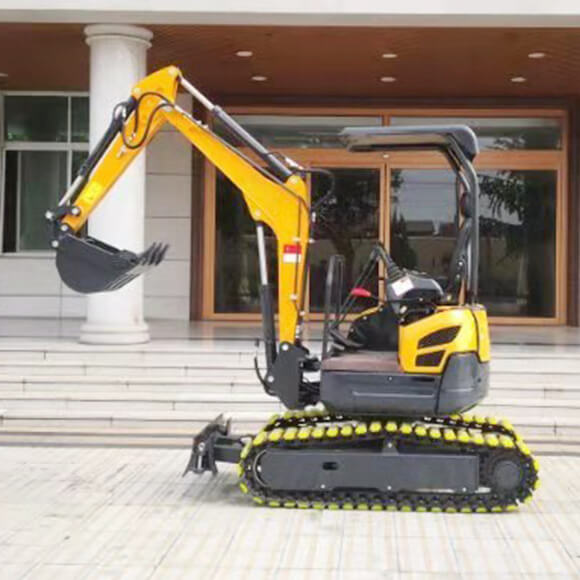

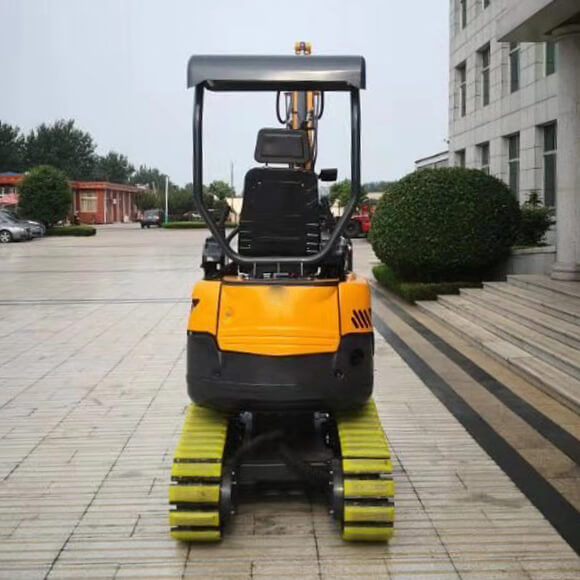

LC20E

1.The computer optimization design has the function of high level automatic leveling and the aperation

efficiency is improved significantly.

2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio

matches reasonably and reduces power consumption.

3.Load sensing is full hydraulic priority,stable,reliable and energy saving.

4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.

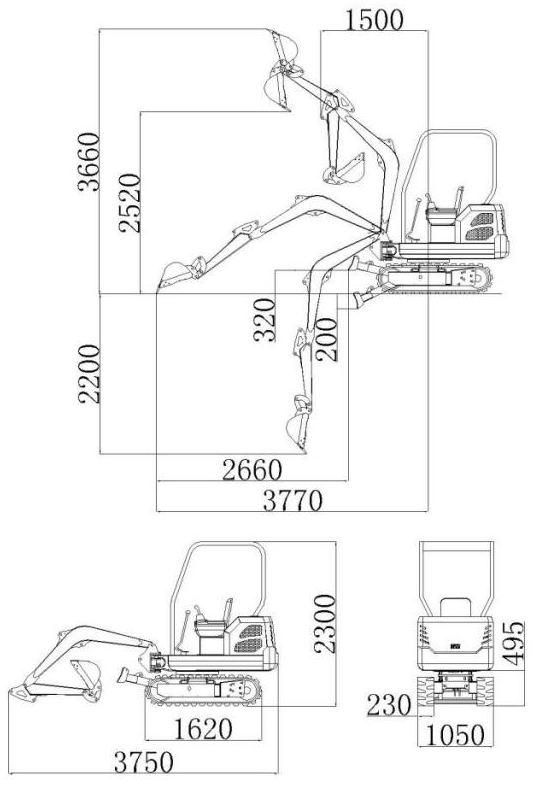

▲Main parameters		▲Main operation range
Operating weight	1855kg	Max. digging depth	2200mm
Overall length	3750mm	Max. digging height	3660mm
Overall width	1050mm	Max. dumping height	2520mm
Overall height	2300mm	Max. digging radius	3770mm
Crawler belt length	1620mm	Min. rotation radius	1500mm
Chasis width	1050mm	Max. digging distance	2660mm
Standard bucket capacity	0.05m³	Push blade lifting height	320mm
Standard bucket width	450mm	Push blade fallinig depth	200mm
▲Main performance specifications
Engine Type	ChangchaiZN390Q/Laidong KM385B/Xinchai3B11X40(Euro V)
Engine parameter	18Kw-2200rpm/18.1kw-2200rpm/18.5kw-3000rpm
Working pressure	18Mpa
Main pump	9+9+3ml/r
Gradeability	35°
Max. digging force	12KN
Operation mode	Pilot hydraulic control
