Product Details

Guangxi Ligong Machinery Co.,Ltd

LC22EU2
LC22EU2
LC22EU2
LC22EU2
LC22EU2

LC22EU2

1.The computer optimization design has the function of high level automatic leveling and the aperation

   efficiency is improved significantly.

2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio

   matches reasonably and reduces power consumption.

3.Load sensing is full hydraulic priority,stable,reliable and energy saving.

4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.


>
<

Detail Information


Overall performance

Unit

Value

Pictures

  Excavator model


  LC22E


  Engine Model


  Yanmar 3TNV70-SSY

  Rated Power

  KW

  10

  Rated Speed

  r/min

  2200

  Working Pressure of Hydraulic Pump

  mpa

  20

  Maximum walking speed

  km/h

  4.7/9.6

  Rotary speed

  rpm

  11.5

  Max Climb Capability

  °

  35

  Bucket digging force

  KN

  20

  Weight

  kg

  1780

  Max ecavation depth

  mm

  2452

  Max ecavation height

  mm

  3926

  Max unloading height

  mm

  2652

  Max vertical excavation depth

  mm

  1738

  Max lifting heiht of bulldozer

  mm

  236

  Max excavation depth of bulldozer

  mm

  161

  Standard buket size(L*W)

  mm

  550*450

  Standard buket capacity

  m³

  0.05

  Profile size

  mm

  3800×1050-1300×2345

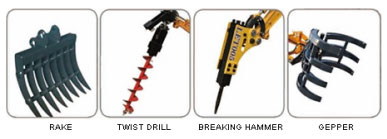

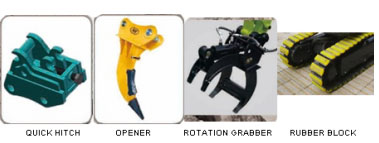

Optional attachments
