Product Details

Guangxi Ligong Machinery Co.,Ltd

LC30E

1.The computer optimization design has the function of high level automatic leveling and the aperation

efficiency is improved significantly.

2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio

matches reasonably and reduces power consumption.

3.Load sensing is full hydraulic priority,stable,reliable and energy saving.

4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.

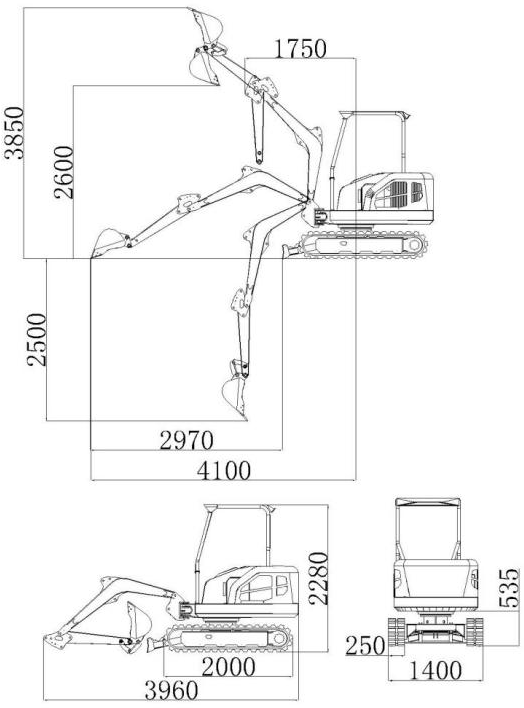

▲Main parameters		▲Main operation range
Operating weight	1970kg	Max. digging depth	2500mm
Overall length	3960mm	Max. digging height	3850mm
Overall width	1400mm	Max. dumping height	2600mm
Overall height	2280mm	Max. digging radius	4100mm
Crawler belt length	2000mm	Min. rotation radius	1750mm
Chasis width	1400mm	Max. digging distance	2970mm
Standard bucket capacity	0.07m³	Push blade lifting height	320mm
Standard bucket width	450mm	Push blade fallinig depth	200mm
▲Main performance specifications
Engine Type	ChangchaiZN490
Engine parameter	34kw-2400rpm
Working pressure	20Mpa
Main pump	28ml/r
Gradeability	35°
Max. digging force	12KN
Operation mode	Pilot hydraulic control
