Product Details

Guangxi Ligong Machinery Co.,Ltd

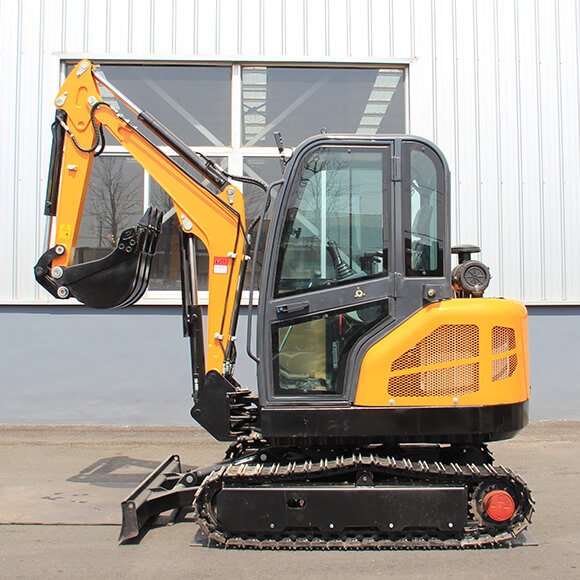

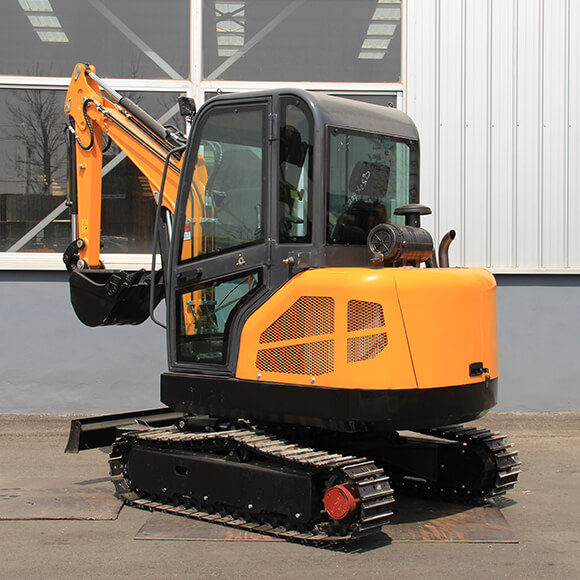

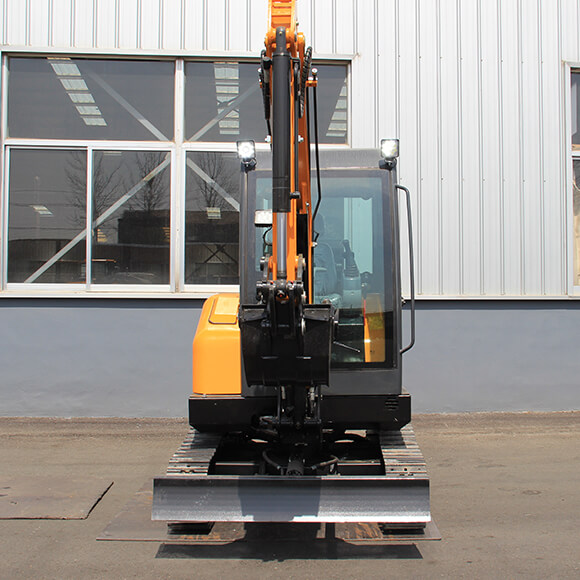

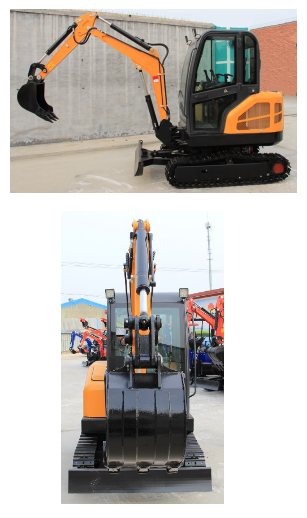

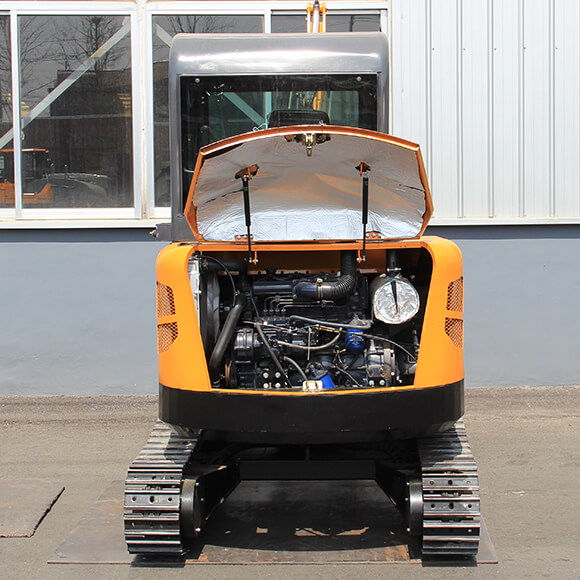

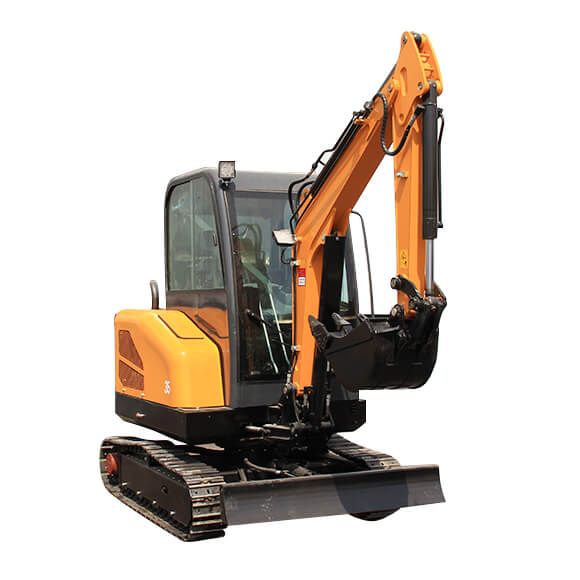

LC35E

1.The computer optimization design has the function of high level automatic leveling and the aperation

efficiency is improved significantly.

2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio

matches reasonably and reduces power consumption.

3.Load sensing is full hydraulic priority,stable,reliable and energy saving.

4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.

QUOTATION LIST
Overall performance	Unit	Value	Pictures
Excavator model		LC35E
Engine Model		Changchai 490 ZN490B
Rated Power	KW	34
Rated Speed	r/min	2400
Working Pressure of Hydraulic Pump	mpa	22
Maximum walking speed	km/h	2.2/4.2
Rotary speed	rpm	9-11
Max Climb Capability	°	35
Bucket digging force	KN	22
Weight	kg	3390
Max ecavation depth	mm	3050
Max ecavation height	mm	4680
Max unloading height	mm	3260
Max vertical excavation depth	mm	2280
Max lifting heiht of bulldozer	mm	550
Max excavation depth of bulldozer	mm	380
Standard buket size(L*W)	mm	650*540
Standard buket capacity	m³	0.16
Profile size	mm	4387×1700×2415

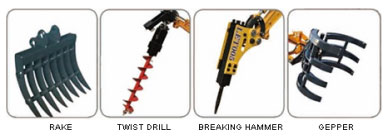

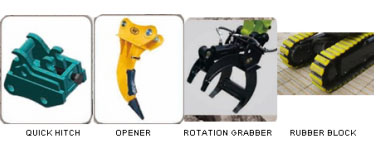

Optional attachments
