Product Details

Guangxi Ligong Machinery Co.,Ltd

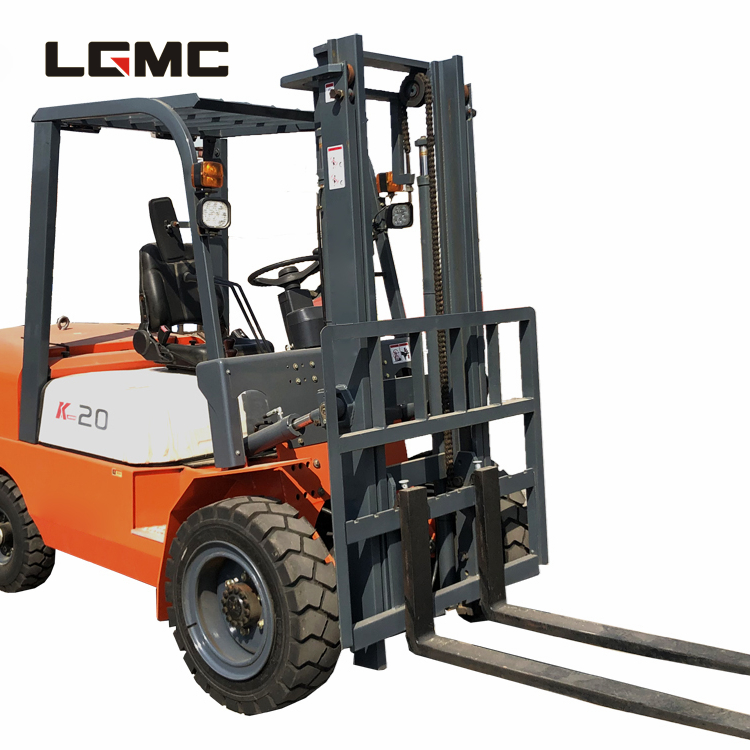

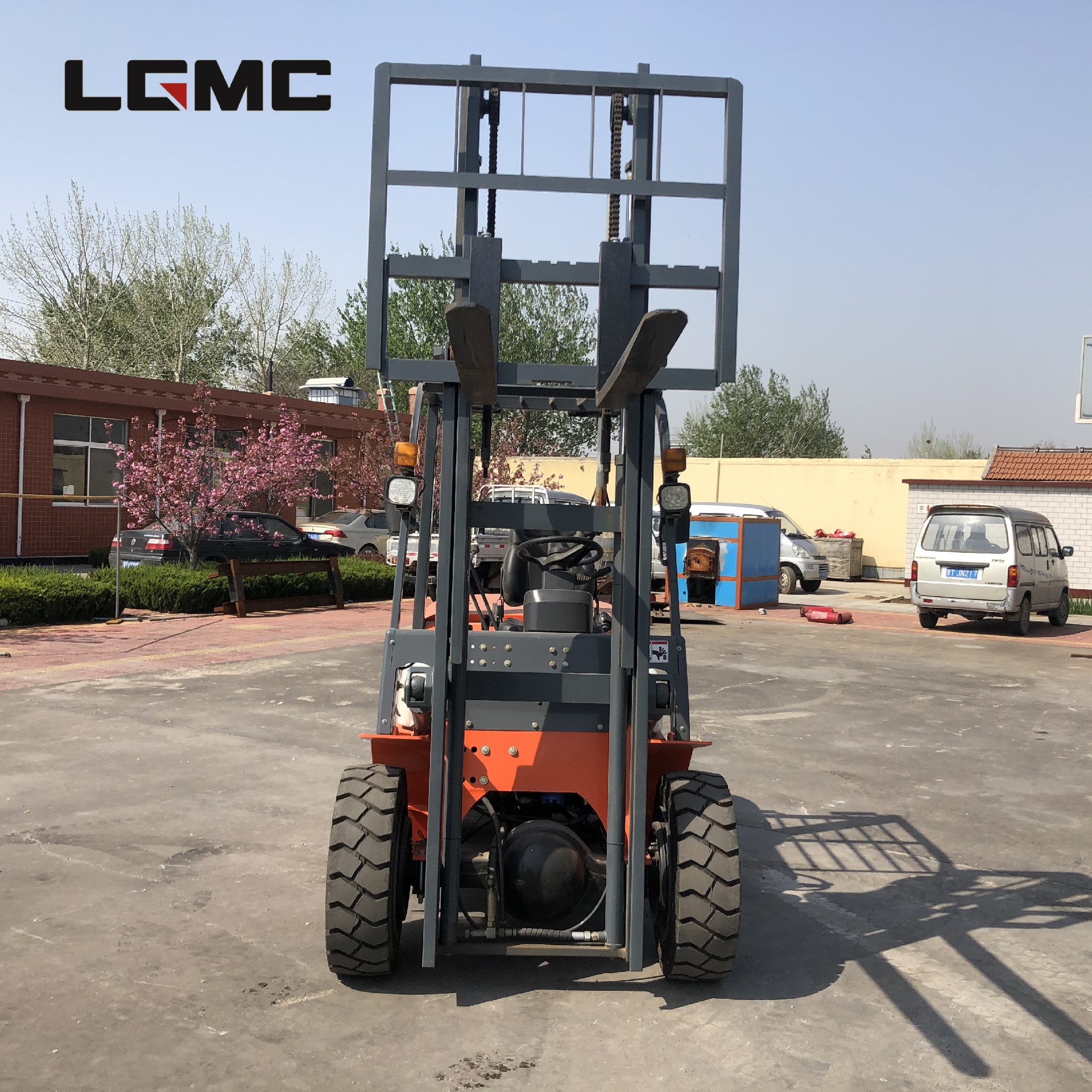

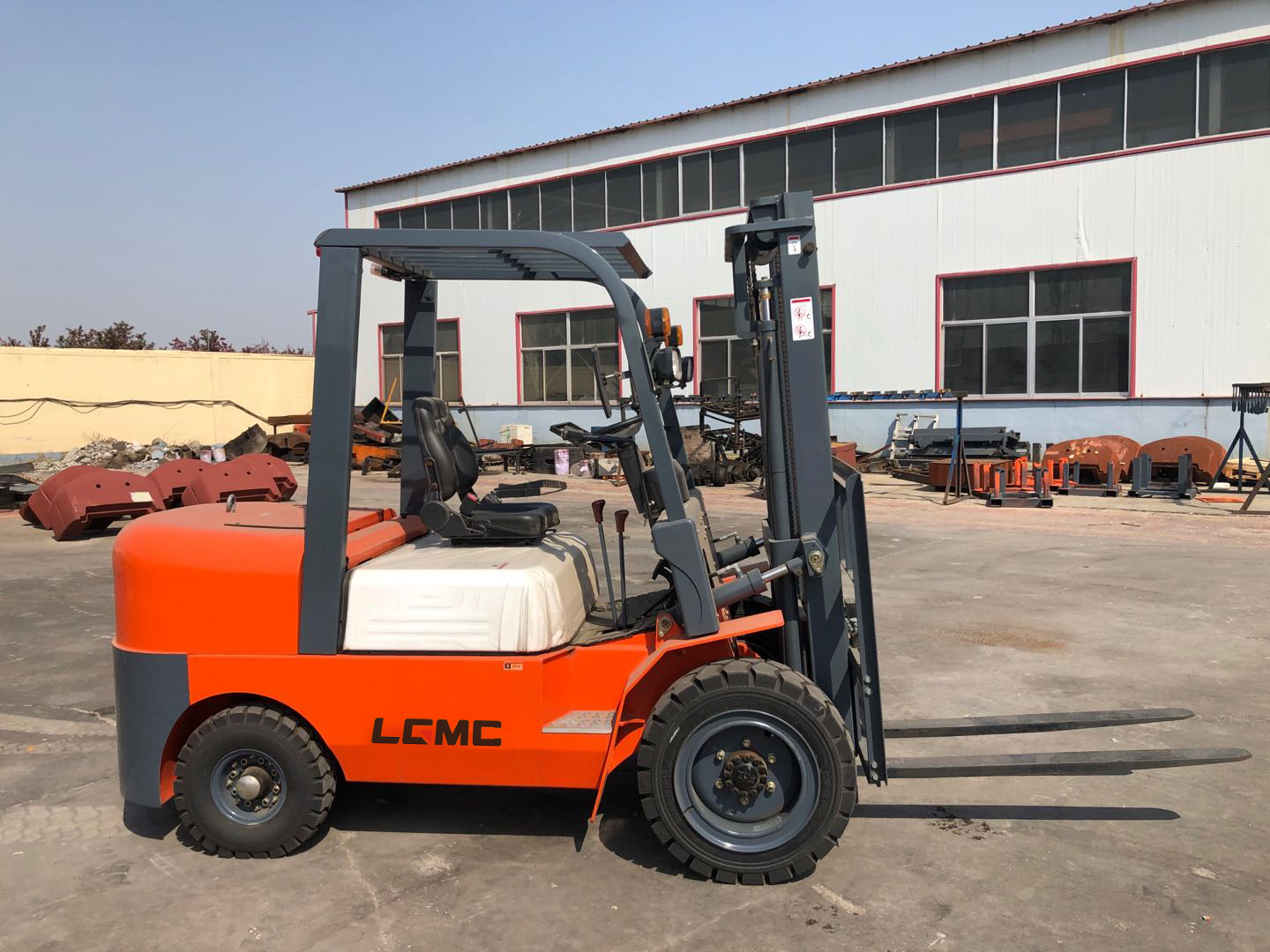

CPC(D)25

Main Features

1. The forklift door frame is made of 20 manganese silicon channel steel to ensure the hardness of the door frame and prolong the service life of the entire door frame.
2. The forks are forged forks to ensure the strength of the fork and improve the safety factor.
3. The intelligent electronic control system makes the vehicle control more refined and reduces the operating cost of the whole machine.

>

<

Detail Information

Model				CPC(D)25
Characteristics	Fuel type			Diesel
	Load capacity		kg	2500
	Load center		mm	500
	Lift height		mm	3000
	free lift height		mm	140
	Fork dimension		mm	1070×122×40
	Mast tilting angle		Deg	6/12
	Min.turning radius		mm	2240
	Min. Groud clearance	Mast	mm	120
		Frame	mm	130
	Overhead guard height		mm	2160
	Front overhang		mm	450
Performance	Max travel speed		km/h	19
	Max lift speed		mm/s	500
	Max.towing force(full load)		KN	18
	Max. gradeability		%	20
Dimensions	Total length with fork		mm	3650
	Total length without fork		mm	2580
	Total width		mm	1160
	Mast extended height		mm	4220
	Mast lowered height		mm	2060
Chassis	Tyres Front		7.00-12-12PR
	Type Rear		6.00-9-10PR
	Wheelbase		mm	1600
	Tread		mm	970/970
	Service weight		Kg	3880
Drive	Battery		V/Ah	12/80
	Motor	Model		Xinchai 490
		Rated output	kw/r.p.m	40/2650
		Rated torque	Nm/r.p.m	162/1900
		Cylinders		4
		Displacement	L	2.67
	Fuel tank capacity		L	60
	Transmission		Machenical
