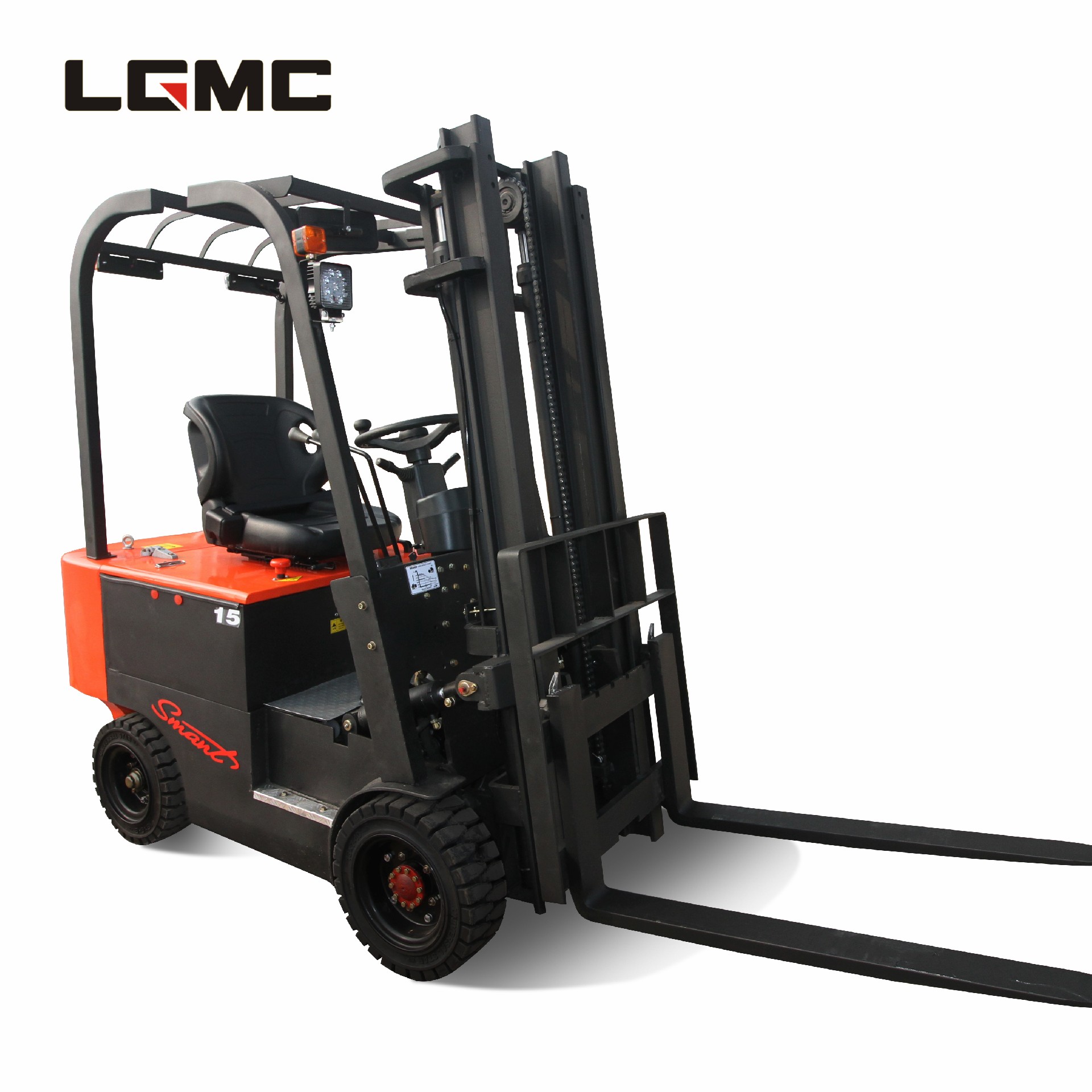

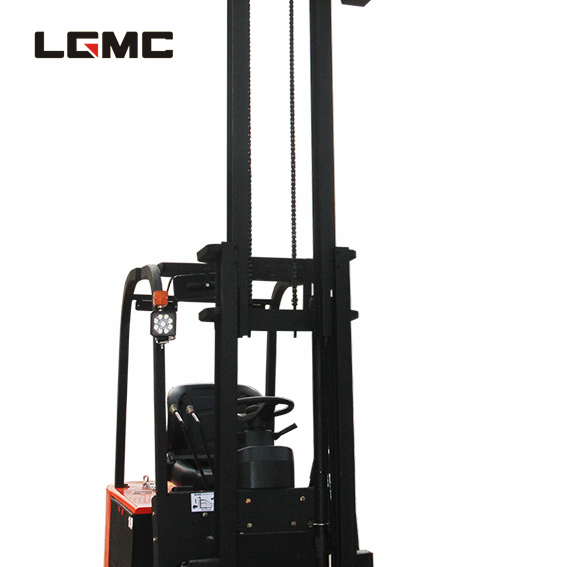

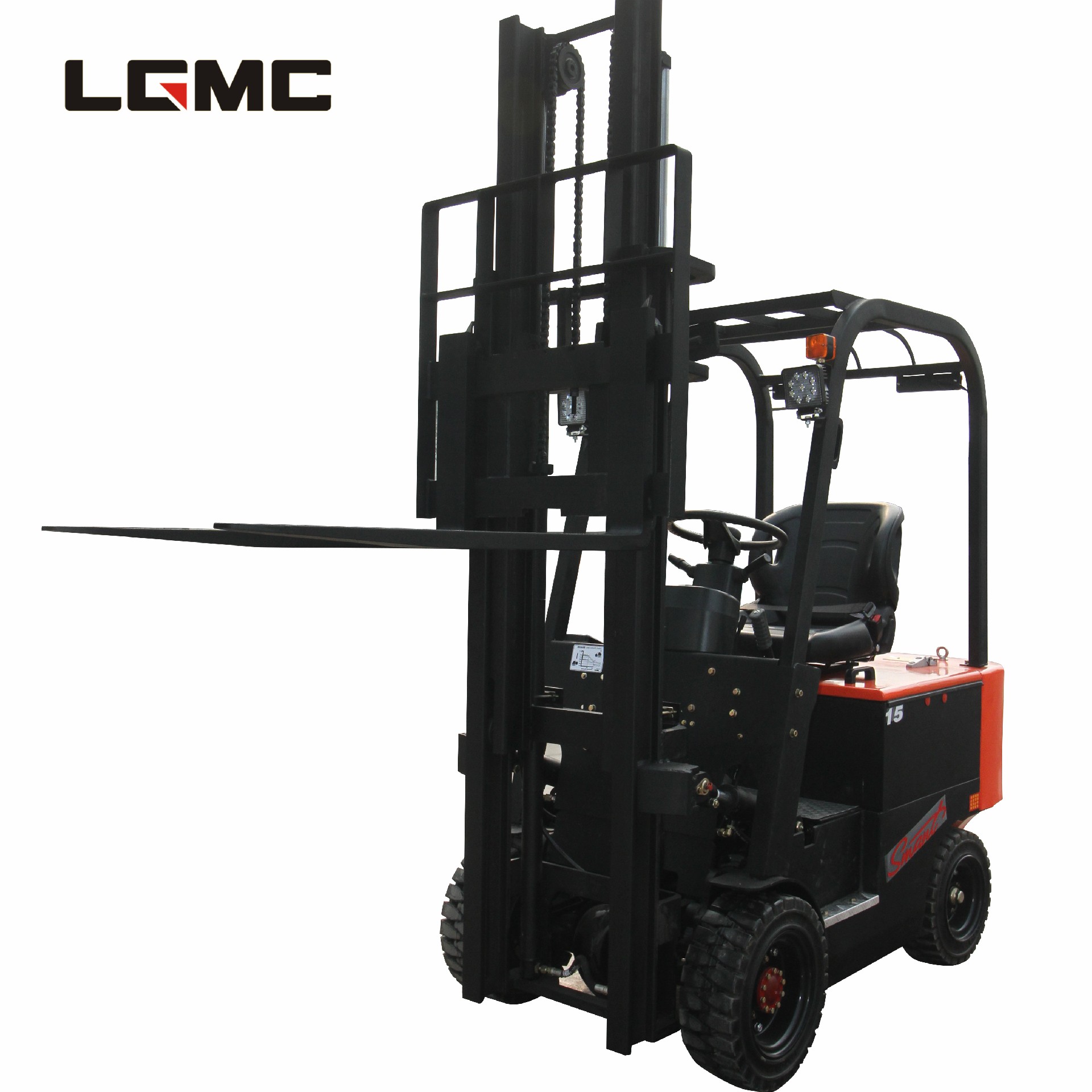

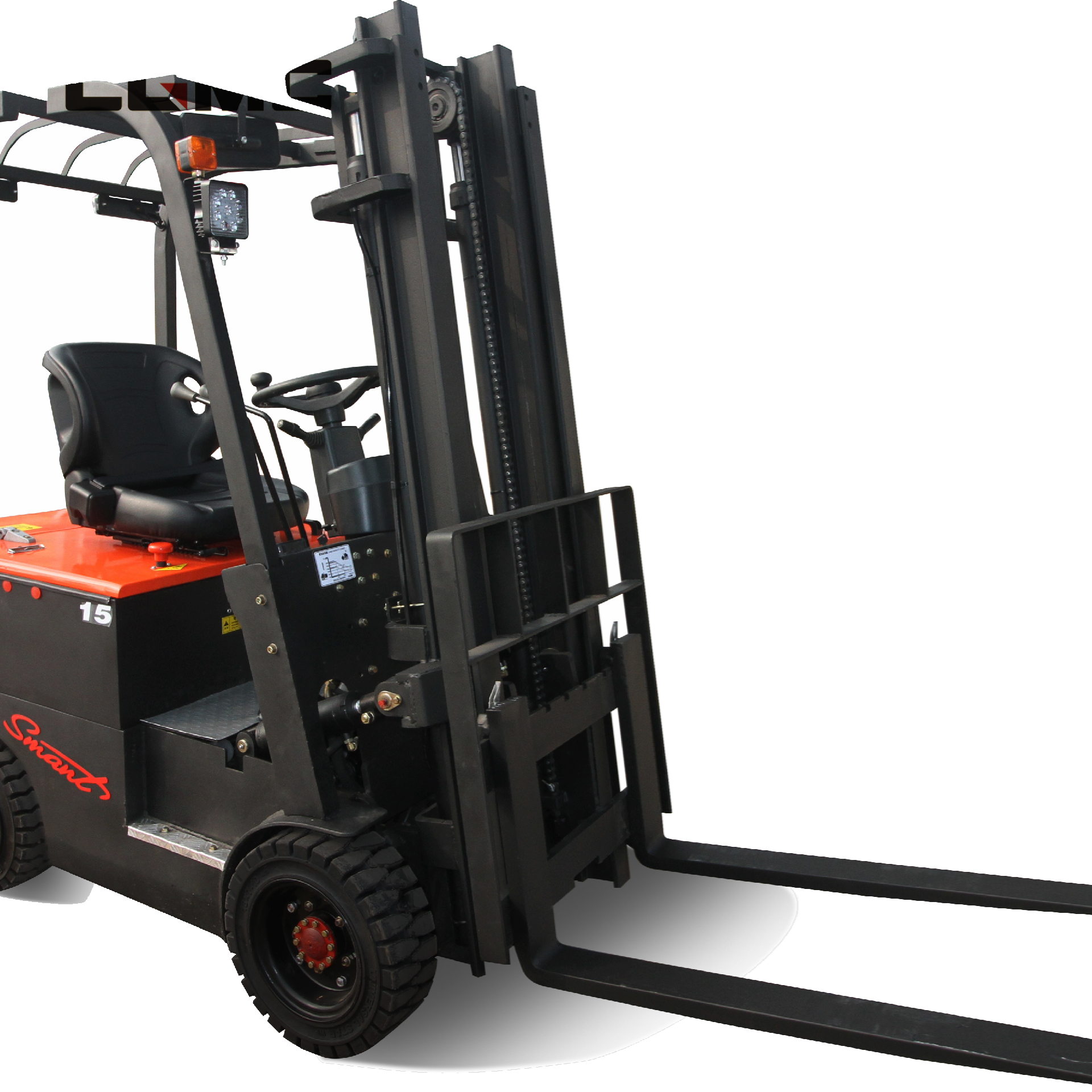

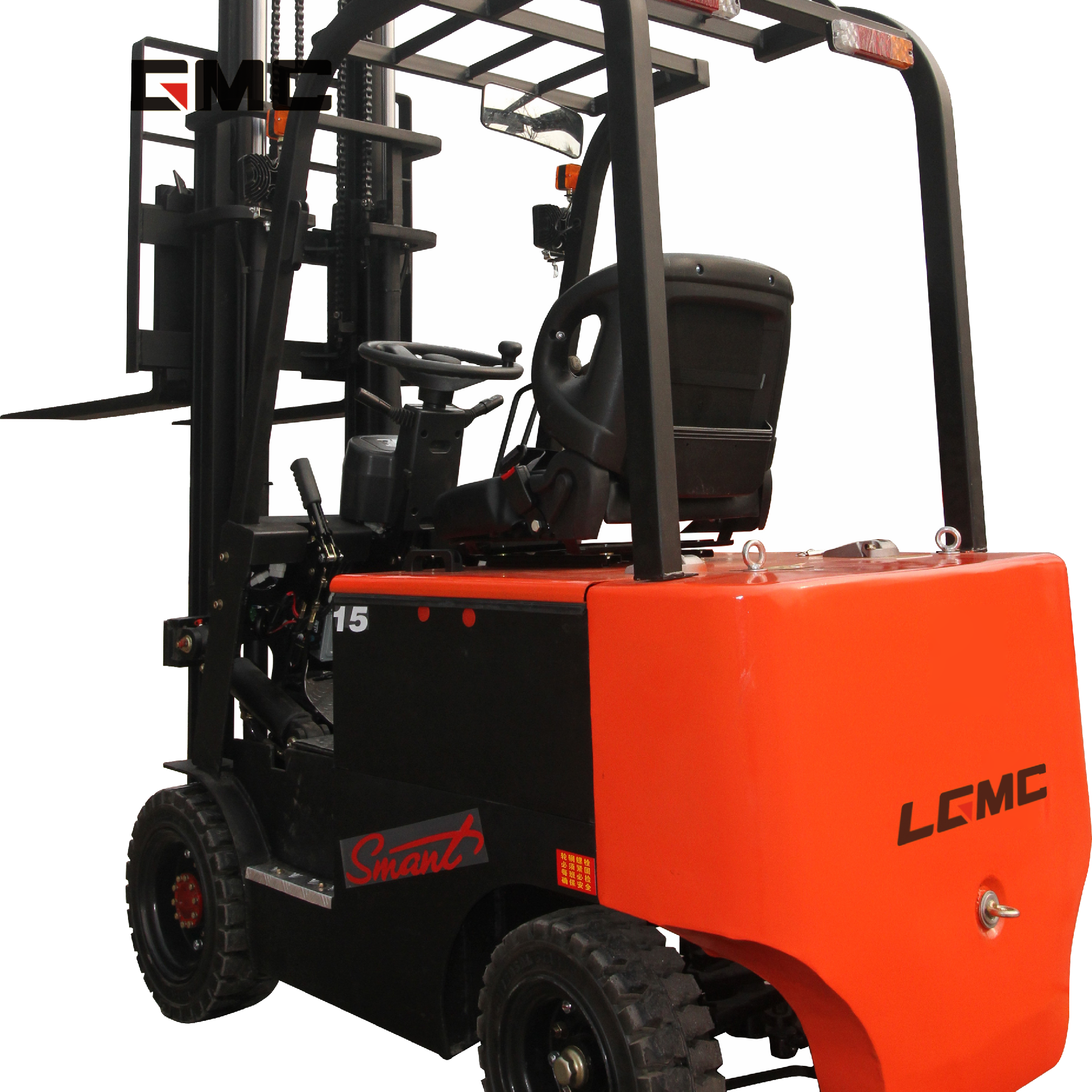

CPD20 Electric Forklift-Forklift-Guangxi Ligong Machinery Co.,Ltd

Model			CPD20
Power type			Battery
Rated load		KG	2000
Load center distance		mm	500
Driving type			Seat
Length	With fork L1	mm	3120
	Without fork L2		2050
Whole Width B			1050
Height	Height no lifting frame H1		2000
	Top frame height H2		2000
	Max Height working H3		3850
Distance from seat to top light L3			1020
Wheel base L4			1400
Front overhang Y			320
Back overhang L5			330
Front wheel tread R			880
Back wheel tread P			830
Min Floor clearance F			100
Max lifting height H			3000
Free lifting height H4			80
Fork changing S			925/200
Min Turning radius WA			1950
Min Right angle aisle width RA			3400
Frame angle a/β		（°）	6°/12°
Max lifting speed without goods		mm/s	350
Max lifting speed with full goods			300
Max speed without goods		Km/h	15
Max speed with full goods			14
Max climbing angle		％	≤10
Whole machine weight		Kg	3200
Driving Wheel			2x/2
Tyre model			Solid tyre
Front Tyre			18*7 -10
Rear Tyre			18*6-8
Hand Brake			Hydraulic Pedal
Brake type			M-Hand
Battery Volt/ capacity		V/Ah	48/400
Driving motor power		Kw	7.5AC
pump power			10AC
