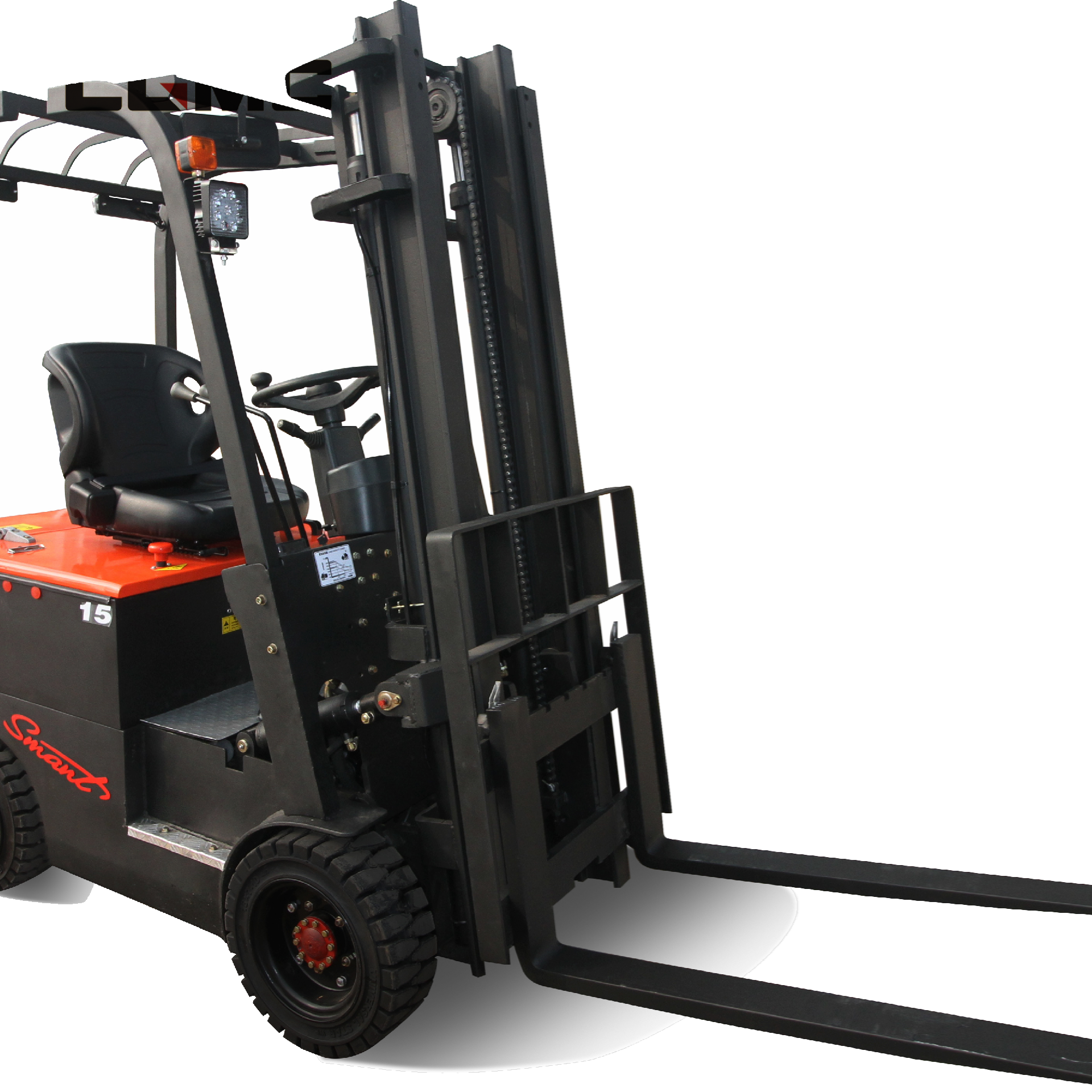

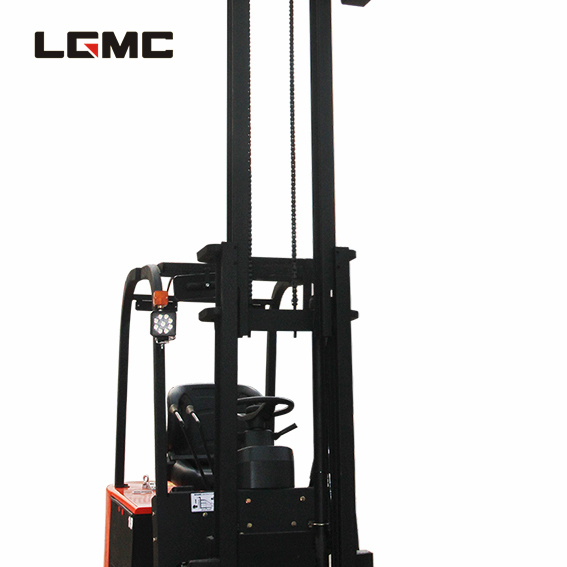

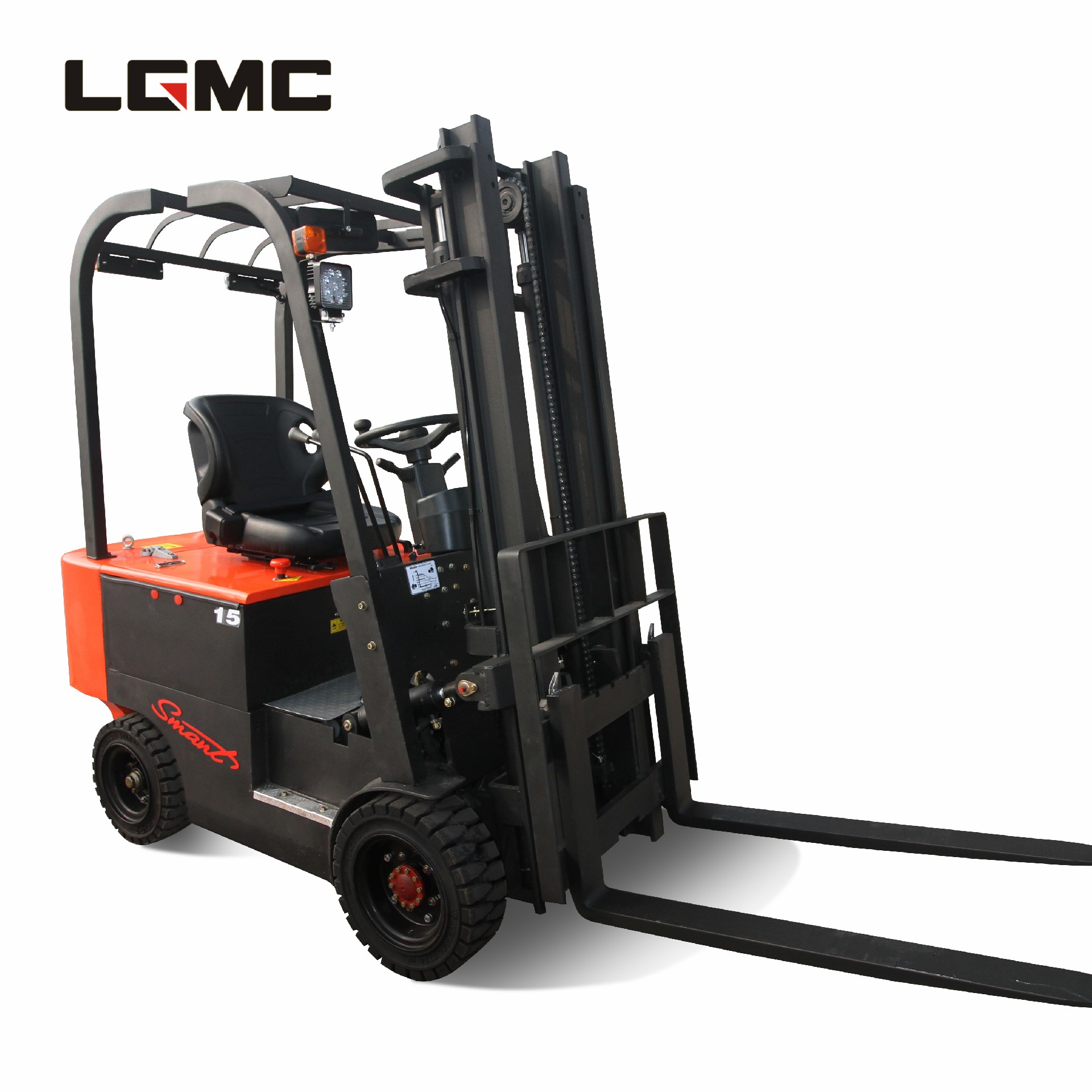

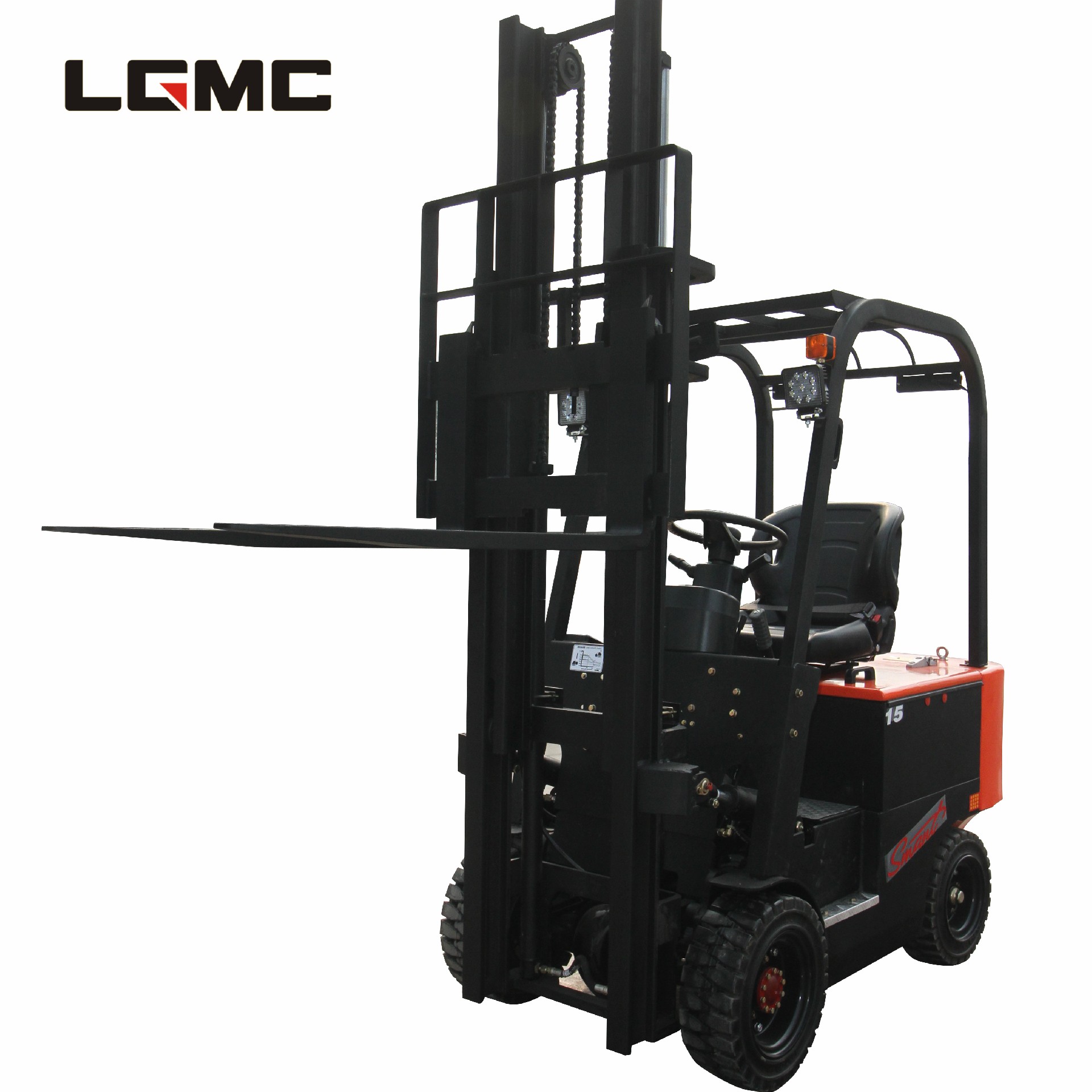

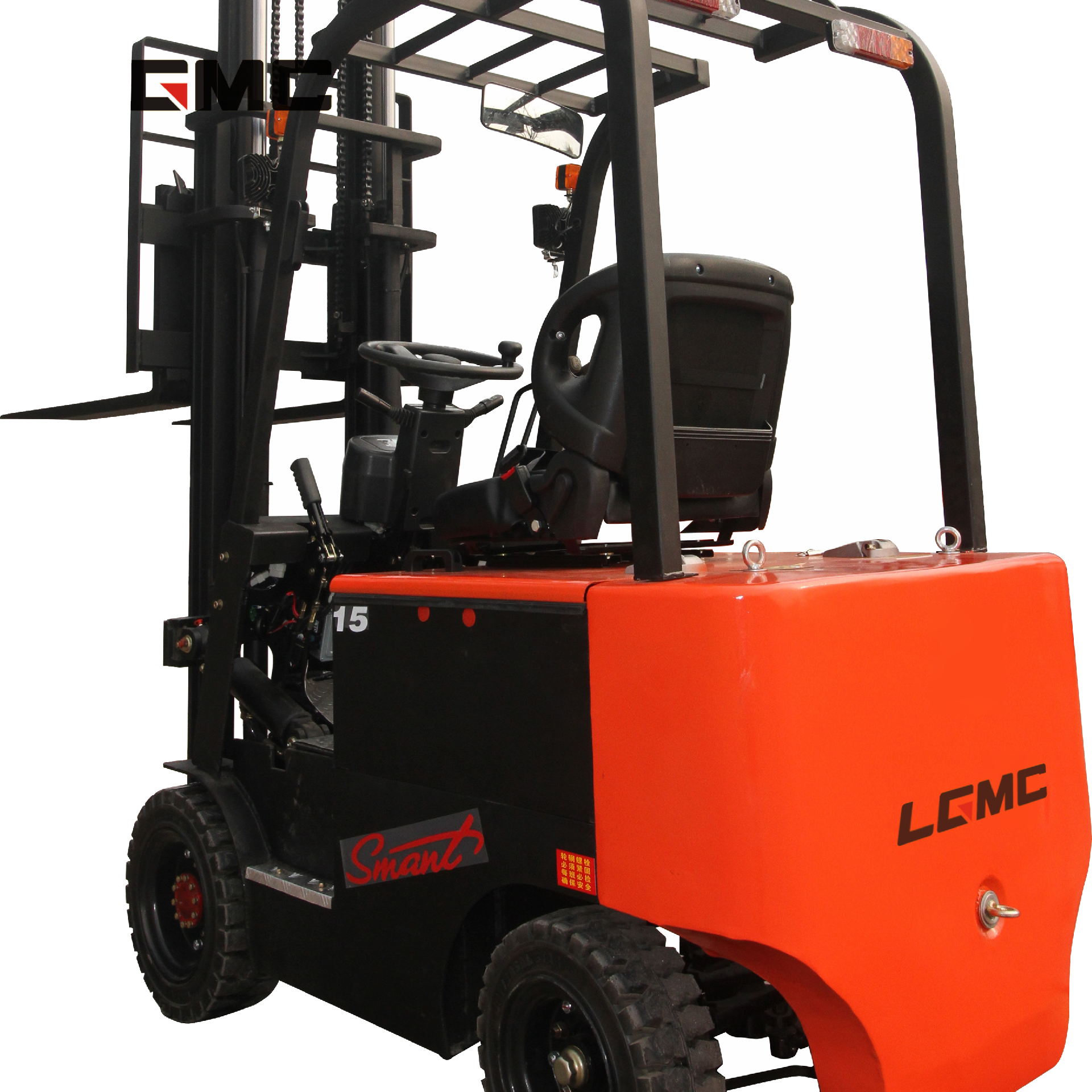

CPD30 Electric Forklift-Forklift-Guangxi Ligong Machinery Co.,Ltd

Model			CPD30
Power type			Battery
Rated load		KG	3000
Load center distance		mm	500
Driving type			Seat
Length	With fork L1	mm	3630
	Without fork L2		2570
Whole Width B			1243
Height	Height no lifting frame H1		2070
	Top frame height H2		2210
	Max Height working H3		4225
Distance from seat to top light L3			1060
Wheel base L4			1680
Front overhang Y			490
Back overhang L5			425
Front wheel tread R			1000
Back wheel tread P			980
Min Floor clearance F			135
Max lifting height H			3000
Free lifting height H4			160
Fork changing S			1060/250
Min Turning radius WA			2200
Min Right angle aisle width RA			4100
Frame angle a/β		（°）	6°/12°
Max lifting speed without goods		mm/s	450
Max lifting speed with full goods			280
Max speed without goods		Km/h	14
Max speed with full goods			12.5
Max climbing angle		％	≤15
Whole machine weight		Kg	4950
Driving Wheel			2x/2
Tyre model			Solid tyre
Front Tyre			28X9-15
Rear Tyre			18x7-8
Hand Brake			Hydraulic Pedal
Brake type			M-Hand
Battery Volt/ capacity		V/Ah	80/500
Driving motor power		Kw	16.6AC
pump power			13AC
