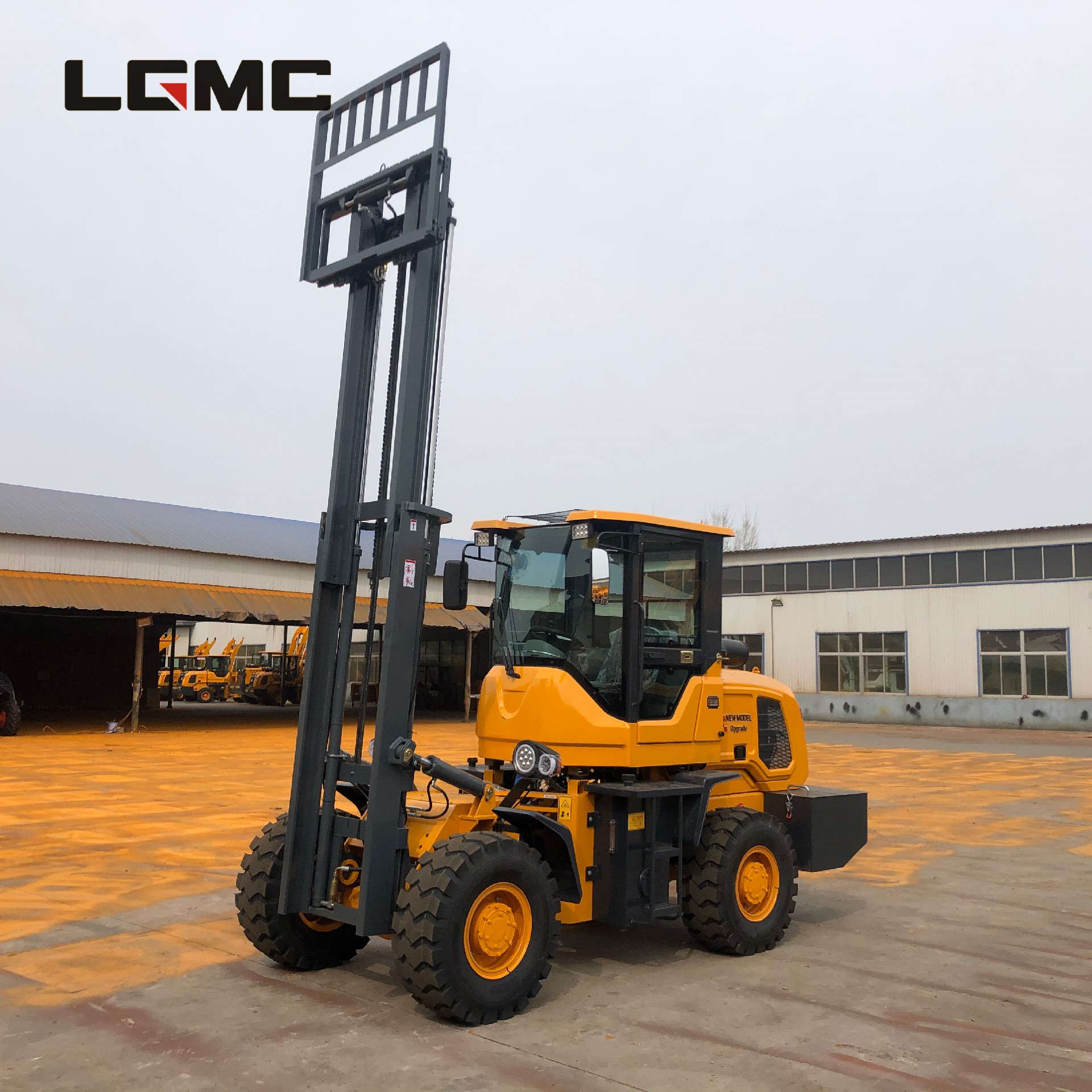

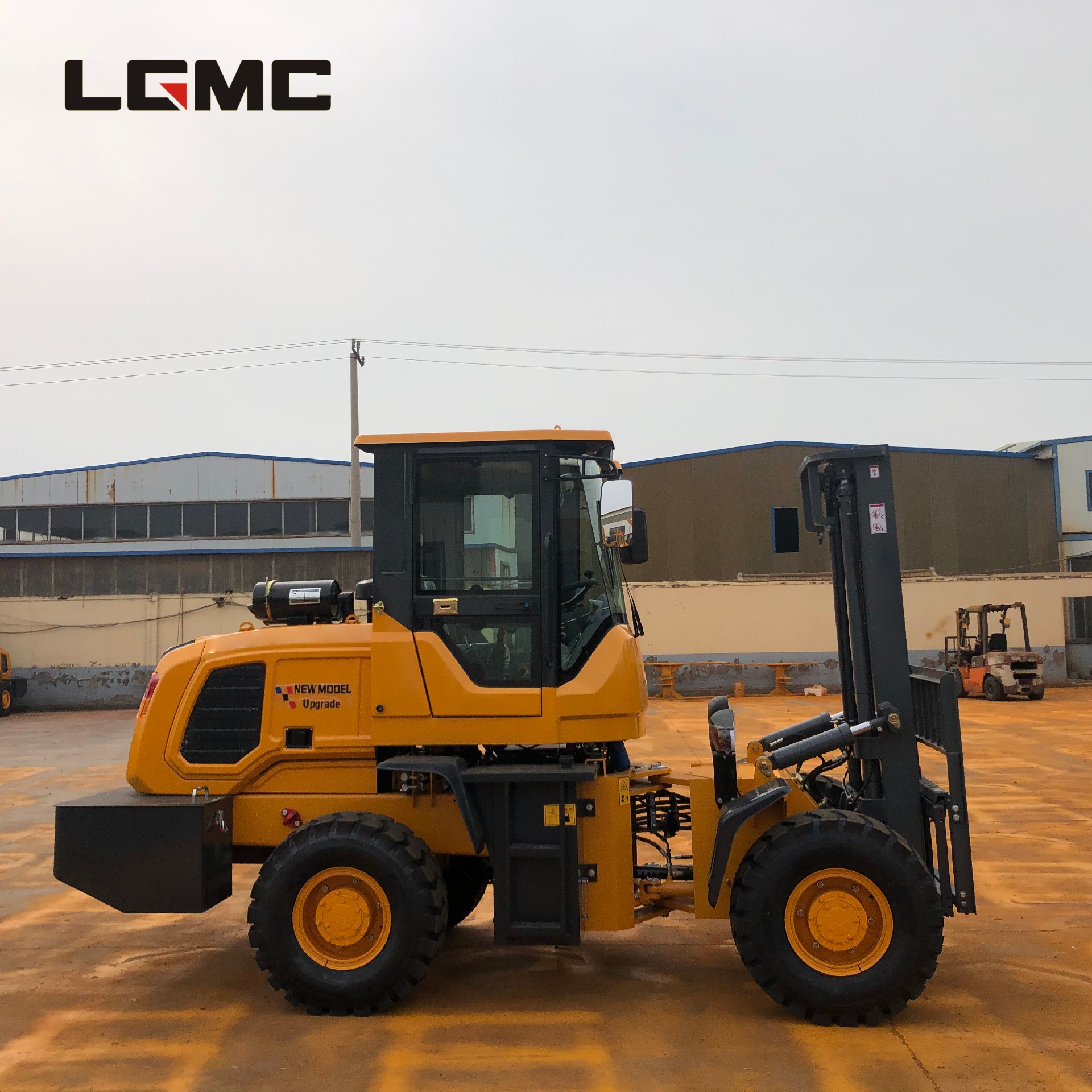

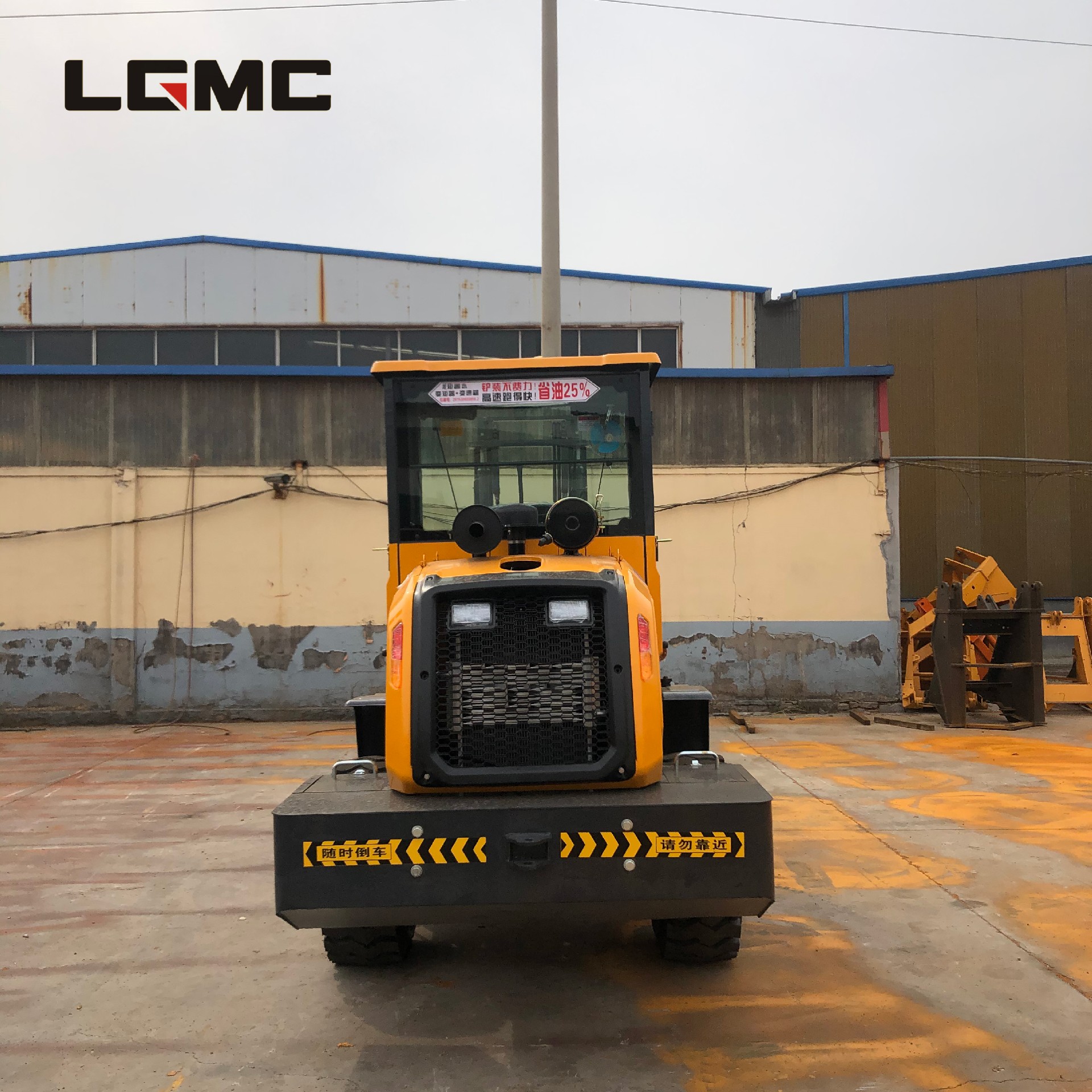

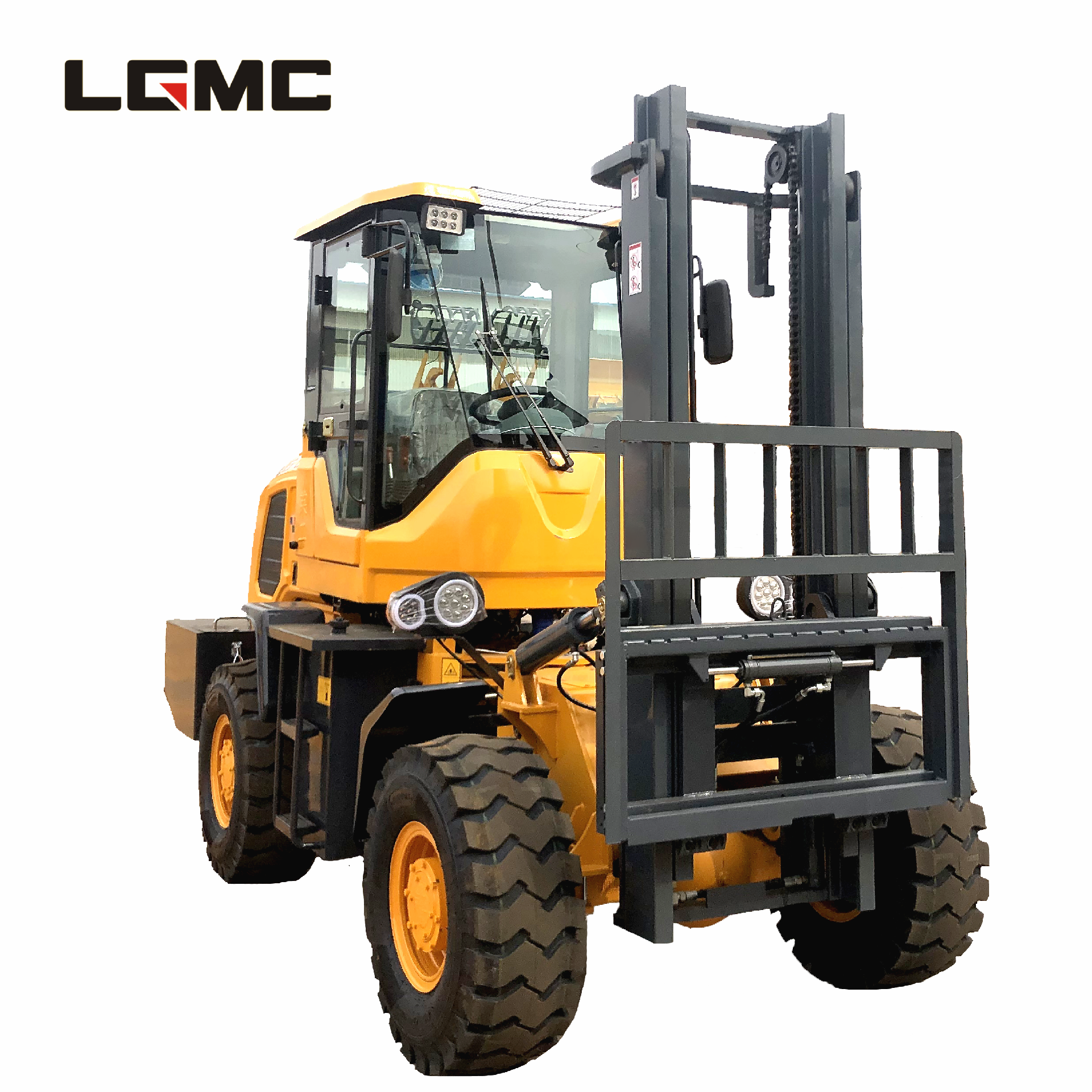

LC15F OFF-ROAD FORKLIFT

Main Features

1. The forklift door frame is made of 20 manganese silicon channel steel to ensure the hardness of the door frame and prolong the service life of the entire door frame.
2. The forks are forged forks to ensure the strength of the fork and improve the safety factor.
3. The intelligent electronic control system makes the vehicle control more refined and reduces the operating cost of the whole machine.

Detail Information

Description of Goods
LCMC Diesel Forklift
型号Model:
载重量Load Capacity：	1500kg
发动机Engine:	Yunnei 490/42KW
车桥Axle	130 bridge weighted steel bridge
轮胎Tyres	Semi-solid 10.00-16
变速箱Gearbox	265 gearbox
转弯半径Min.turning radius	4600mm
门架宽度Mast width	148mm
举升高度Lift height	3000mm
爬坡角度Full-load maximum gradeability	<35°
叉尺Fork size	1220mm
车架铰接Frame articulation	Front 200mm, rear 150mm
驱动方式Driving type	Four-wheel drive
最小离地间隙Minimum ground clearance	250mm
前倾角度Fornt tilt angle	14°
门架静止高度Mast height	2220mm
外观尺寸Diemension	3100/1300/2300mm
整机重量Machine weight	2680kg
