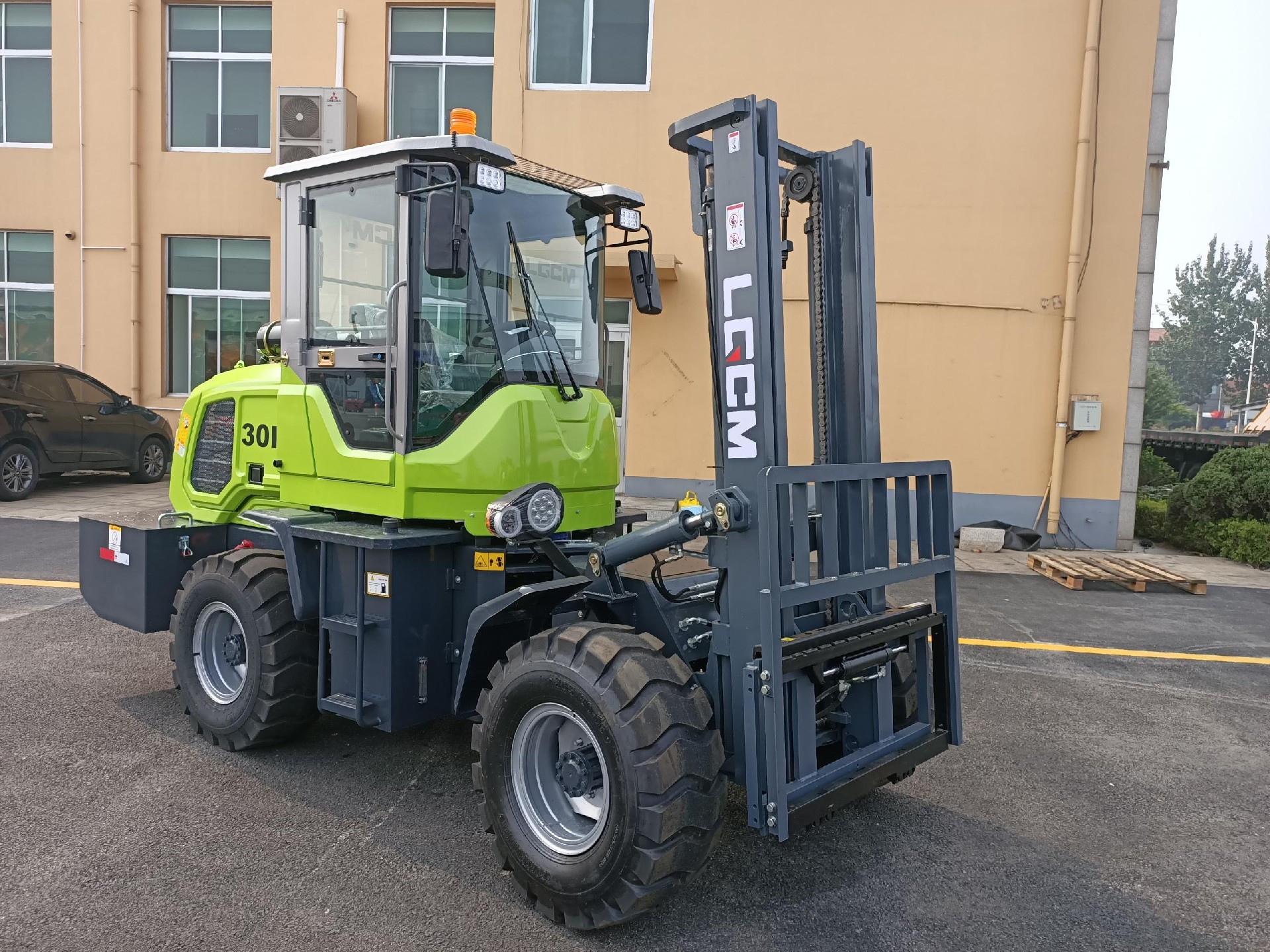

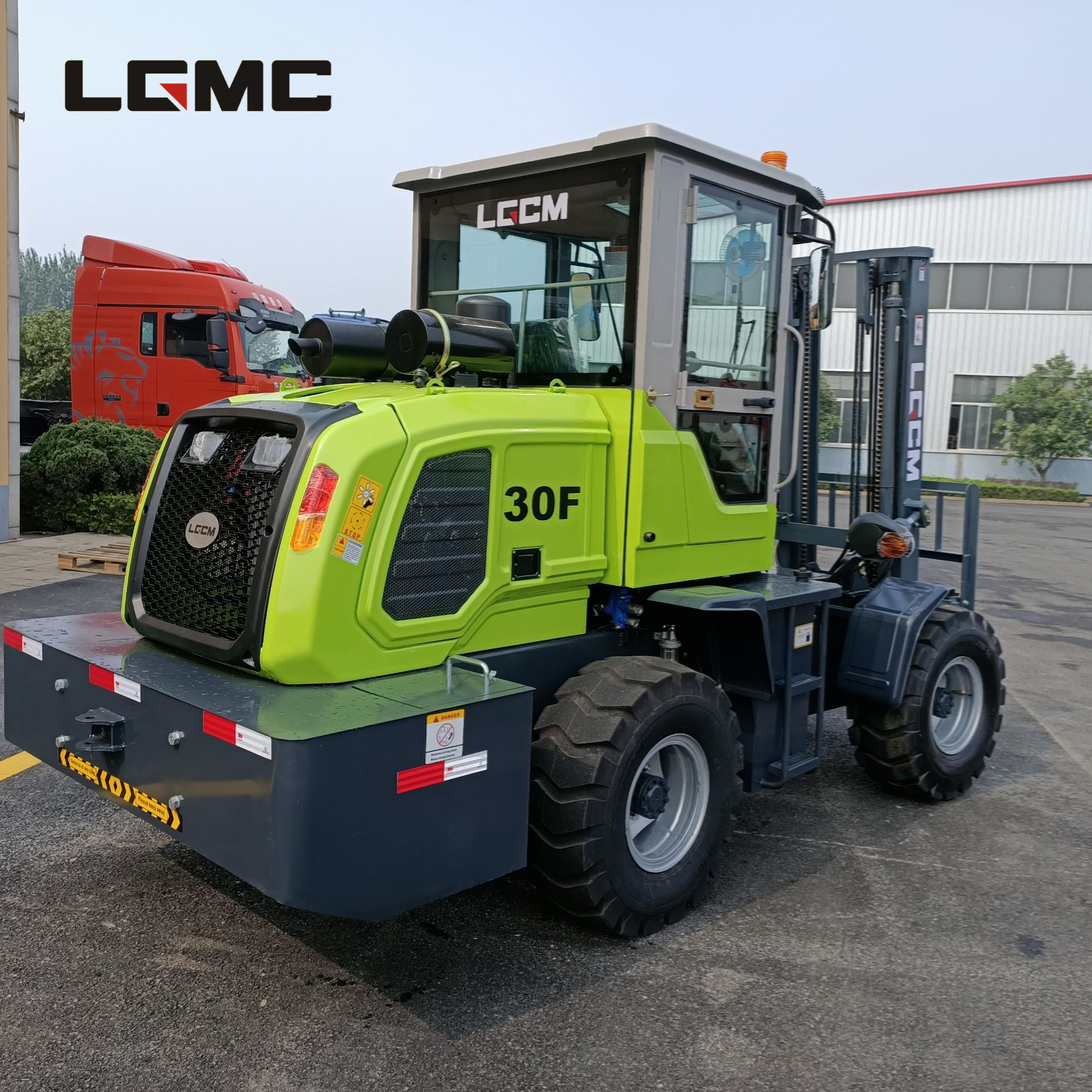

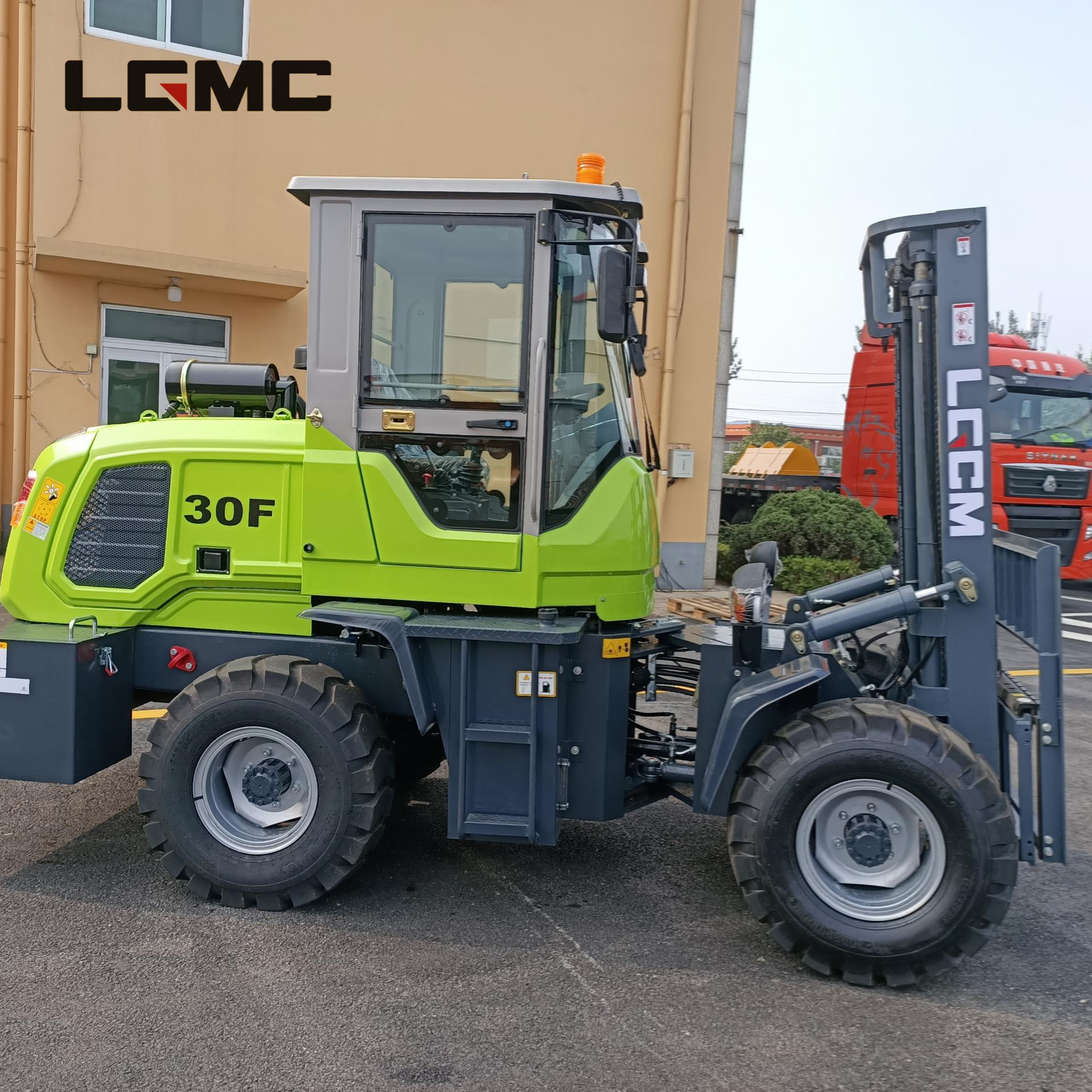

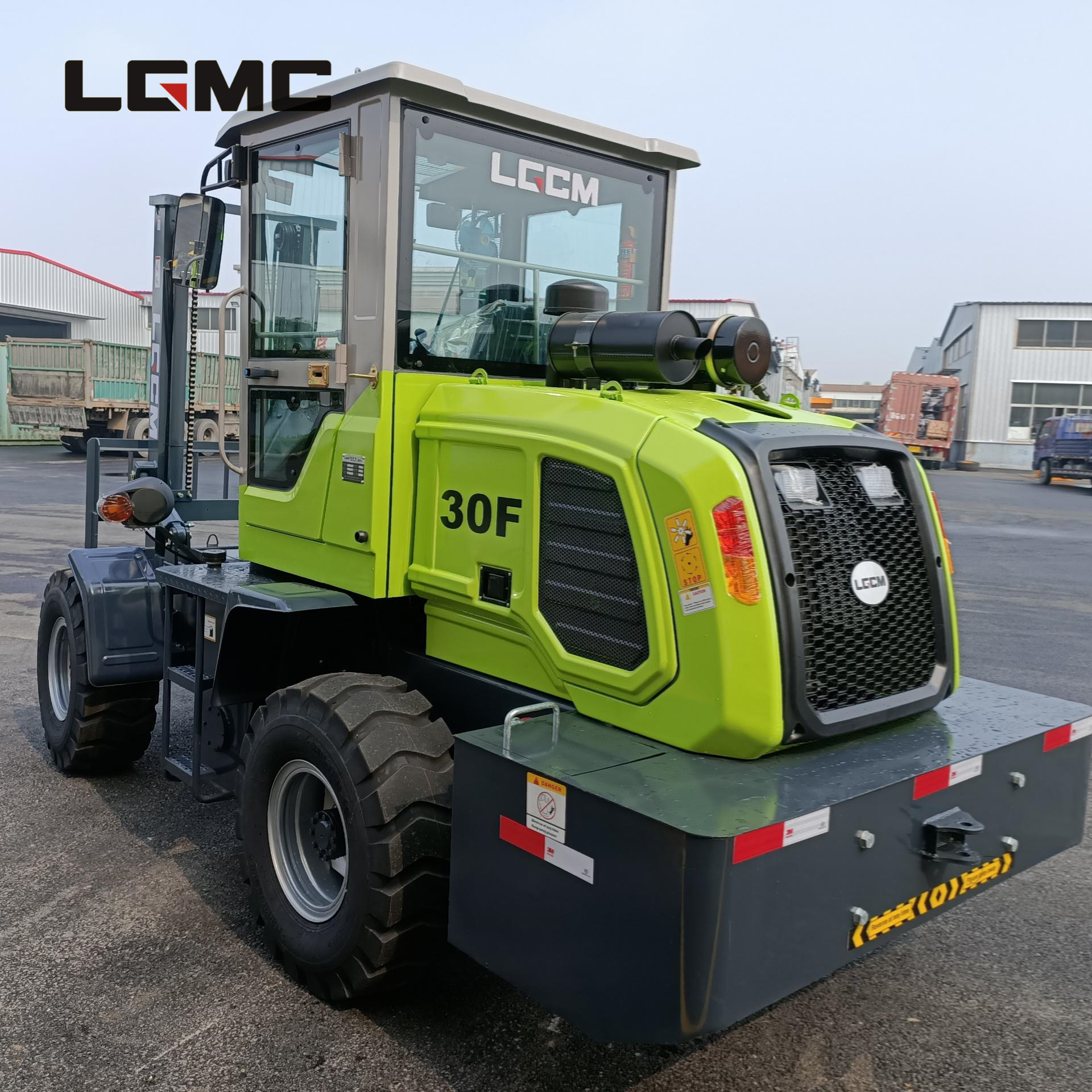

LC30F OFF-ROAD FORKLIFT
LC30F OFF-ROAD FORKLIFT
LC30F OFF-ROAD FORKLIFT
LC30F OFF-ROAD FORKLIFT
LC30F OFF-ROAD FORKLIFT

LC30F OFF-ROAD FORKLIFT

Main Features


1. The forklift door frame is made of 20 manganese silicon channel steel to ensure the hardness of the door frame and prolong the service life of the entire door frame.
2. The forks are forged forks to ensure the strength of the fork and improve the safety factor.
3. The intelligent electronic control system makes the vehicle control more refined and reduces the operating cost of the whole machine.




>
<

Detail Information

Description of Goods
LGMC Diesel Forklift
型号Model:LC30F
载重量Load Capacity:3000kg
发动机Engine:Yunnei 490/42KW
车桥AxleSmall wheel side weighted cast steel bridge
轮胎Tyres Steel wire tire 20.5/70-16
变速箱Gearbox265 double high low speed gearbox
转弯半径Min.turning radius4700mm
门架宽度Mast width160mm
举升高度Lift height3000mm
爬坡角度Full-load maximum gradeability<35°
叉尺Fork size1220mm
车架铰接Frame articulationFront 300mm, rear250mm
驱动方式Driving typeFour-wheel drive
最小离地间隙Minimum ground clearance250mm
前倾角度Fornt tilt angle 14°
门架静止高度Mast height2240mm
外观尺寸Diemension4160/1850/2500mm
整机重量Machine weight4390kg
