Guangxi Ligong Machinery Co.,Ltd
Description of Goods | |

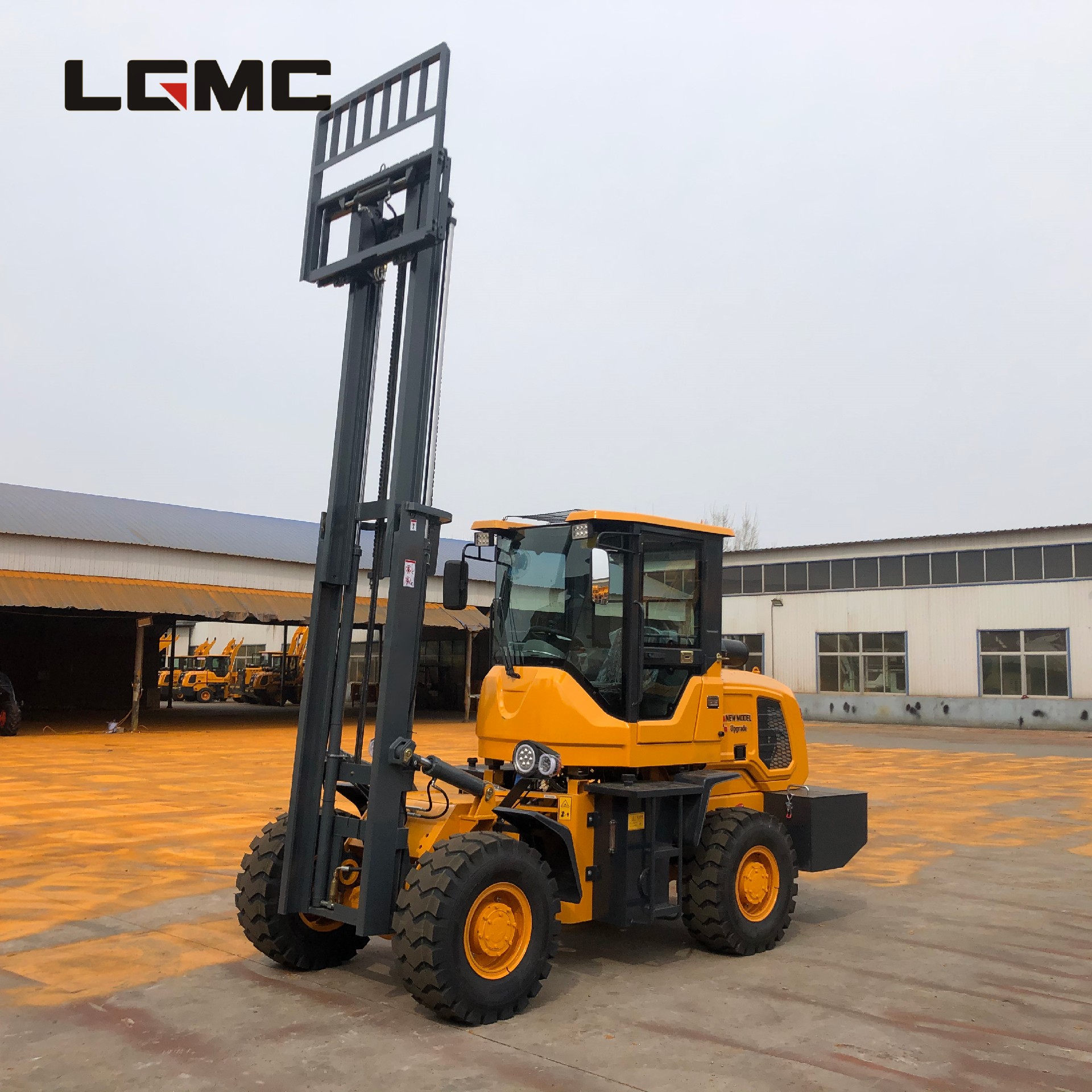

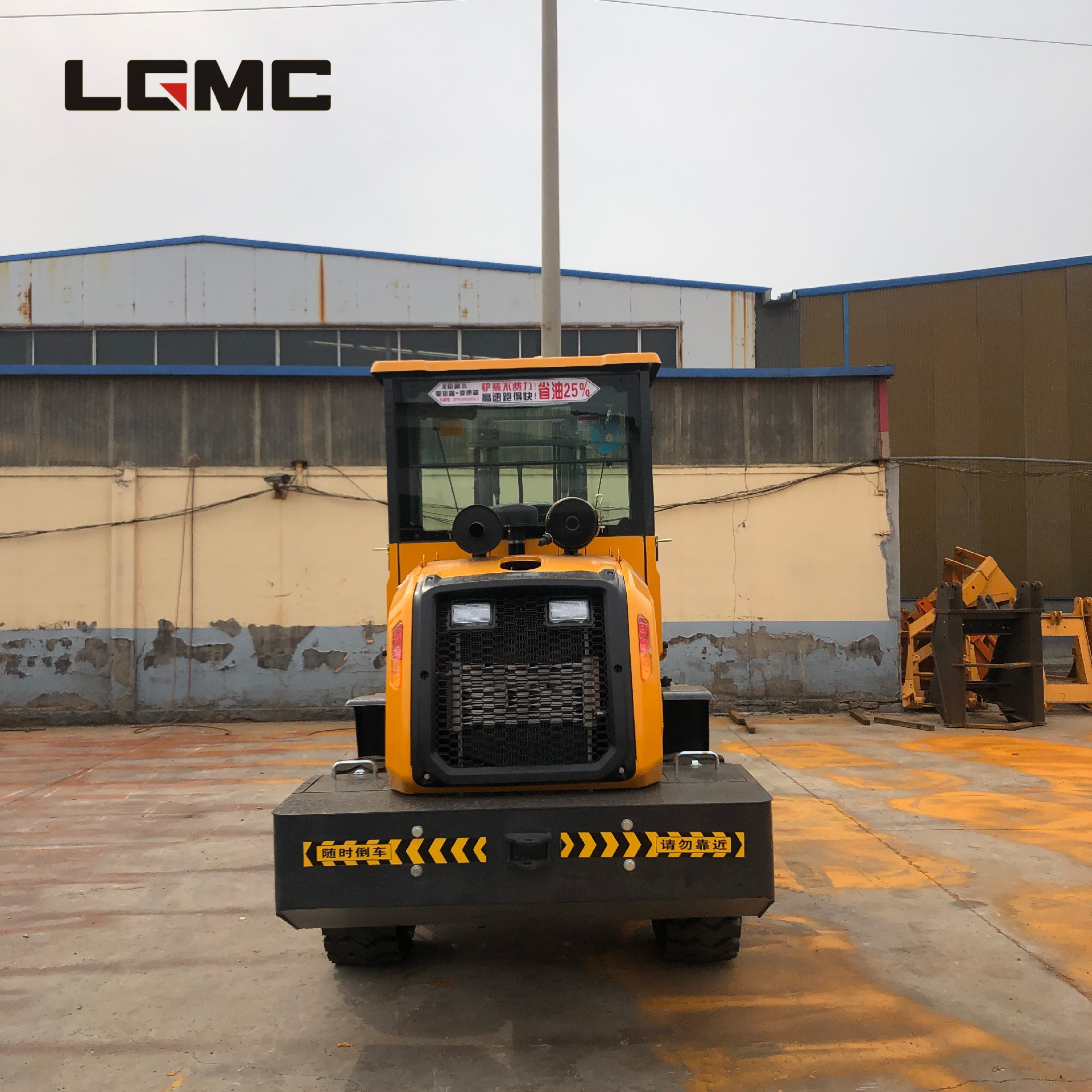

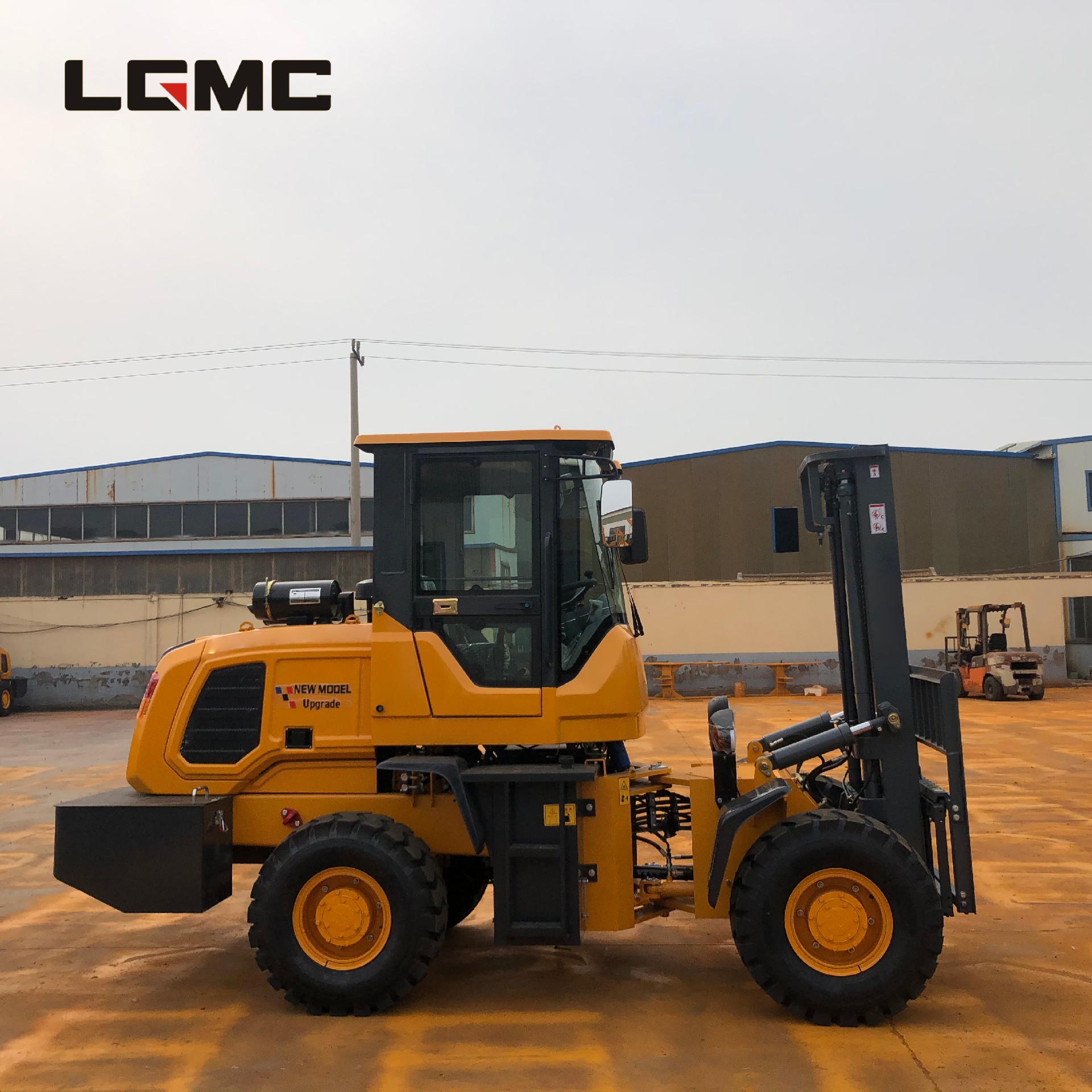

LGMC Diesel Forklift | |
型号Model: | LC30F宽视野WFOV |
载重量Load Capacity: | 3000kg |
发动机Engine: | Yunnei 490/42KW |
车桥Axle | Small wheel side weighted cast steel bridge |
轮胎Tyres | Steel wire tire 20.5/70-16 |
变速箱Gearbox | 265 double high low speed gearbox |
转弯半径Min.turning radius | 4700mm |
门架宽度Mast width | 160mm |
举升高度Lift height | 3000mm |
爬坡角度Full-load maximum gradeability | <35° |
叉尺Fork size | 1220mm |
车架铰接Frame articulation | Front 300mm, rear250mm |
驱动方式Driving type | Four-wheel drive |
最小离地间隙Minimum ground clearance | 250mm |
前倾角度Fornt tilt angle | 14° |
门架静止高度Mast height | 2240mm |
外观尺寸Diemension | 4030/1800/2300mm |
整机重量Machine weight | 4390kg |
