Product Details

Guangxi Ligong Machinery Co.,Ltd

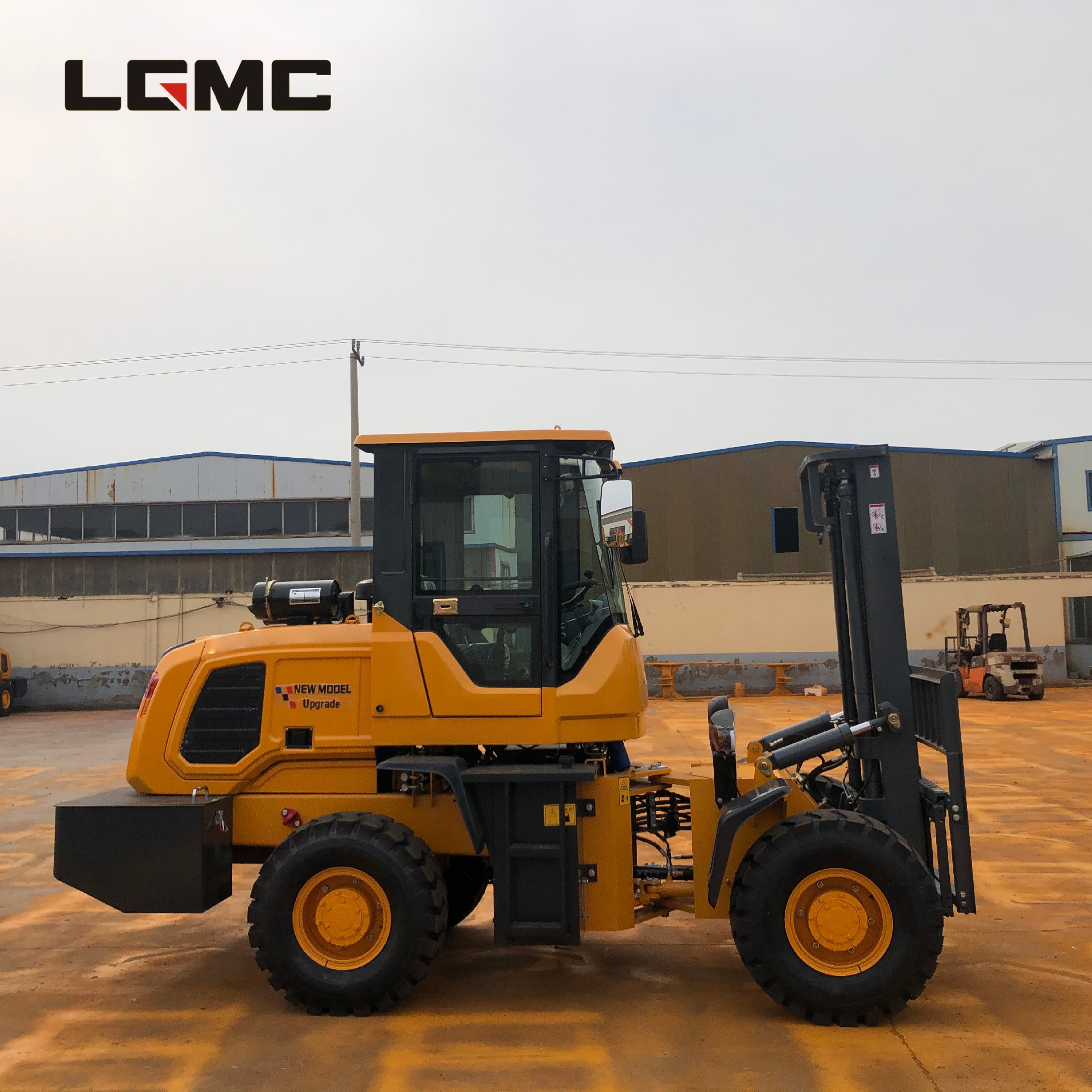

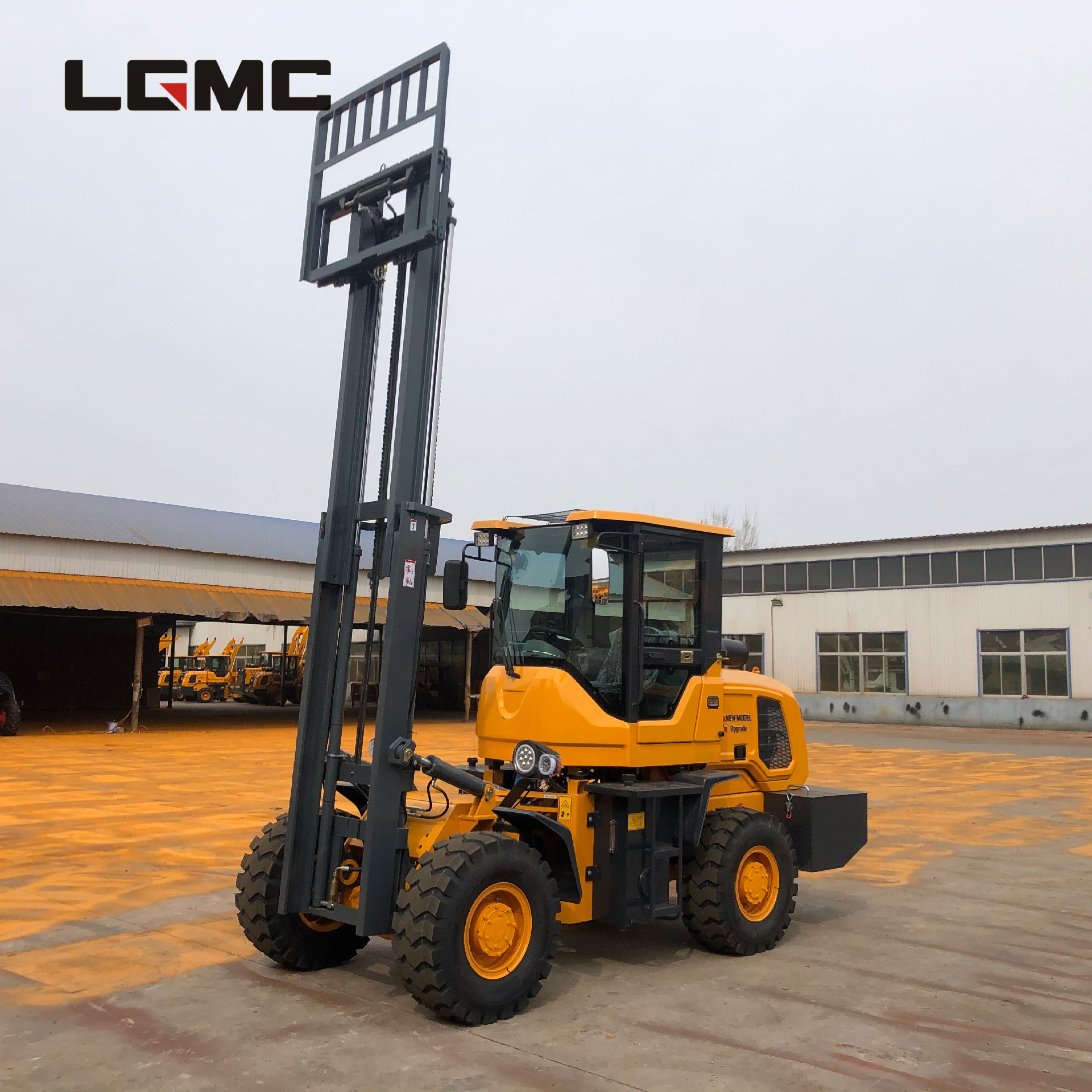

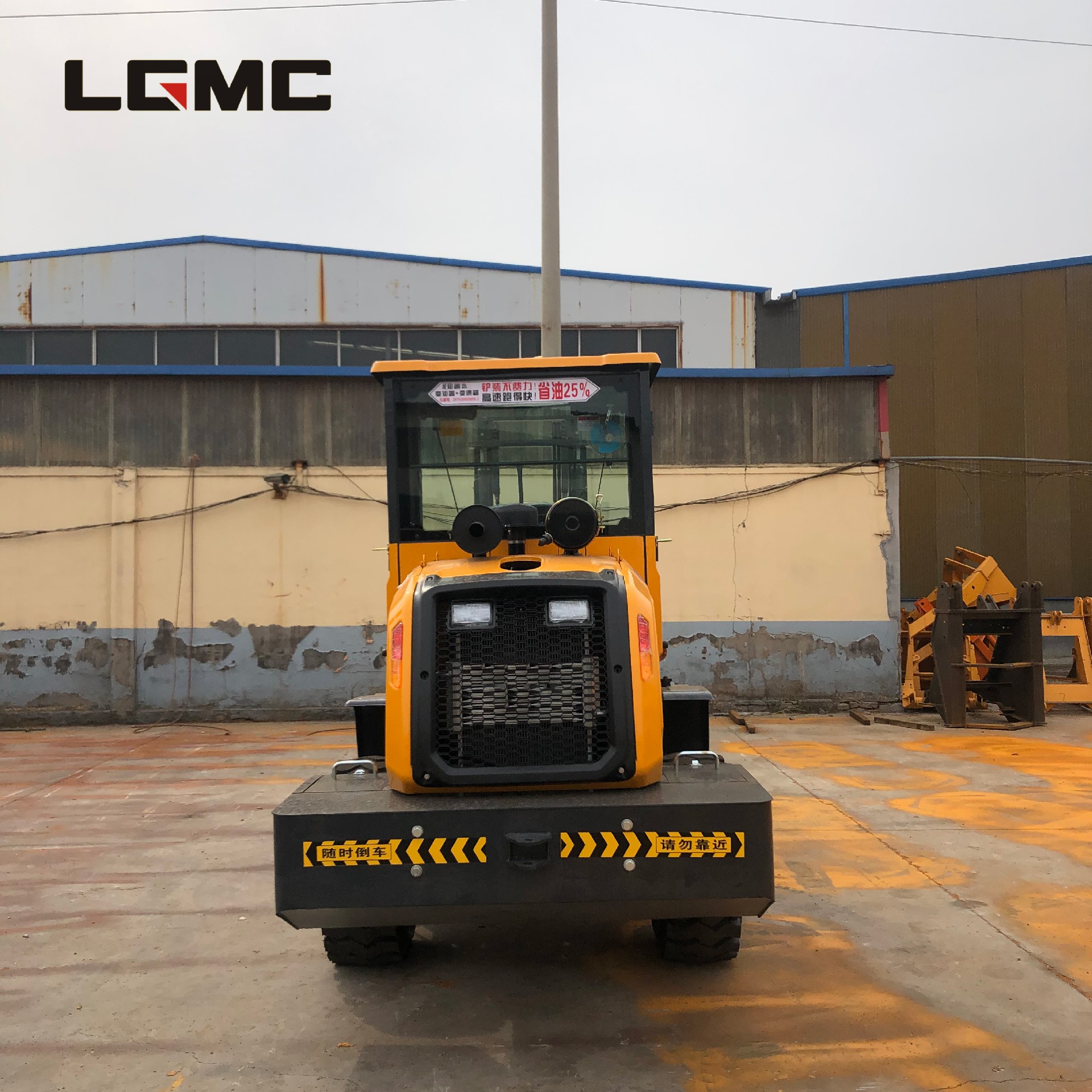

LG40F OFF-ROAD FORKLIFT

Main Features

1. The forklift door frame is made of 20 manganese silicon channel steel to ensure the hardness of the door frame and prolong the service life of the entire door frame.
2. The forks are forged forks to ensure the strength of the fork and improve the safety factor.
3. The intelligent electronic control system makes the vehicle control more refined and reduces the operating cost of the whole machine.

Detail Information

Description of Goods
LGMC Diesel Forklift
型号Model:	LG40F
载重量Load Capacity：	4000kg
发动机Engine:	Yunnei 4100/65KW
车桥Axle	Middle wheel side weighted cast steel bridge
轮胎Tyres	Steel wire tire 16/70-20
变速箱Gearbox	280 double high low speed gearbox
转弯半径Min.turning radius	4800mm
门架宽度Mast width	180mm
举升高度Lift height	3000mm
爬坡角度Full-load maximum gradeability	<35°
叉尺Fork size	1220mm
车架铰接Frame articulation	Front 400mm, rear300mm
驱动方式Driving type	Four-wheel drive
最小离地间隙Minimum ground clearance	300mm
前倾角度Fornt tilt angle	14°
门架静止高度Mast height	2790mm
外观尺寸Diemension	4150/1945/2450mm
整机重量Machine weight	4810kg
