The main features are as follows:
1、The shape of the whole machine is more modern;
2、Using diesel engine, strong power, low fuel consumption, high reliability;
3、The market-tested, mature and stable chassis is adopted to ensure the interchangeability and reliability of the transmission system;
4、The monitoring system adopts the intelligent instrument of the international famous brand company, which has higher reliability and more accurate and intuitive display;
5、Adopt international well-known brand Hella brand headlights, which is more reliable;
6、The injection-molded instrument panel is beautiful and more user-friendly; the air conditioner and instruments are installed in the instrument panel, which saves space and improves the maintainability;

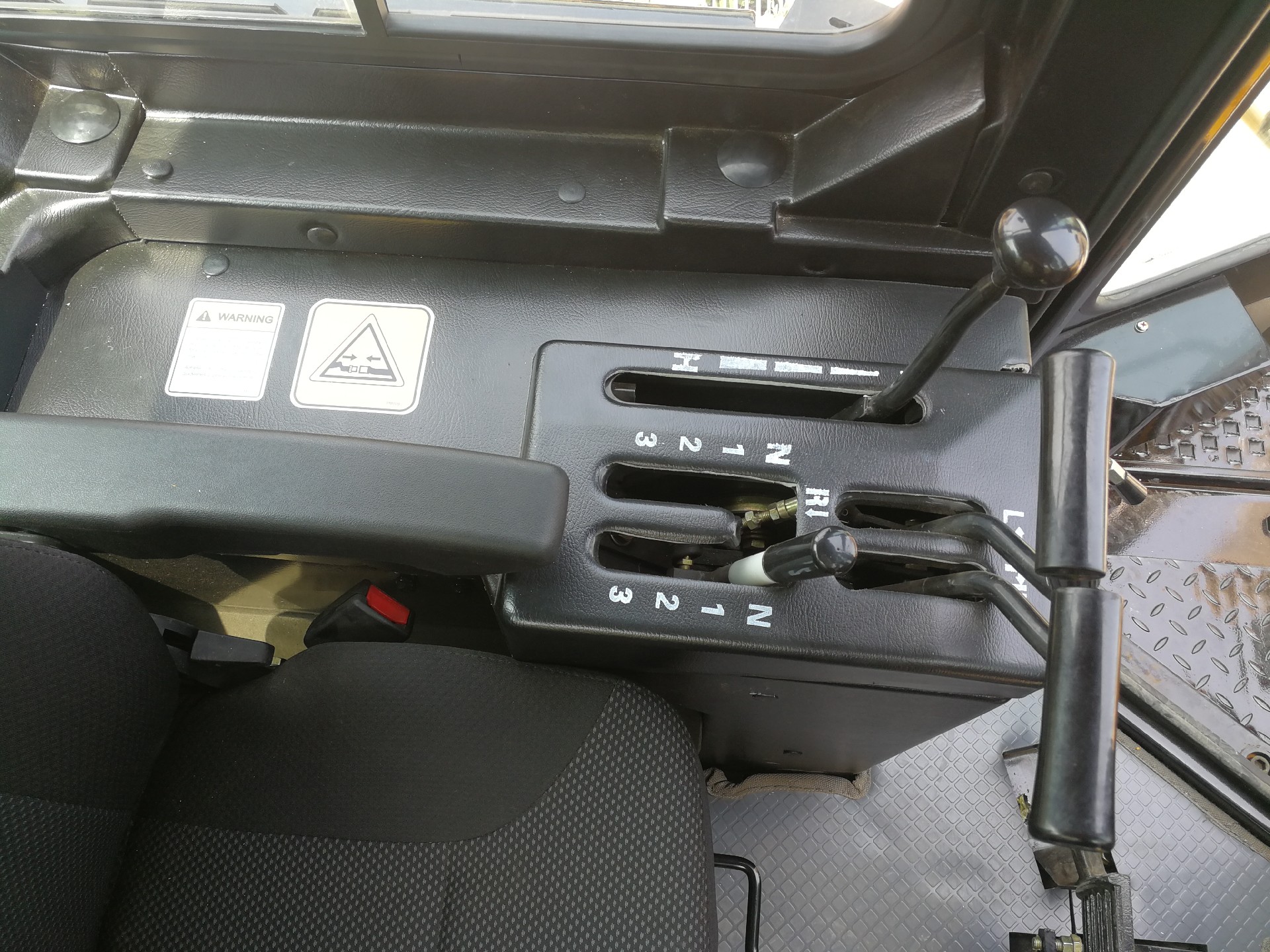

7、The operating system is ergonomically designed, and the joysticks are concentrated on both sides; the joysticks more suitable for human hands are used to improve the comfort of operation;
LC-HD16 | ||||
整机 Overall | 尺寸 Dimension | 5140×3388×3032 mm | ||
操作重量 Operating Weight | 17000 kg | |||
发动机 ENGINE | 型号 Model | Weichai WD10G178E25 | ||
类型 Type | 水冷,直列,4冲程,直接喷射 Water-cooled, in-line, 4-stroke,direct injection | |||
缸数 Number of Cylinders | 6 | |||
缸径×行程 Bore × Stroke | Φ126×130 mm | |||
排量 Piston Displacement | 9.726 L | |||
额定功率 Rated Power | 131 KW (178HP) @1850 rpm | |||
最大扭矩 Max Torque | 765 N·m @1300 rpm | |||
最小耗油量 Fuel Consumption | 214 g/kW·h | |||
TRANSMISSION | 液力变矩器 Torque Converter | 单级单相三元件 3-element, 1 stage, 1 phase | ||
变速箱 Transmission | 行星齿轮型、动力换挡、强制润滑 Planetary gear type, power-shift, forced lubrication | |||
中央传动 Central Drive Shaft | 螺旋锥齿轮、一级减速、飞溅润滑、单级减速 Spiral bevel gear, single-stage speed reduction, splash lubrication | |||
转向离合器 Steering clutch | 湿式、多片、弹簧压紧、液压分离、液压操纵 Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
转向制动器 Steering brake | 湿式、浮动式、直接操纵、 液压联动 Wet type,floating band structure,foot brake with hydraulic booster | |||
终传动 Final drive | 直齿二级减速、飞溅润滑式2-stage speed reduction of spur gear, splash lubrication | |||
速度 TRAVEL SPEED | 档位 Gear | 1st | 2nd | 3rd |
前进 Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |
后退 Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |

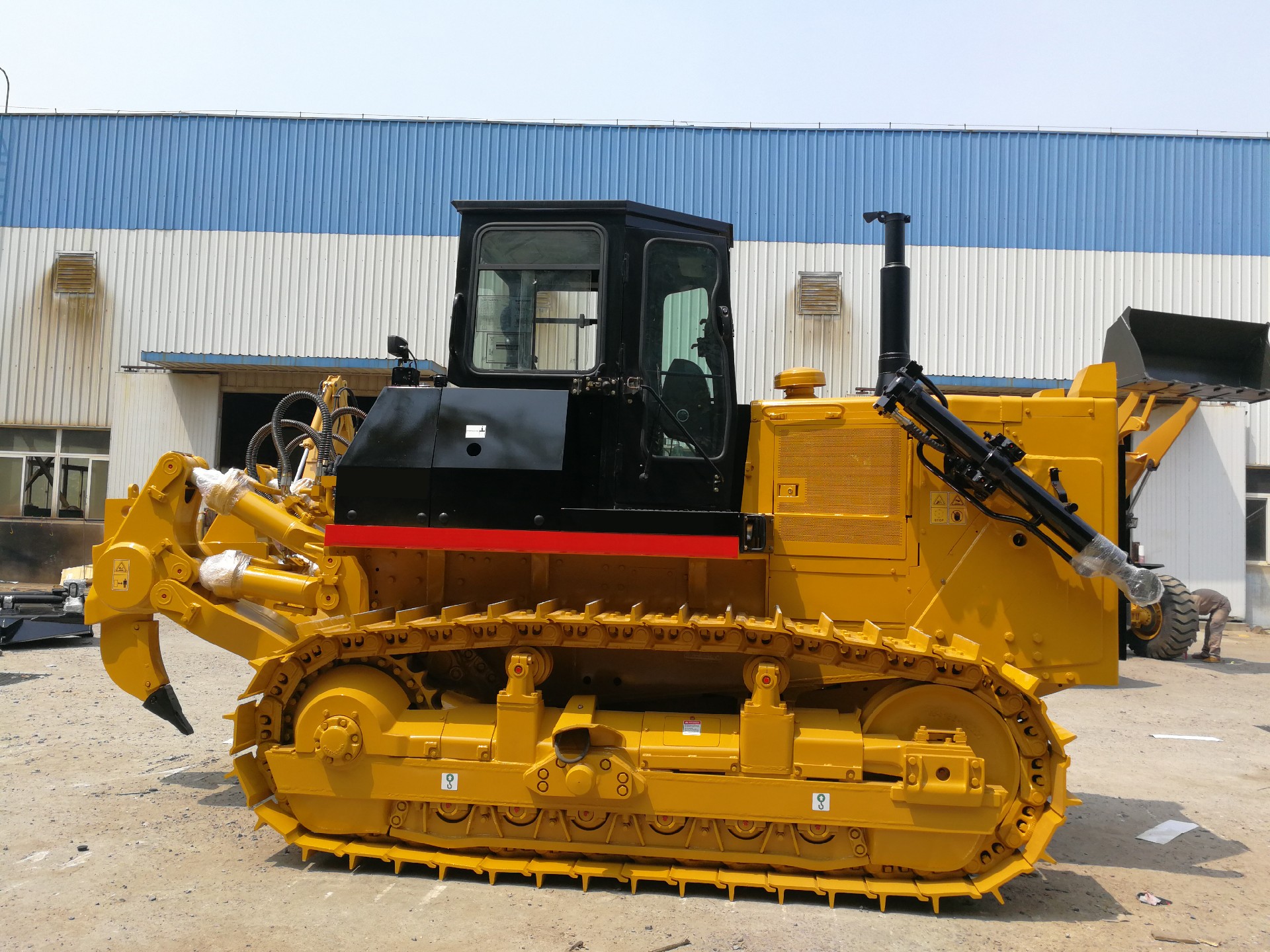

底盘系统 UNDERCARRIAGE SYSTEM | 类型 Type | 八字梁摆动式,平衡梁悬挂结构 Sprayed beam, suspended structure of equalizer | ||
托轮数量 No. of Carrier Rollers | 2 each side | |||
支重轮数量 No. of Track Rollers | 6 each side | |||
履带板数量 No. of Track Shoes | 37 each side | |||
履带板类型 Track Shoe type | 装配式单履齿 Single Grouser | |||
履带板宽度 Width of Track shoe | 510 mm | |||
链轨节距 Pitch | 203.2 mm | |||
履带中心距 Track Gauge | 1880 mm | |||
接地比压 Ground Pressure | 0.067 Mpa | |||
液压系统 HYDRAULIC SYSTEM | 最高工作油压 Max Pressure | 14 Mpa | ||
油泵类型 Pump Type | Gear Pump | |||
流量 Displacement | 243 L/Min | |||
工作油缸内径×数量 Bore of Working Cylinder | 110 mm × 2 | |||

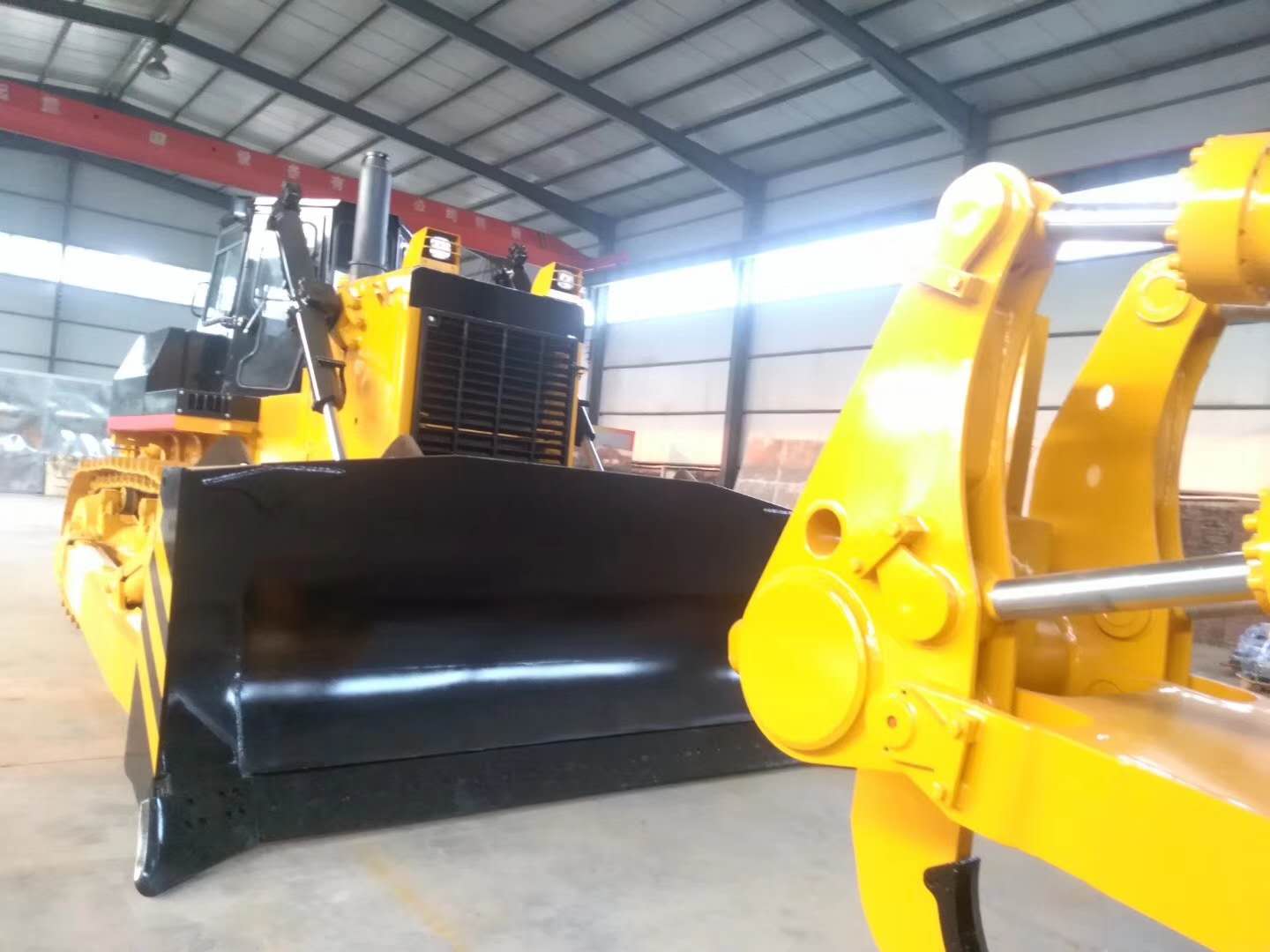

铲刀 BLADE | 铲刀类型 Blade Type | 直倾铲 Straight-tilt Blade | 角铲 Angle Blade | 半U铲 Semi-U-blade |
铲刀容量 Blade Capacity | 4.5 m³ | 4.3 m³ | 5 m³ | |
铲刀宽度 Blade Width | 3388 mm | 3970 mm | 3556 mm | |
铲刀高度 Blade Height | 1150 mm | 1040 mm | 1120 mm | |
最大铲土深度 Max Drop Below Ground | 540 mm | 540 mm | 530 mm | |
最大倾斜 MaxTilt Adjustment | 400 mm | – | 400 mm | |

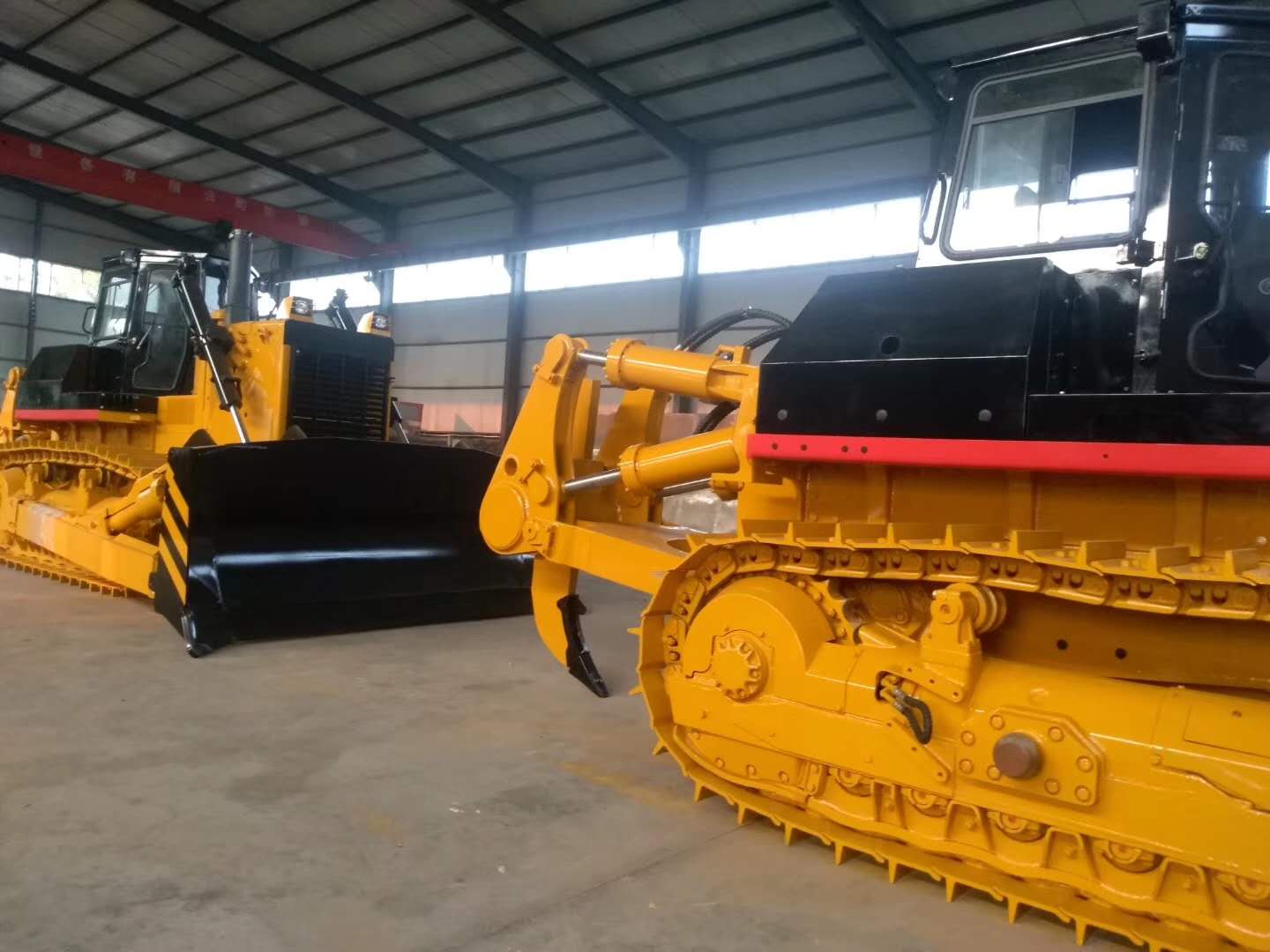

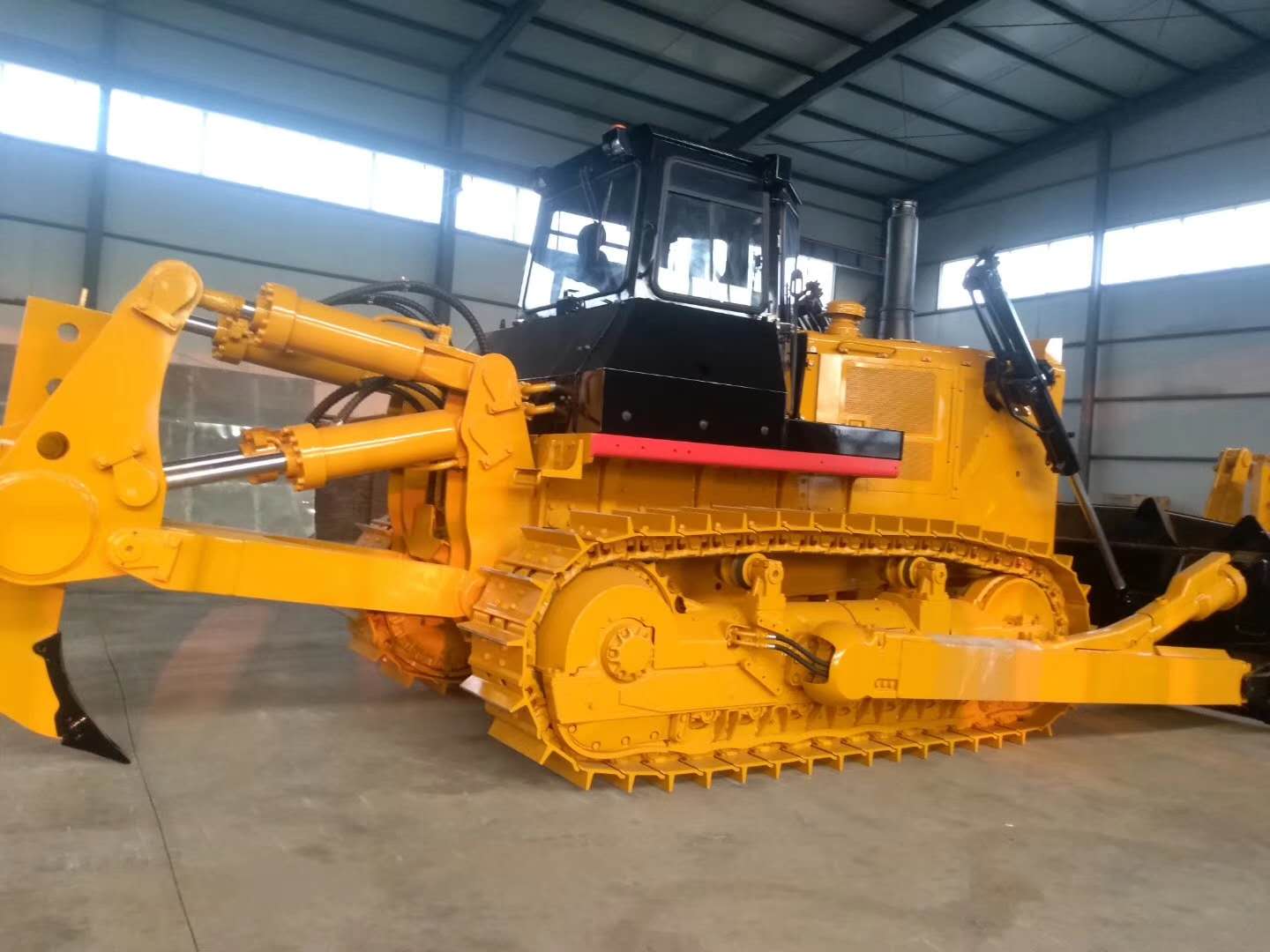

三齿松土器 THREE SHANK RIPPER | 最大松土深度 Max digging depth | 572 mm | ||
最大离地提升高度 Max lift above ground | 592 mm | |||
重量 Weight of 3-shank ripper | 1667 kg |
