Guangxi Ligong Machinery Co.,Ltd

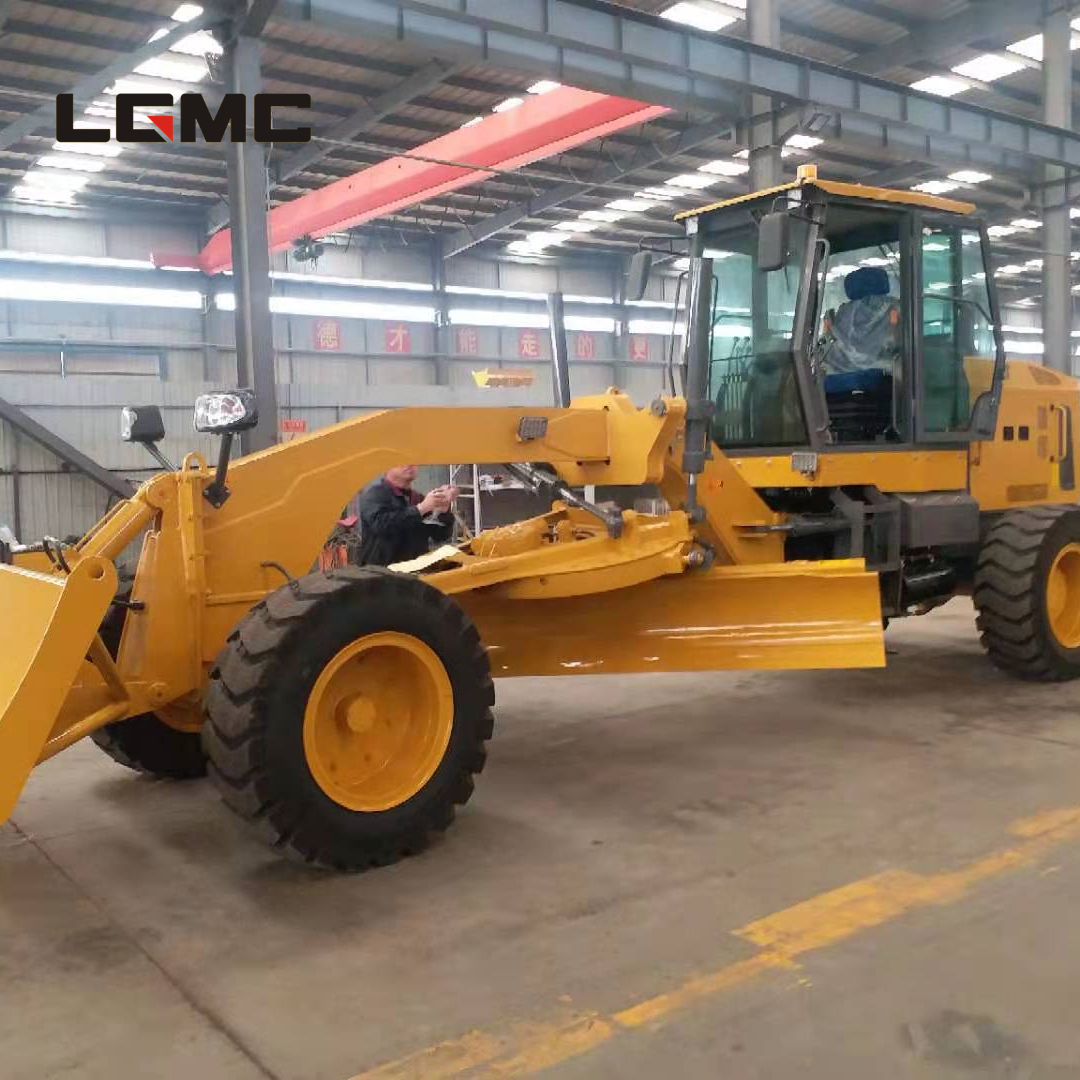

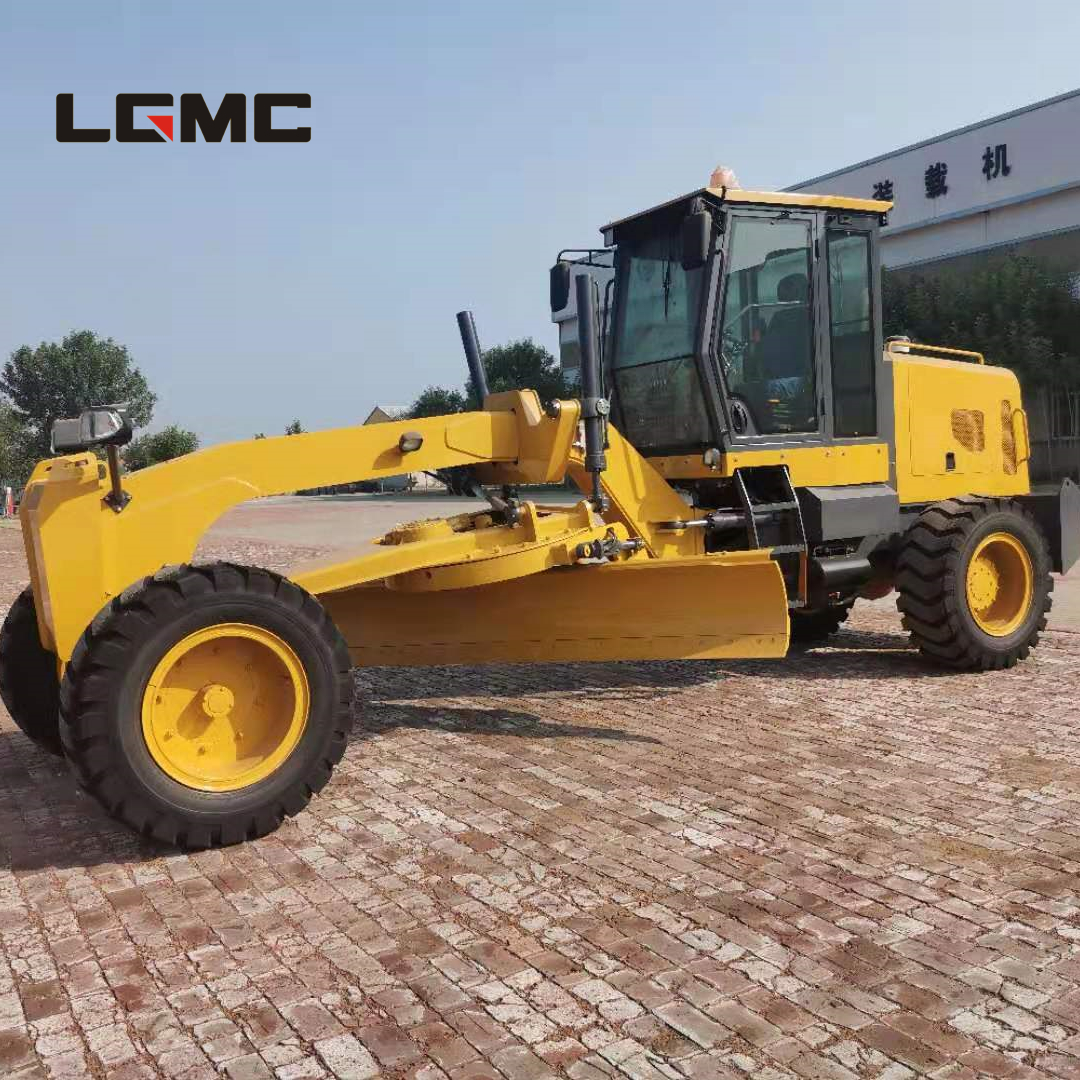

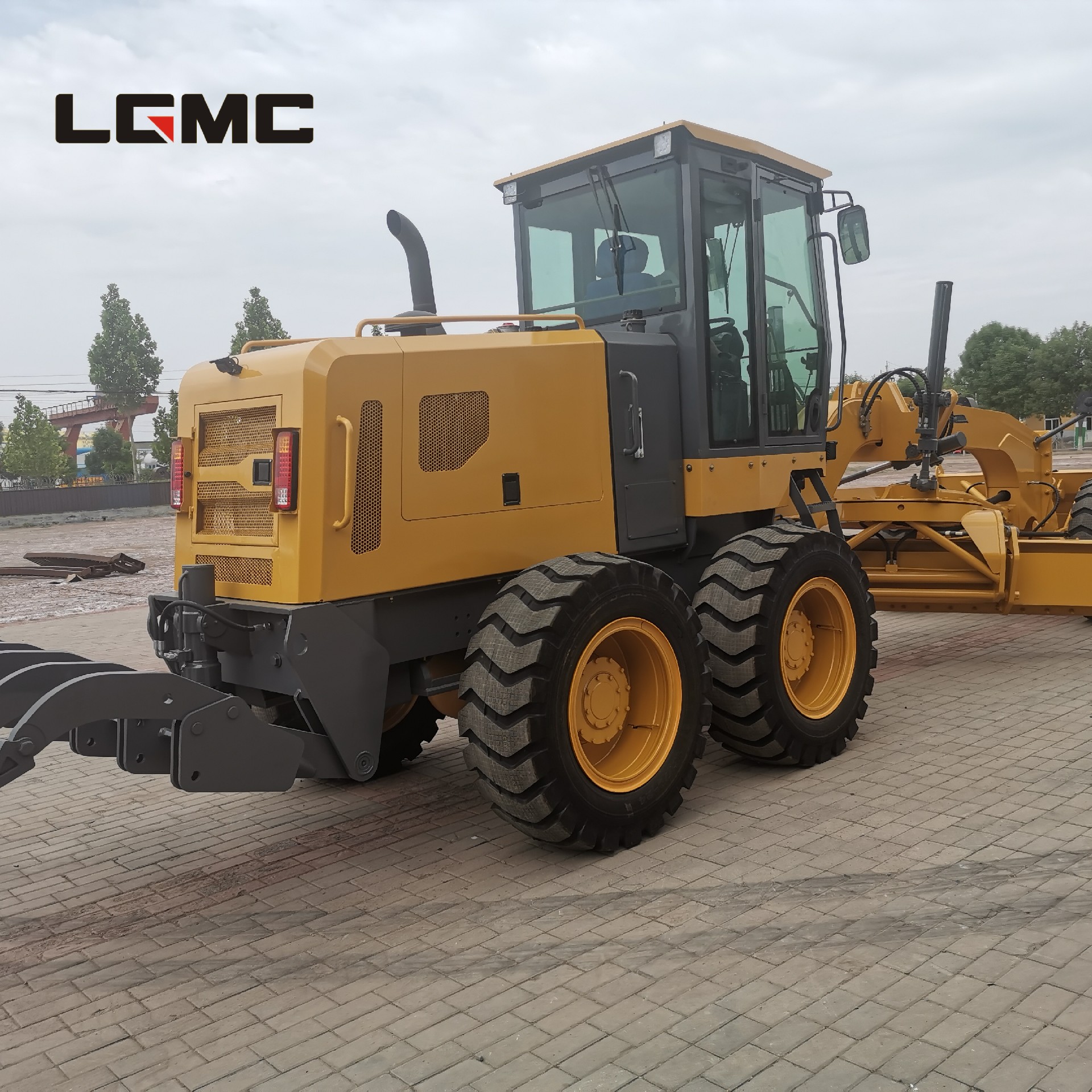

LC-PY220
LC-PY220
LC-PY220

LC-PY220

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

·Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3 reverse shifts makes operation easy and convenient
·Hydraulic lock, auto lock/unlock  differential ensures stability and powerful traction
·Ideal axle load allocation provides excellent stability while cutting hard surface
·Serviceable, efficient hydraulic system enables every part to be fully used
·Box-typed frame and advanced T/M enable it to complete heavy-duty work
·A wide working range is accomplished through flexible blade suspension system and articulated frame



>
<

Detail Information

LC-PY220 SPECIFICATIONS
Overall DimensionLength*Weight*Height9000*2550*3350mm
Mini ground clearance of front axle500mm
Ground clearance of rear axle345mm
Wheel tread2130mm
wheel base7140mm
EngineBrandWP6G220
Rated power/speed220hp/2400
Certified capacity9.72L
Minimum fuel consumption rate≤230g/(kw.h)
Overall parametersOverall weight15600kg
Max.swinging angle of front axle±16°
Max. steering angle of front wheel±45°
Steering angle of articulated frame±25°
Cutter size(L×H×T)4256×600×20mm
Swing angle of balde360°
Ground clearance of blade450mm
Cutting depth of blade360mm
Incination angle of bladeForward 47°/backward 5°
Sliding range of bladeLeft 600/right 600mm
Max. speed (Forward/reverse)44km/h33km/h
Gearbox typeFixed shaft power stage
Torque converterSingle-stage single-phase three-element
GearsForward 4reverse 4
Tire type17.5-25
Hydraulic systemTypeOpen-type system
System pressure16MPa
Fill capacityFuel210L
Hyfraulic oil130L
