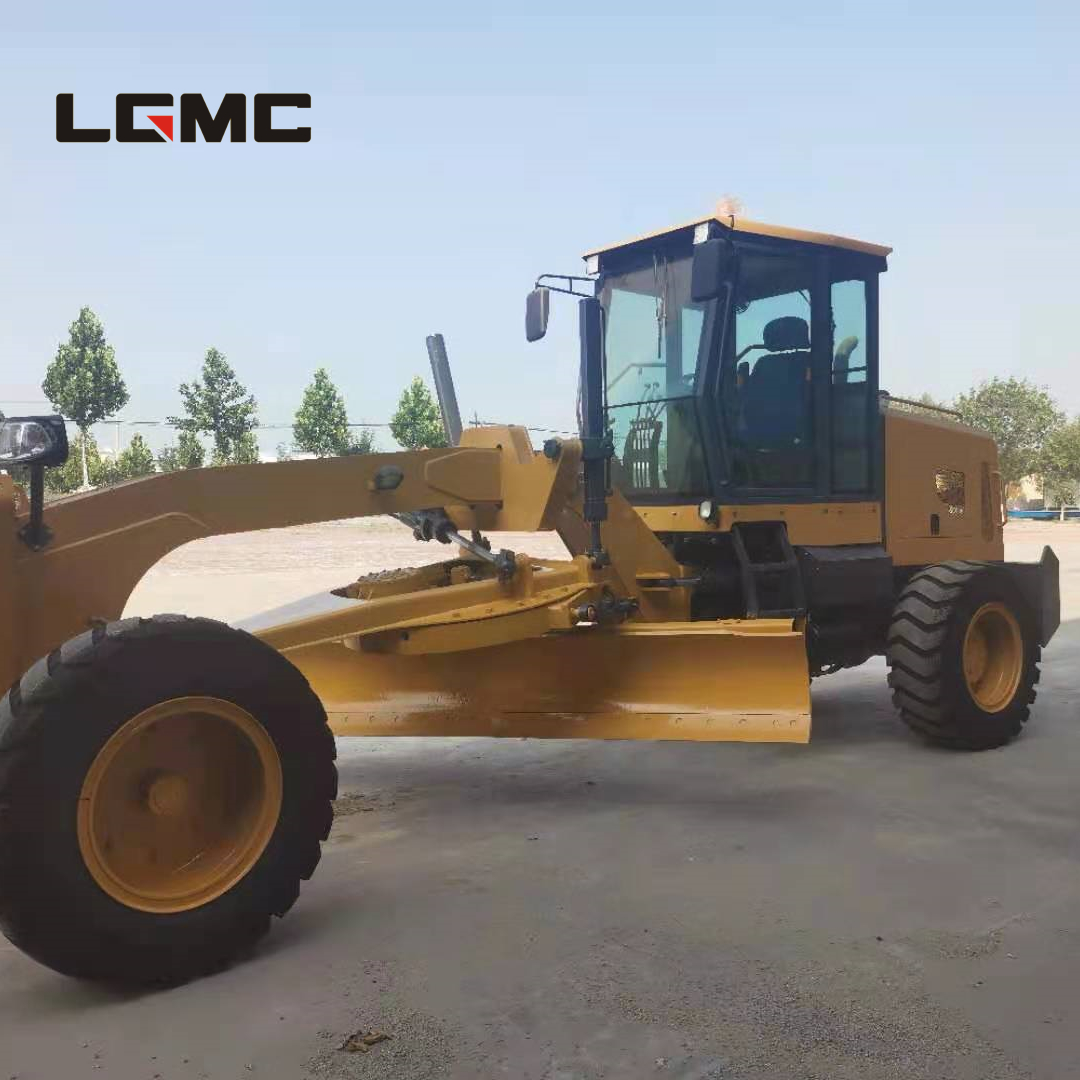

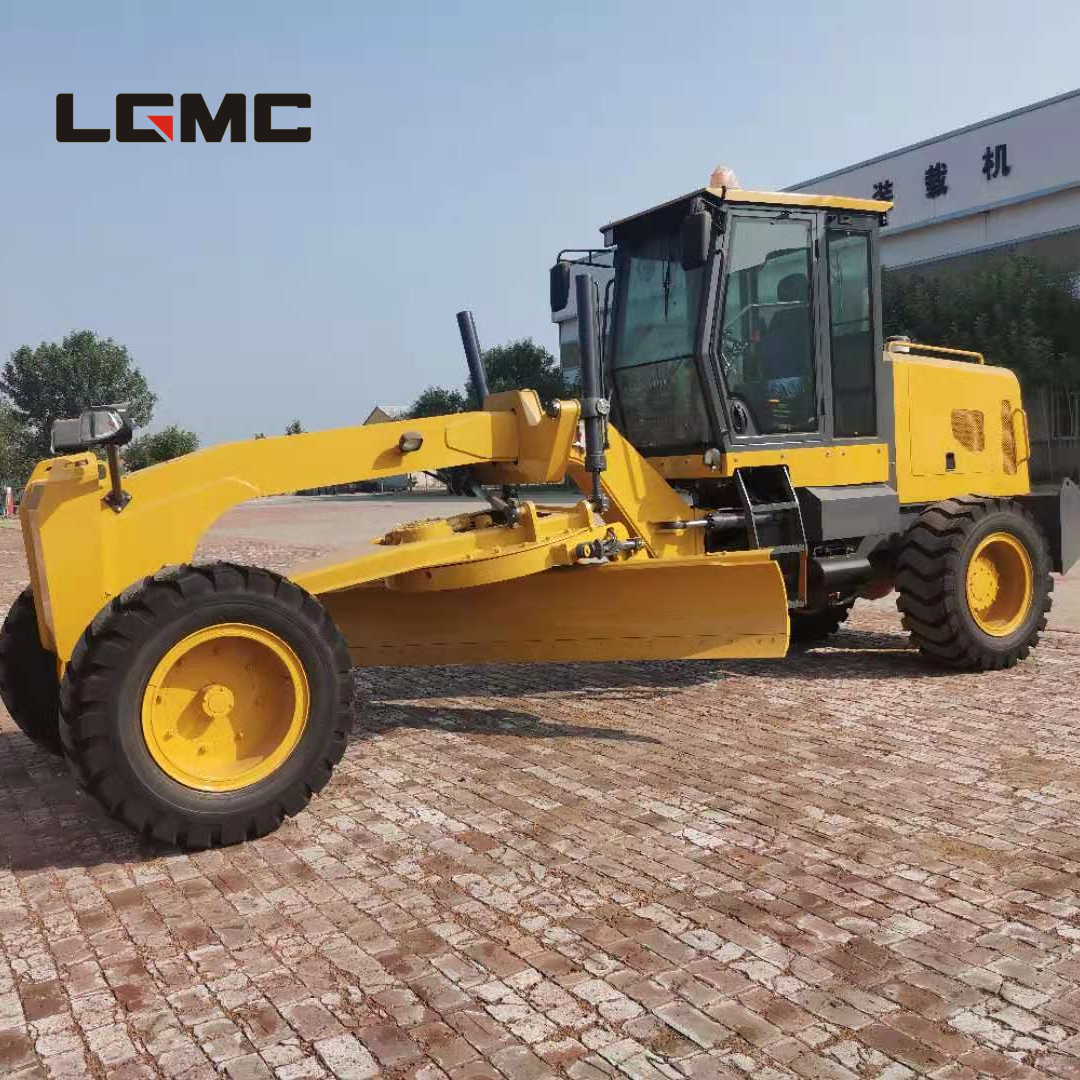

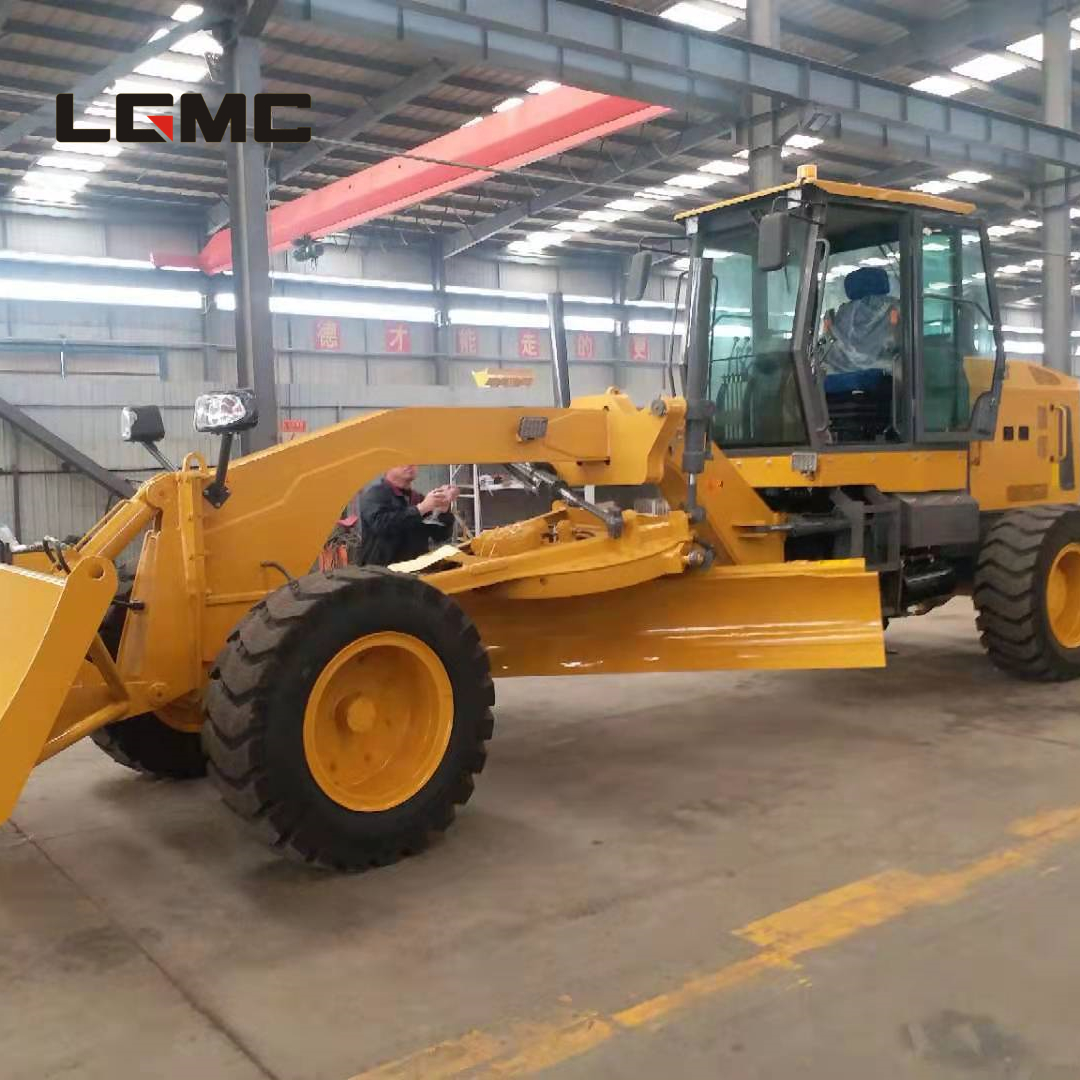

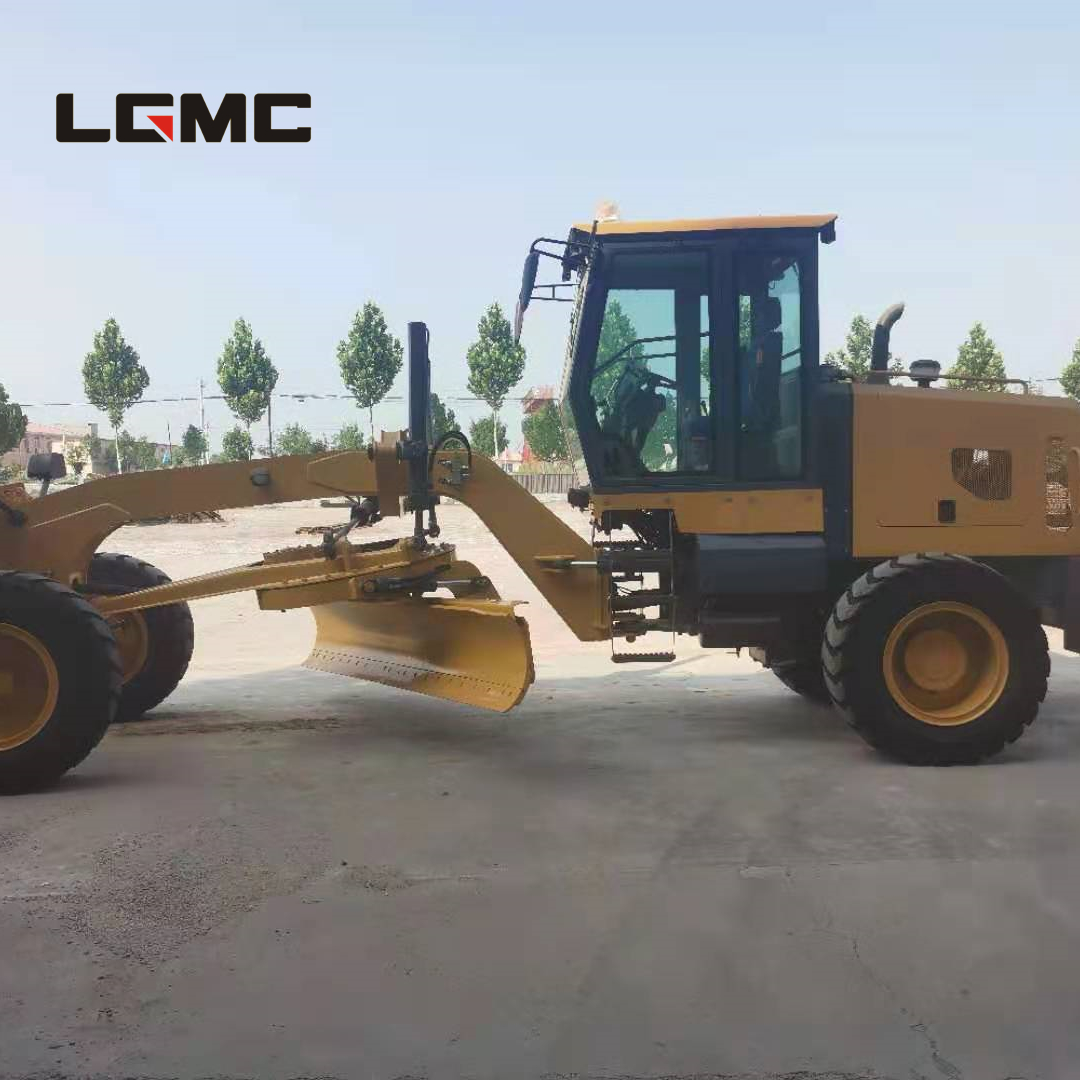

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
·Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3 reverse shifts makes operation easy and convenient
·Hydraulic lock, auto lock/unlock differential ensures stability and powerful traction
·Ideal axle load allocation provides excellent stability while cutting hard surface
·Serviceable, efficient hydraulic system enables every part to be fully used
·Box-typed frame and advanced T/M enable it to complete heavy-duty work
·A wide working range is accomplished through flexible blade suspension system and articulated frame
General Specification LC-PY9120 | |||
Overall weight | 6200 kg | Steering angle of blade | 360° |
LxWxH | 6500x2050x3050 mm | Ground clearance of blade | 450 mm |
Engine | YN38GBZ | Cutting depth of blade | 260 mm |
Rated power | 76 kw | Inclination angle of blade | Forward 47° backward 5° |
Type | Inline,water-cooled,four-stroke,direct injection | Sliding range of blade | Left 500mm right 500mm |
Detail Specification | Transmission System | ||
Min. ground clearance of front axle | 450 mm | Max. speed (Forward/reverse) | 40km/h 30km/h |
Min. ground clearance of rear axle | 410 mm | Gearbox type | Fixed shaft power stage |
Wheel tread | 1590 mm | Torque converter | Single-stage single-phase three-element |
Wheelbase(front/rear) | 4590 mm | Gears | Forward 4 reverse 4 |
Max. swing angle of front axle | ±16° | Tire type | 16/70-20 |
Max. steering angle of front wheel | ±45° | Hydraulic system | Open type system |
Steering angle of articulated frame | ±23° | Pressure | 16Mpa |
Blade Information | Fuel capacity | 90L | |
Blade size (LxHxT) | 3040x500x16 mm | Hydraulic oil capacity | 70L |
Blade plate diameter | 1250 mm |
