Guangxi Ligong Machinery Co.,Ltd

LC-PY9140
LC-PY9140
LC-PY9140

LC-PY9140

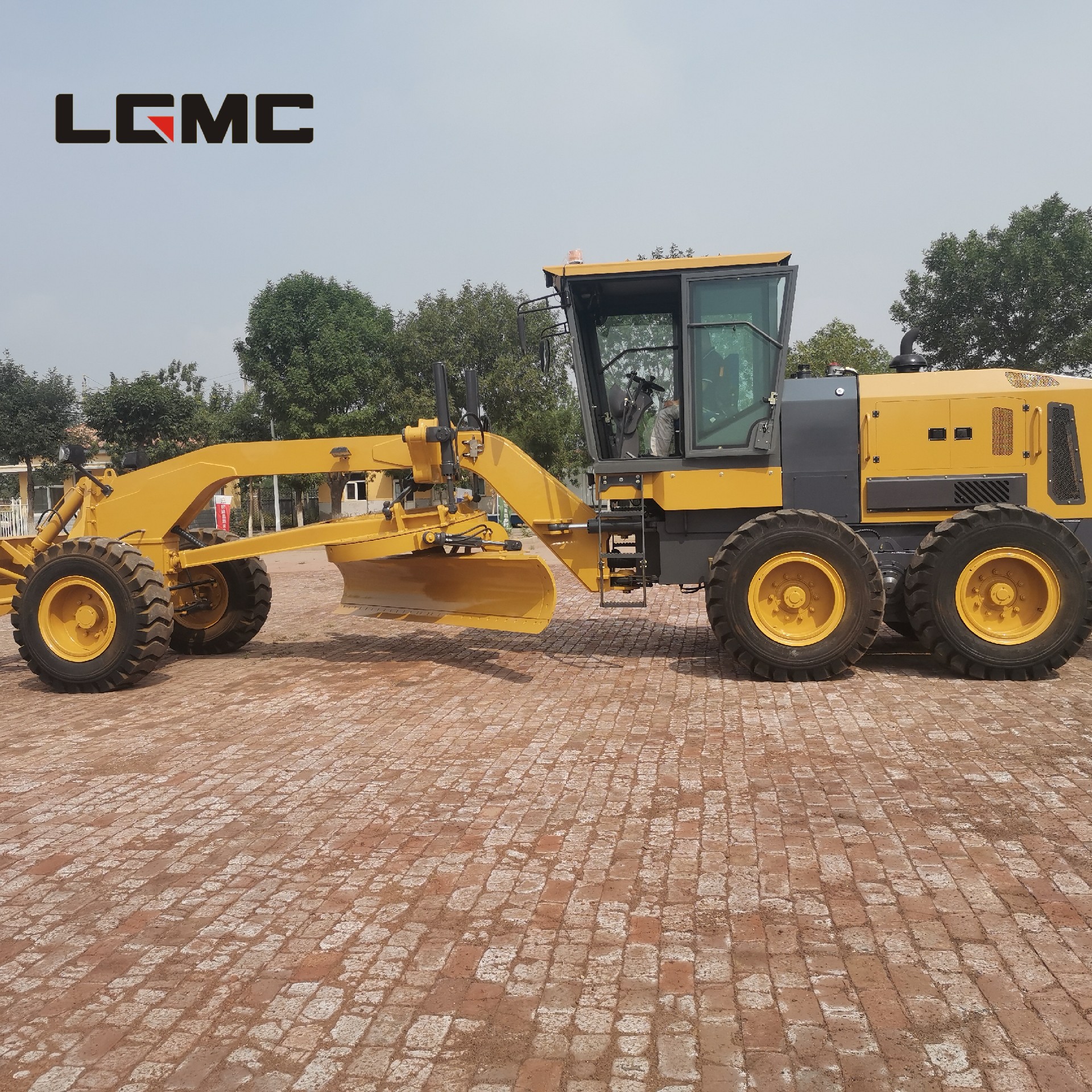

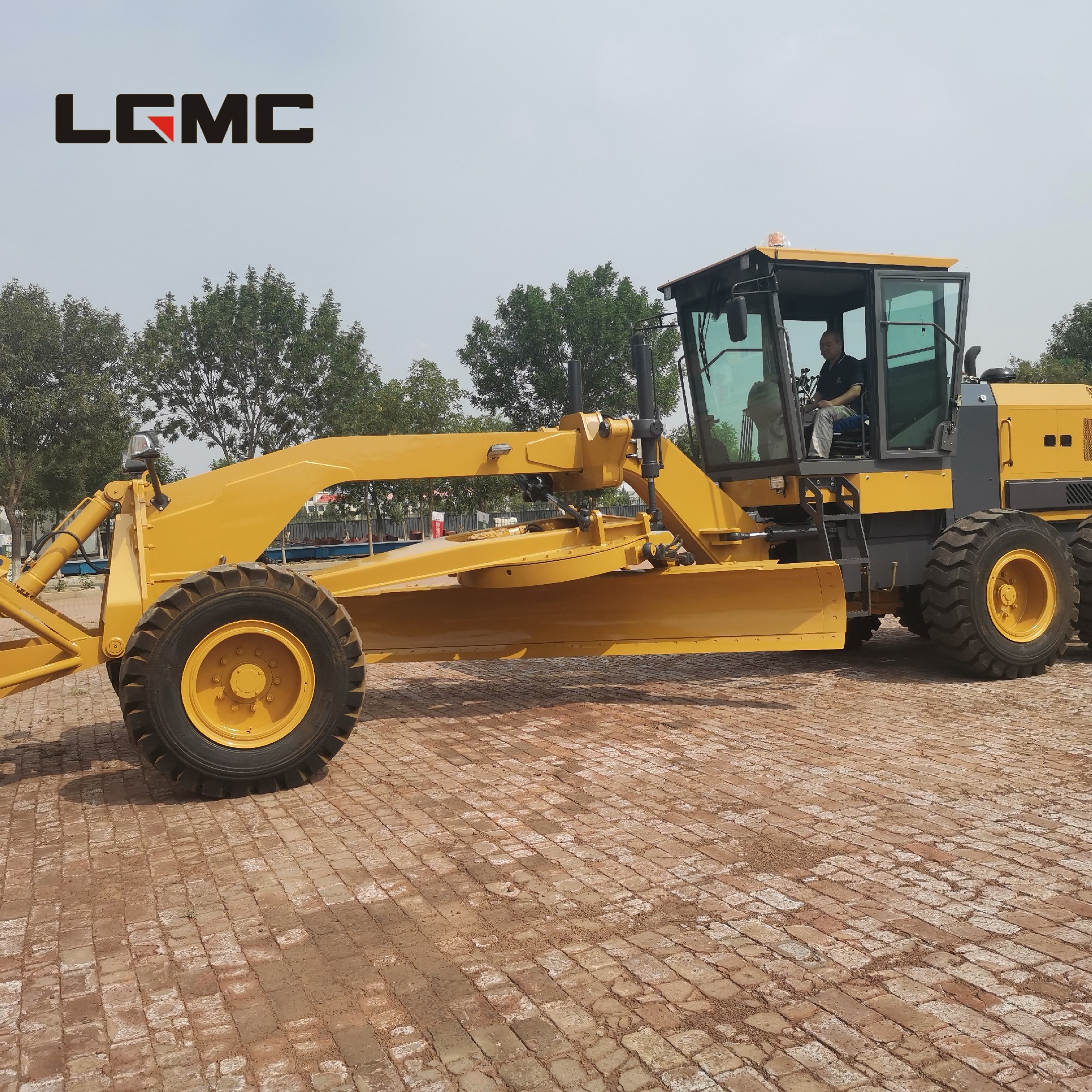

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

·Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3 reverse shifts makes operation easy and convenient
·Hydraulic lock, auto lock/unlock  differential ensures stability and powerful traction
·Ideal axle load allocation provides excellent stability while cutting hard surface
·Serviceable, efficient hydraulic system enables every part to be fully used
·Box-typed frame and advanced T/M enable it to complete heavy-duty work
·A wide working range is accomplished through flexible blade suspension system and articulated frame


>
<

Detail Information

 SPECIFICATIONS
Overall dimensionL×W×H8100×2200×3150mmOverall parametersCutter size(L×H×T)3648×500×18mm
Mini ground clearance of front axle450mmSwing angle of balde360°
Ground clearance of rear axle410mmGround clearance of blade450mm
Wheel tread1800mmCutting depth of blade260mm
wheel base6475mmIncination angle of bladeForward 47°/backward 5°
Length of blade3350mmSliding range of bladeLeft 550/right 550mm
Wheelbase of rear axles1410mmTransmission
System
Max. speed (Forward/reverse)40km/h 30km/h
EngineBrandWP6G125Gearbox typeFixed shaft power stage
Rated power/speed125hp/2400Torque converterSingle-stage single-phase three-element
Certified capacity6.75LGearsForward 4 reverse 4
Minimum fuel consumption rate≤225g/(kw.h)Tire type17.5-25
Overall parametersOverall weight8000kgHydraulic systemTypeOpen-type system
Max.swinging angle of front axle±16°System pressure16L
Max.steering angle of front wheel±45°Fill capacityFuel180L
Steering angle of articulated frame±23°Hyfraulic oil130L
Cutter diameter1250mm
