Guangxi Ligong Machinery Co.,Ltd

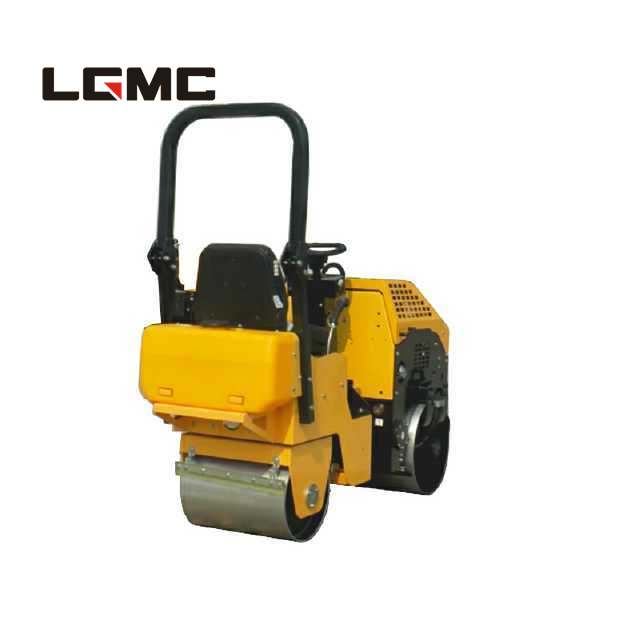

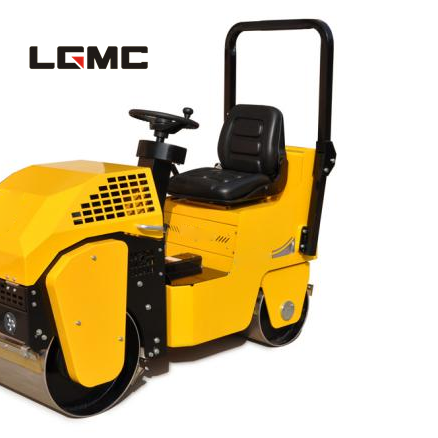

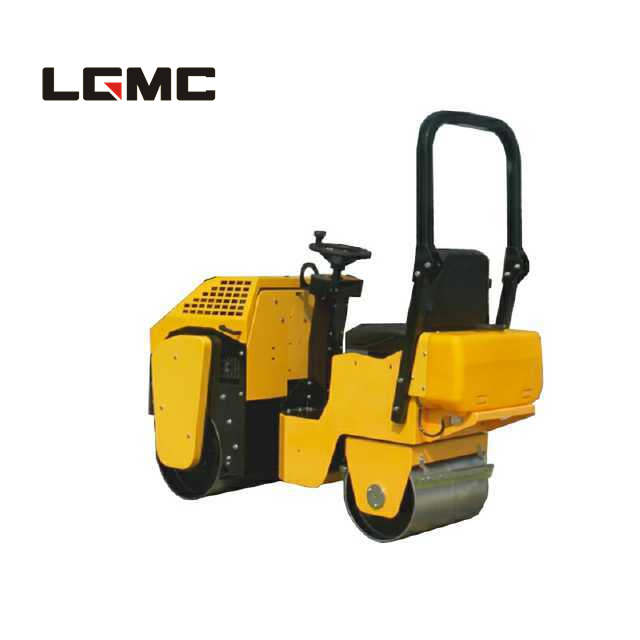

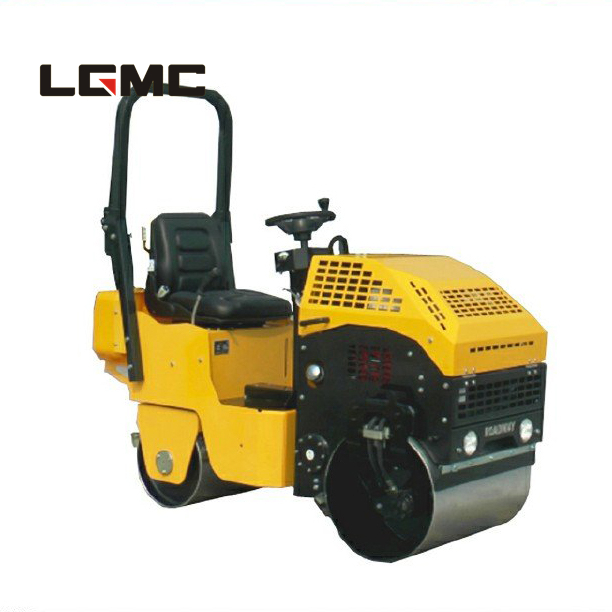

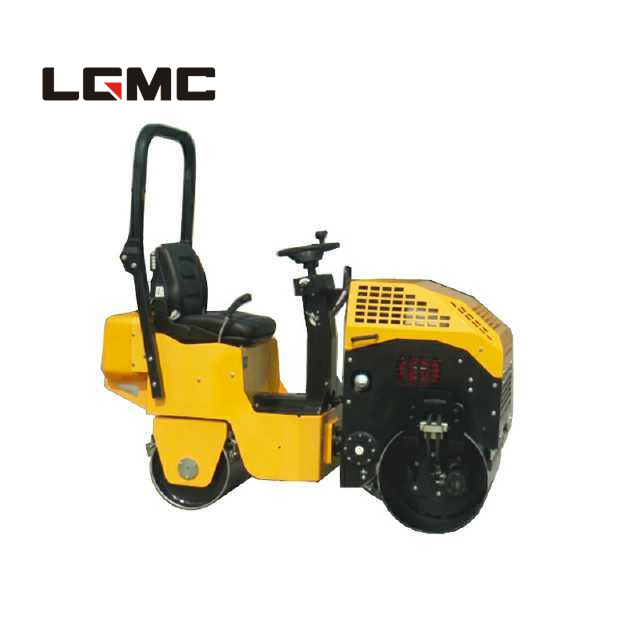

YL61C
YL61C
YL61C
YL61C
YL61C

YL61C

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Features of R
oad Roller

Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.



>
<

Detail Information

型号TypeYL61C
行走Run
速度Speed0-12km/h
转向半径Turning radius2600mm
理论爬坡能力Climbing capacity in theory40%
压实Compaction
静线载荷前/后Static load forward/back118/110N/cm
名义振幅Nominal amplitude0.5mm
振动频率Vibration frequency60Hz
激振力Exciting force2 x 30kN
水箱容积Water tank volume220L
工作Working
驱动Drive变量柱塞泵,径向液压马达Variable plunger pump, radial plunger hydraulic motor
振动Vibration齿轮泵,齿轮马达 Gear pump, Gear motor
转向Turning  转向器,液压缸转向Redirector, hydraulic ram
停车制动Stop braking 刹车制动式Parking brake
发动机Engine
型号ModelPerkins 403D-15
类型Type柴油机,水冷,4冲程,3缸Diesel engine, water-cooled, 4stroke, three cylinder
功率Power32.2hp/2800rpm
邮箱容积Fuel tank volume40L
润滑油量Lubricant L3.8L
燃油消耗量Fuel consumption281g/kWh
尺寸规格Dimension
钢轮宽度Width of steel wheel1200mm
钢轮直径Diameter of steel wheel700mm
轮距Total length2445mm
总长Total width1280mm
总宽Total height2703mm
总高Tread1730mm
包装尺寸Packing size2565×1380×1970mm
重量Weight
工作重量Working weight2850kg
