Guangxi Ligong Machinery Co.,Ltd

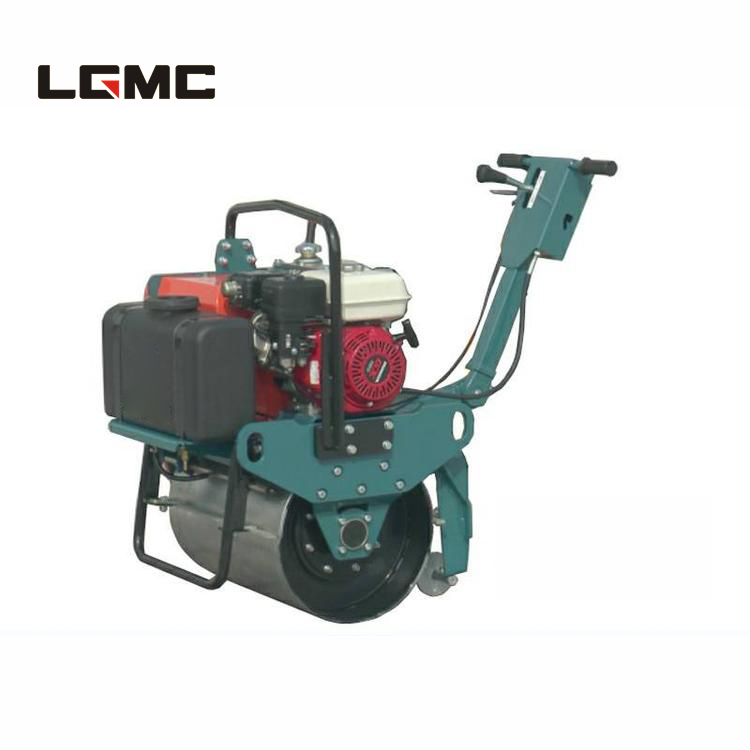

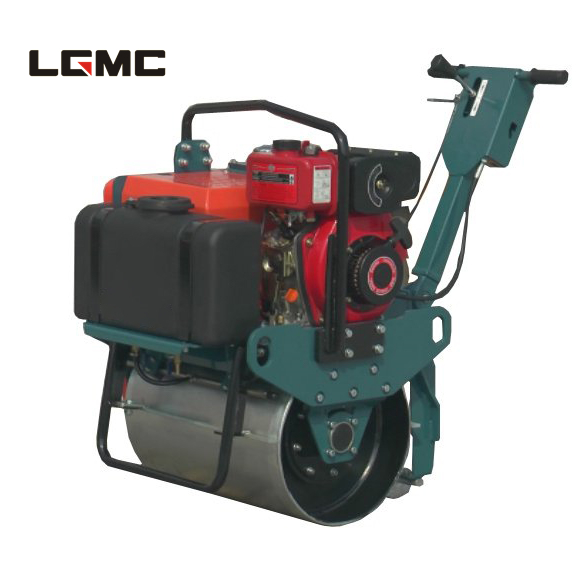

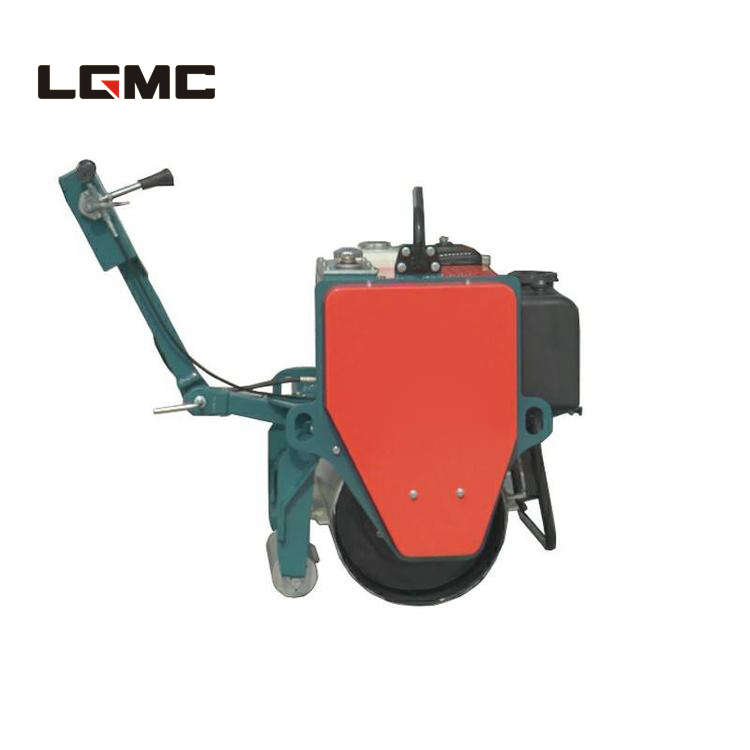

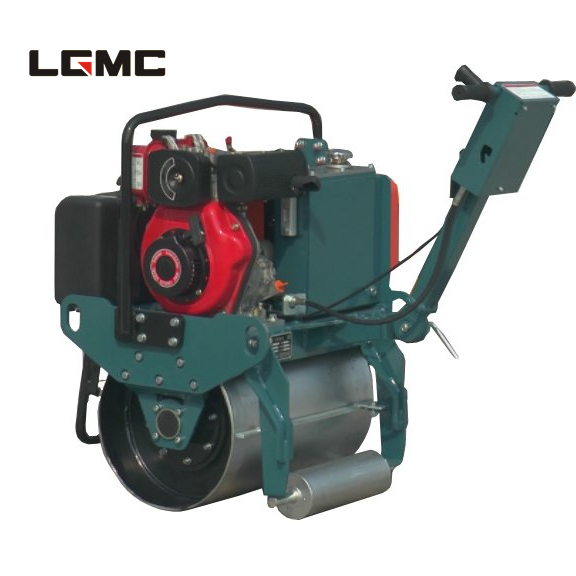

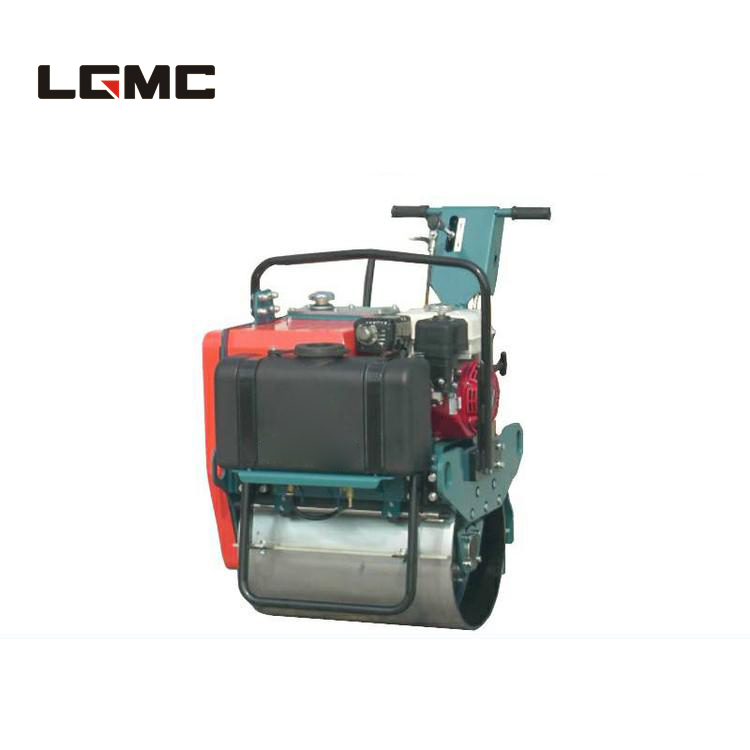

YL11 /YL12
YL11 /YL12
YL11 /YL12
YL11 /YL12
YL11 /YL12

YL11 /YL12

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Features of R
oad Roller

Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.



>
<

Detail Information

型号TypeYL11 YL12
行走Run
速度Speed0.6km/h1.2km/h
理论爬坡能力Climbing capacity in theory20%
压实Compaction
静线载荷前/后Static load45N/cm35N/cm
名义振幅Nominal amplitude0.6mm0.5mm
振动频率Vibration frequency70Hz80Hz
激振力Exciting force12KN10KN
水箱容积Water tank volume15L12.5L
工作Walking
驱动DriveHydraulic pump and motorManual
振动VibrationMechanical drive, automatic centrifugal clutchAutomatic centrifugal clutch
发动机Engine
型号ModelHONDA GX160
类型Type  Gasoline engine, air cooled, 4stroke, OHV, single cylinder
功率Power5.5hp/3600rpm
邮箱容积Oil tank volume3.6L
润滑油量Lubricant L0.6L
燃油消耗量Fuel consumption313g/kWh
尺寸规格Dimension
钢轮宽度Width of steel wheel560mm460mm
钢轮直径Diameter of steel wheel400mm346mm
总长Total length(keep handrail level)1380mm1220mm
总宽Total width700mm560mm
总高Total height(keep handrail upright)1050mm970mm
包装尺寸Packing size1050x900x1200mm980x720x980mm
重量Weight
工作重量Working weight300kg142kg
