Guangxi Ligong Machinery Co.,Ltd

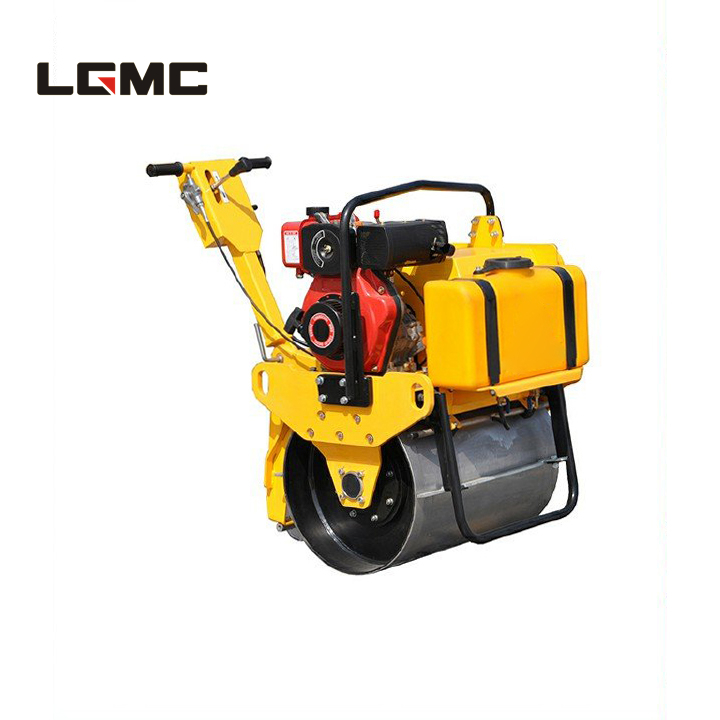

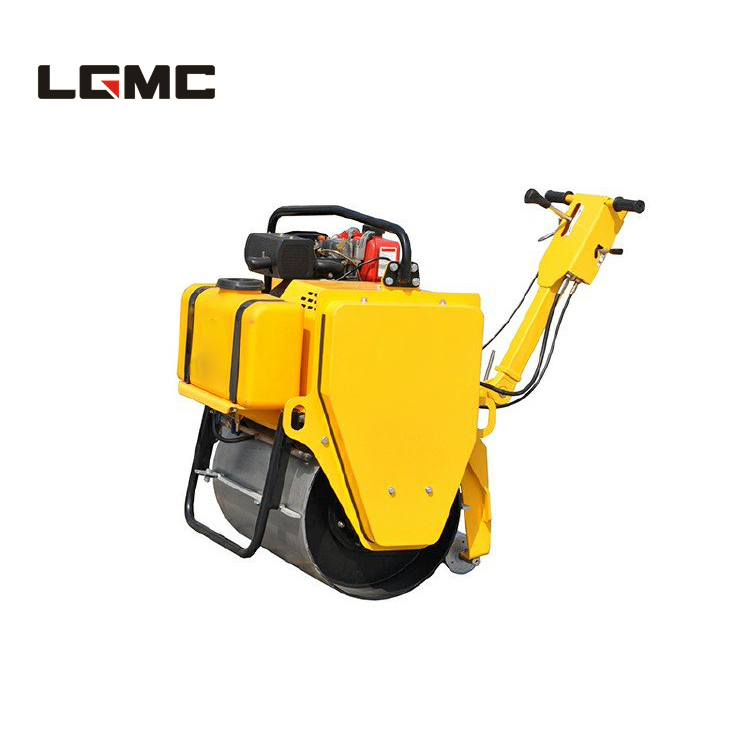

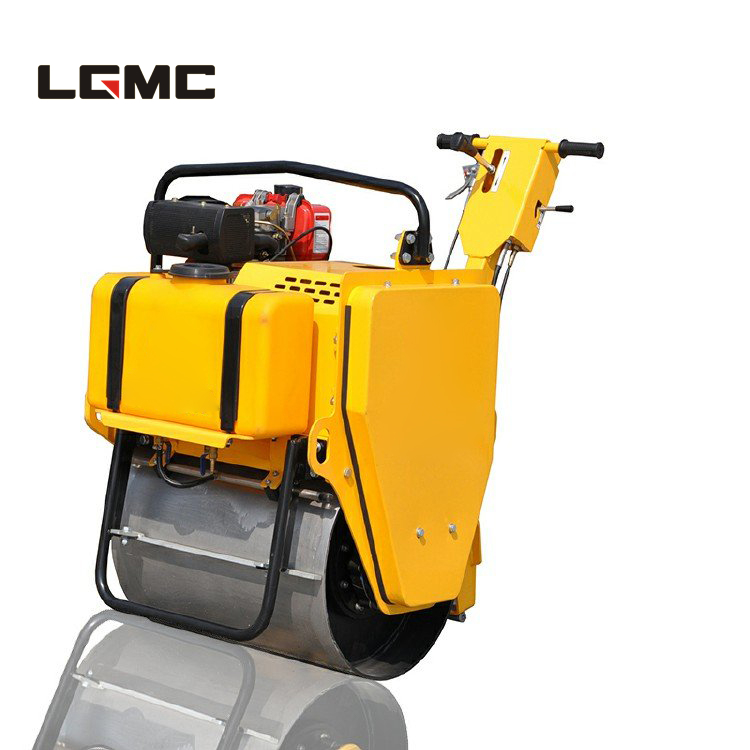

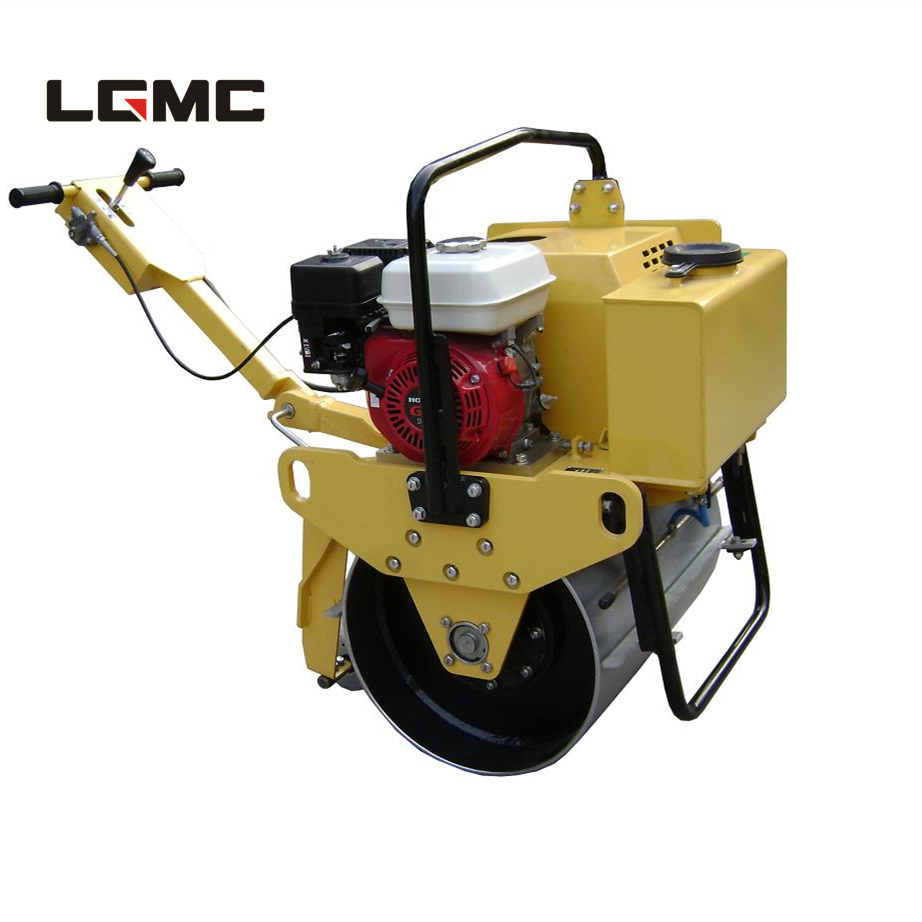

YL21/YL22
YL21/YL22
YL21/YL22
YL21/YL22
YL21/YL22

YL21/YL22

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Features of R
oad Roller

Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.



>
<

Detail Information

型号TypeYL21YL22
行走Run
速度Speed0-2.8km/h(Forward and back)
理论爬坡能力Climbing capacity in theory30%
压实Compaction
静线载荷前/后Static load45N/cm
名义振幅Nominal amplitude0.6mm
振动频率Vibration frequency70Hz
激振力Exciting force13.5KN
水箱容积Water tank volume15L
工作Walking
驱动DriveStatic hydraulic drive unit
振动VibrationMechanical drive, automatic centrifugal clutchMechanical drive, manual clutch
发动机Engine
型号ModelHONDA GX160
类型Type  Gasoline engine, air cooled, 4stroke, OHV, single cylinder
功率Power5.5hp/3600rpm
邮箱容积Oil tank volume3.6L
润滑油量Lubricant L0.6L
燃油消耗量Fuel consumption313g/kWh
尺寸规格Dimension
钢轮宽度Width of steel wheel600mm
钢轮直径Diameter of steel wheel450mm
总长Total length(keep handrail level)1420mm
总宽Total width750mm
总高Total height(keep handrail upright)1100mm
包装尺寸Packing size1050x900x1200mm
重量Weight
工作重量Working weight295kg
