Product Details

Guangxi Ligong Machinery Co.,Ltd

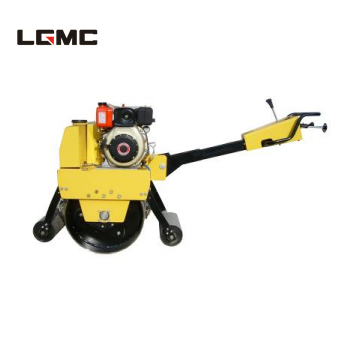

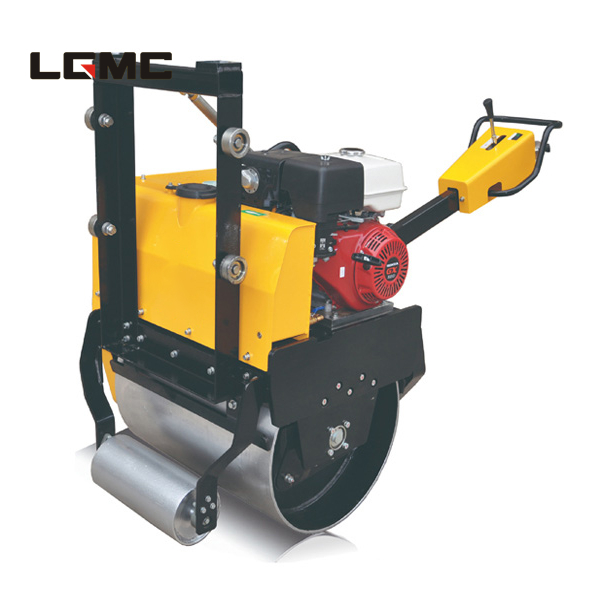

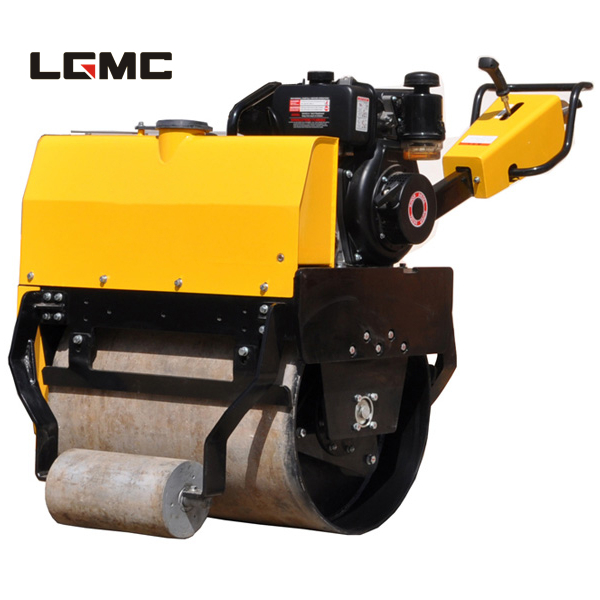

YL24/YL24C
YL24/YL24C
YL24/YL24C
YL24/YL24C

YL24/YL24C

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Features of R
oad Roller

Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.



>
<

Detail Information

型号TypeYL24YL24C
行走Run
速度Speed0-3.0km/h(Forward and back)
理论爬坡能力Climbing capacity in theory30%
压实Compaction
静线载荷前/后Static load62N/cm65N/cm
名义振幅Nominal amplitude0.5mm
振动频率Vibration frequency70Hz
激振力Exciting force16kN
水箱容积Water tank volume20 L
工作Working
驱动Drive静液压传动单元 Static hydraulic drive unit
振动Vibration   机械传动,电磁离合 Mechanical drive, electromagnetic clutch
发动机Engine
型号ModelHONDA,GX390178F
类型Type汽油机,空冷4冲程,OHV,单缸Gasoline engine, air cooled, 4stroke, OHV, single cylinder柴油机,水冷4冲程,三缸
Diesel engine, air cooled, 4stroke, vertical type, single cylinder
功率Power13.0hp/3600rpm6.0hp/3600rpm
邮箱容积Fuel tank volume6.5L5.5L
润滑油量Lubricant L1.1L1.7L
燃油消耗量Fuel consumption313g/kWh280g/kWh
尺寸规格Dimension
钢轮宽度Width of steel wheel715mm
钢轮直径Diameter of steel wheel560mm
总长Total length(keep handrail level)2145mm
总宽Total width840mm
总高Total height(keep handrail upright)1820mm
包装尺寸Packing size1160x960x2050mm
重量Weight
工作重量Working weight520kg542kg
