Product Details

Guangxi Ligong Machinery Co.,Ltd

YL31/YL31C
YL31/YL31C
YL31/YL31C
YL31/YL31C

YL31/YL31C

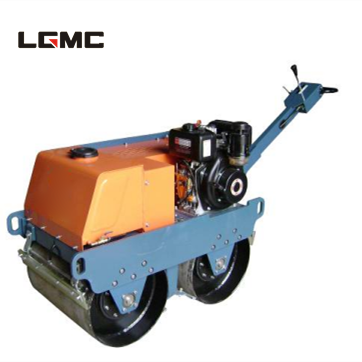

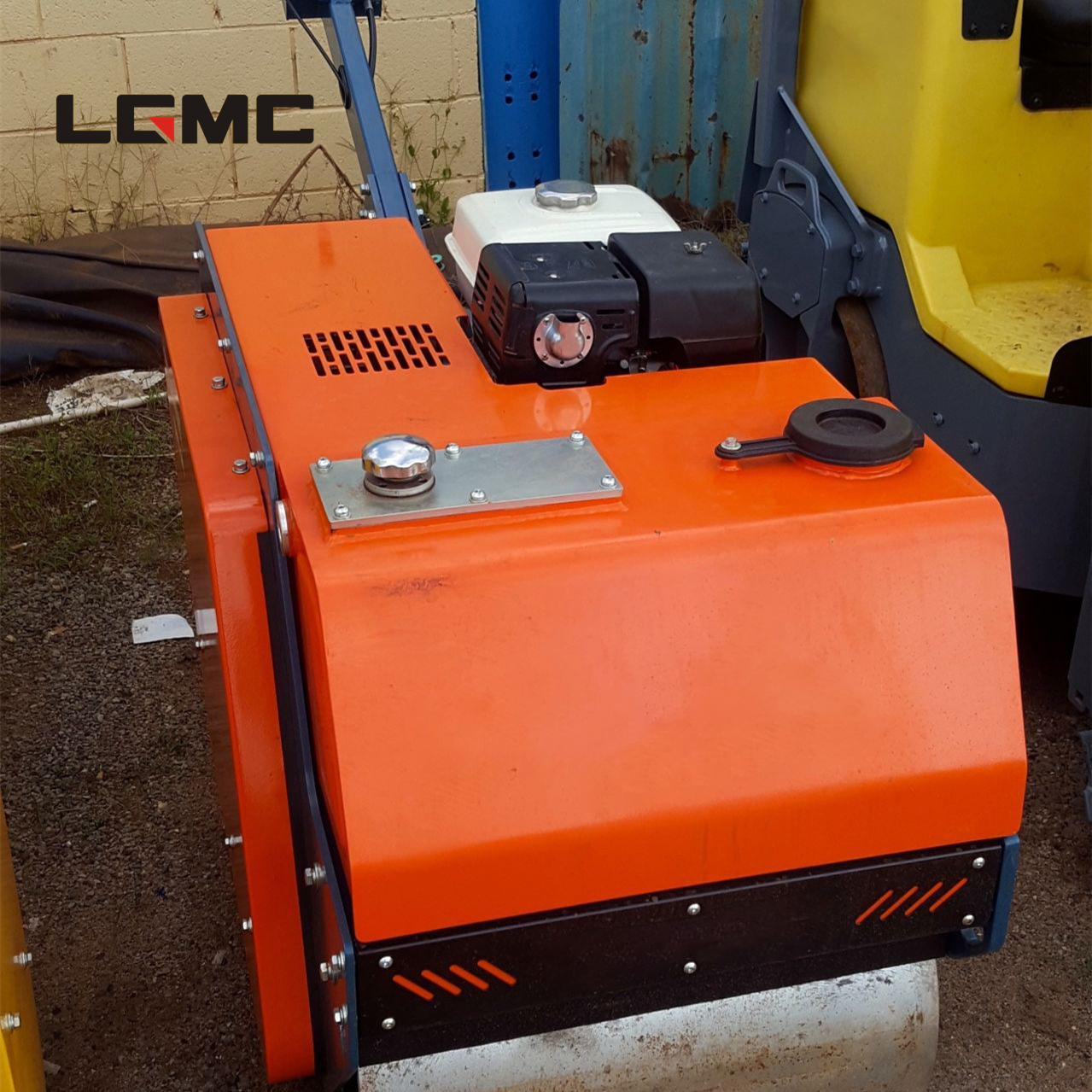

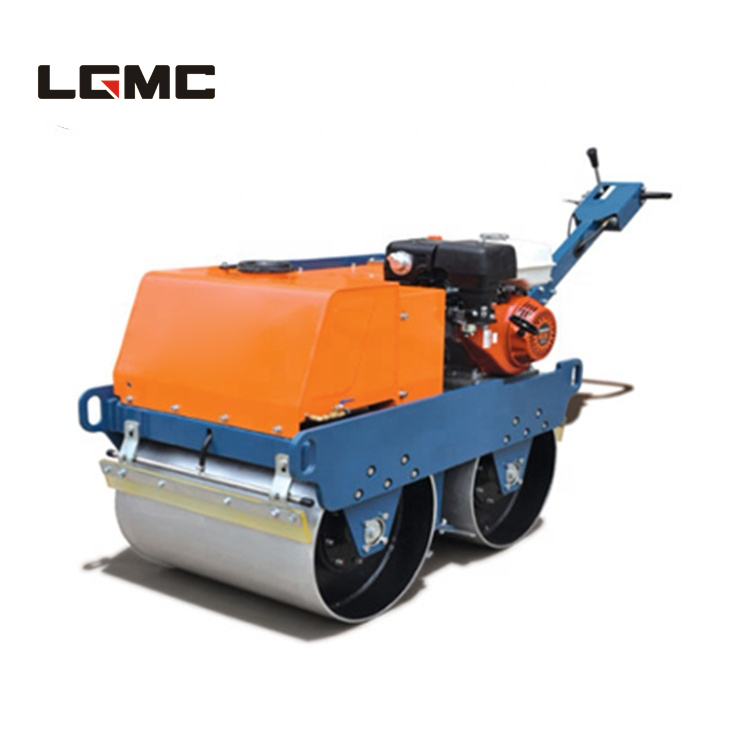

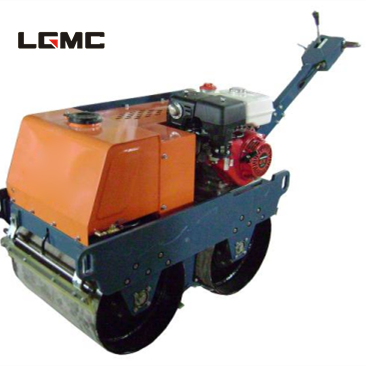

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Features of R
oad Roller

Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.



>
<

Detail Information

型号TypeYL31YL31C
行走Run
速度Speed0.6km/h, 1.2km/h  (Forward and back)
理论爬坡能力Climbing capacity in theory30%
压实Compaction
静线载荷前/后Static load forward/back35/38N/cm37.3/40.3N/cm
名义振幅Nominal amplitude0.6mm
振动频率Vibration frequency70Hz
激振力Exciting force13.5kN
水箱容积Water tank volume50L
工作Working
驱动DriveHydraulic pump and motor
振动VibrationManual clutch
发动机Engine
型号ModelHONDA, GX270178F
类型Type       Gasoline engine, air cooled, 4stroke, OHV, single cylinderDiesel engine, air cooled, 4stroke, vertical type, single cylinder
功率Power9.0hp/3600/rpm6.0hp/3600rpm
邮箱容积Fuel tank volume6L5.5L
尺寸规格Dimension
钢轮宽度Width of steel wheel600mm
钢轮直径Diameter of steel wheel450mm
轮距Tread600mm
总长Total length(keep handrail level)2460mm
总宽Total width750mm
总高 Total height(keep handrail upright)1800mm
包装尺寸Packing size1460x810x1230mm
重量Weight
工作重量Working weight550kg570kg
