Guangxi Ligong Machinery Co.,Ltd

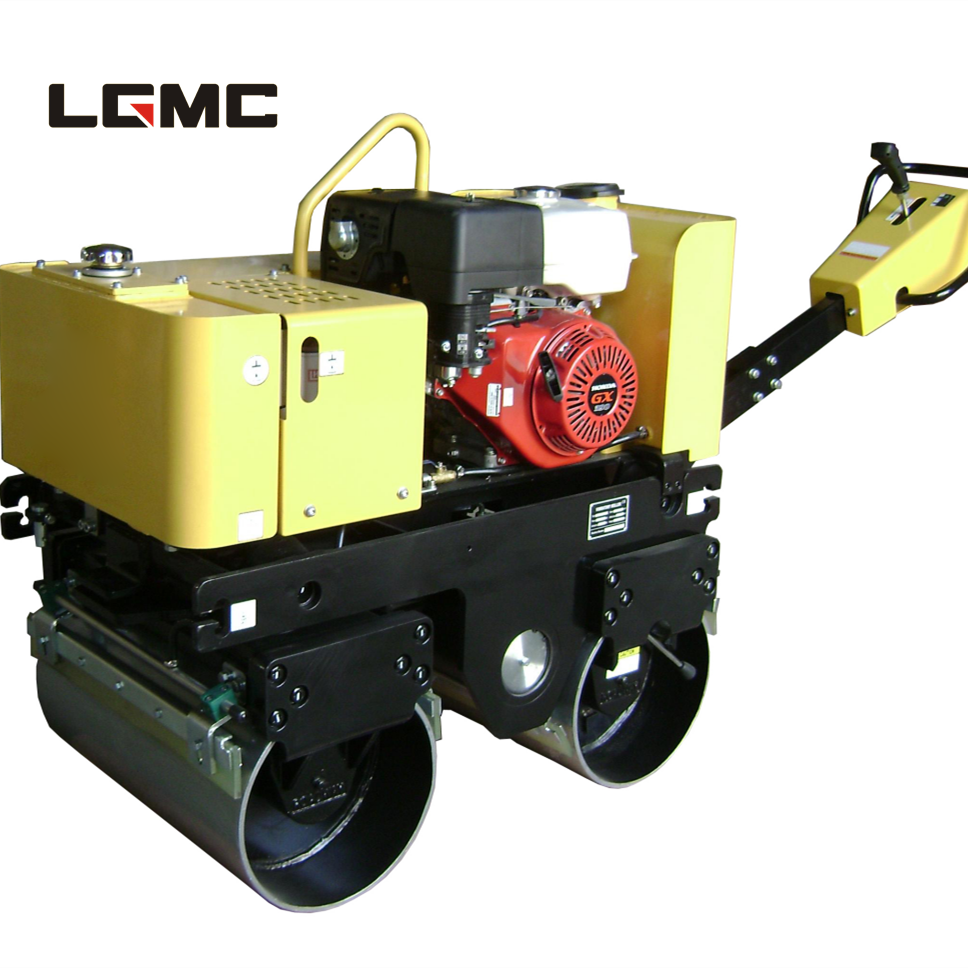

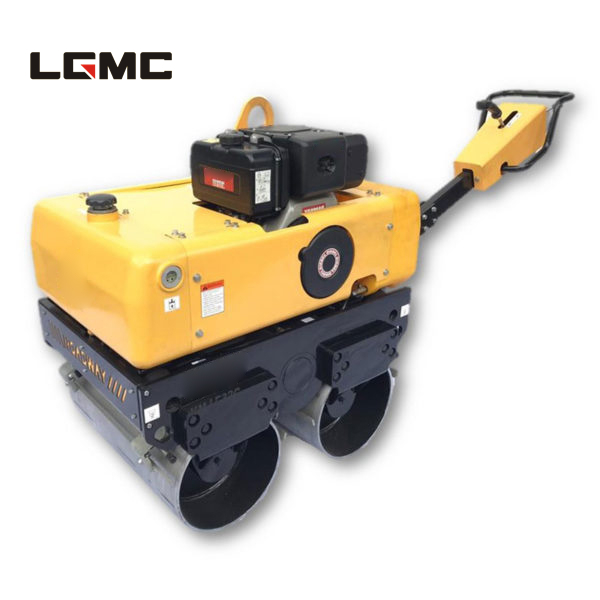

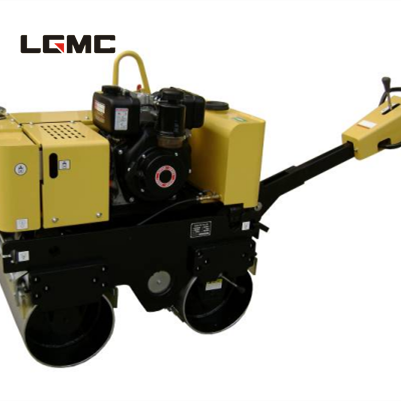

YL33/YL33C
YL33/YL33C
YL33/YL33C
YL33/YL33C

YL33/YL33C

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Features of R
oad Roller

Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.



>
<

Detail Information

型号TypeYL33YL33C
行走Run
速度Speed0—3.5km/h (前进、后退) (Forward and back)
转向半径Turning angle15°
理论爬坡能力Climbing capacity in theory25%
压实Compaction
静线载荷前/后Static load forward/back49.8/51.8N/cm51.5/53.5N/cm
名义振幅Nominal amplitude0.5mm
振动频率Vibration frequency60Hz
激振力Exciting force17kN
水箱容积Water tank volume25L
工作Working
驱动Drive变量柱塞泵,定量液压马达
Variable plunger pump ,constant displacement hydraulic motor
振动Vibration机械传动,电磁离合Mechanical drive, electromagnetic clutch
转向Turning手动 Manual
停车制动Stop braking机械销锁式Mechanical lock bolt
发动机Engine
型号ModelHONDA, GX390KIPOR, 178F
类型Type汽油机,空冷,4冲程,OHV,单缸柴油机,空冷,4冲程,立式,单缸
Gasoline engine, air cooled, 4stroke, OHV, single cylinderDiesel engine, air cooled, 4stroke, vertical type, single cylinder
功率Power13.0hp/3600rpm6.0hp/3600rpm
邮箱容积Fuel tank volume6.5L5.5L
润滑油量Lubricant L1.1L1.7L
燃油消耗量Fuel consumption313g/kWh280g/kWh
尺寸规格Dimension
钢轮宽度Width of steel wheel650mm
钢轮直径Diameter of steel wheel355mm
轮距Tread650mm
总长Total length(keep handrail level)2650mm
总宽Total width680mm
总高Total height(keep handrail upright)1890mm
包装尺寸Packing size1460x810x1910mm
重量Weight
工作重量Working weight800kg820kg
