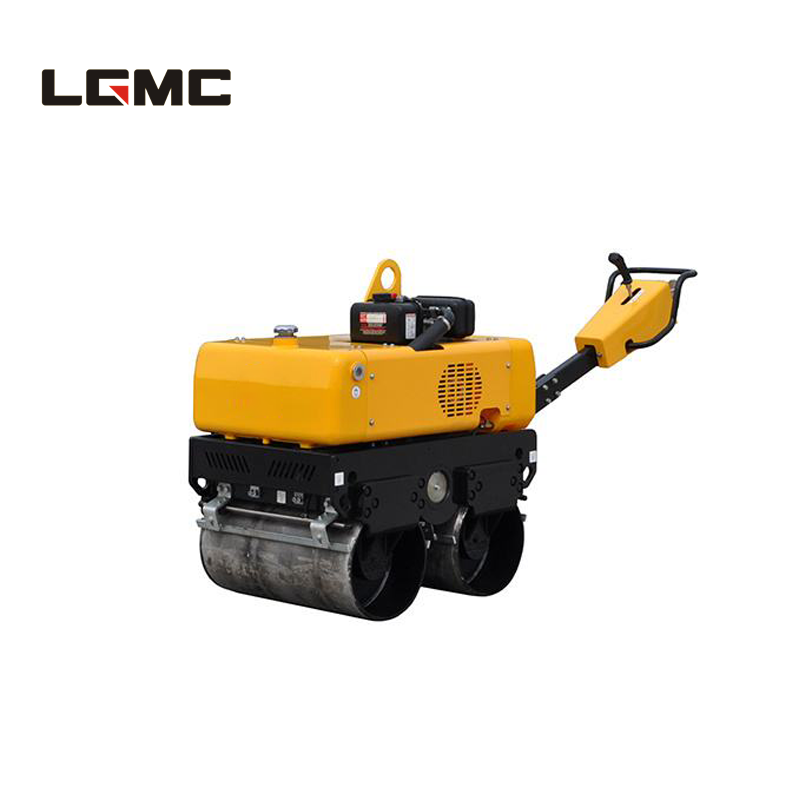

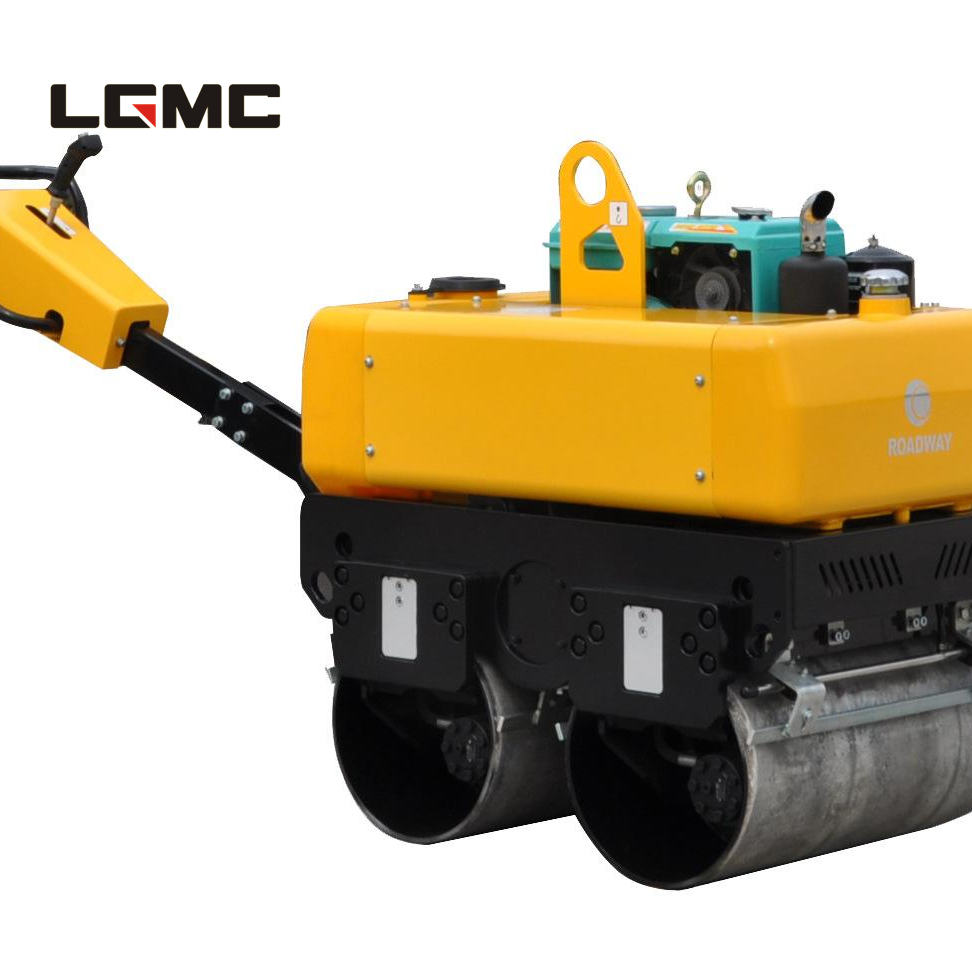

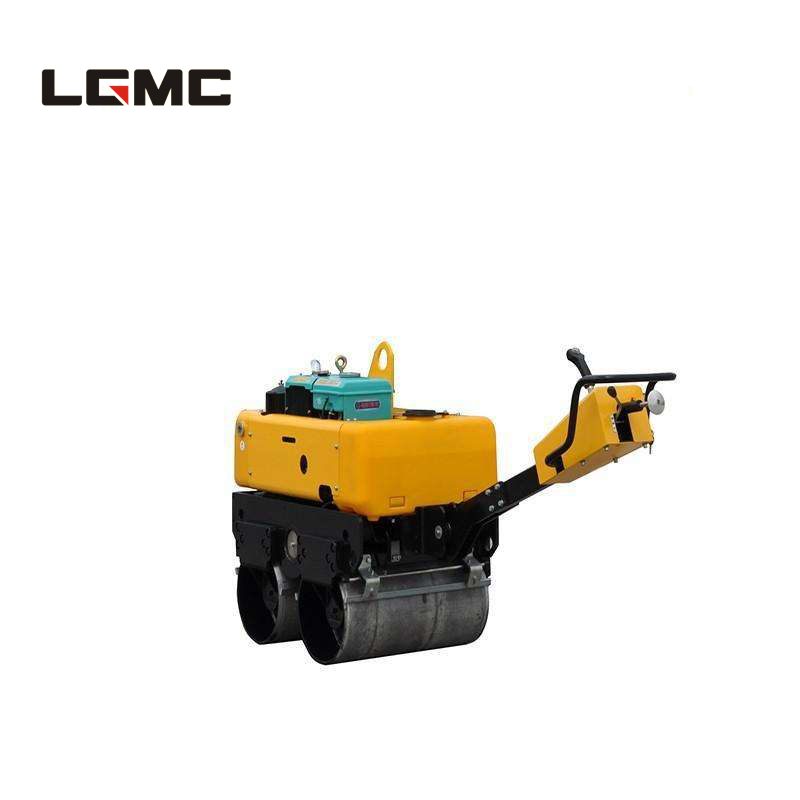

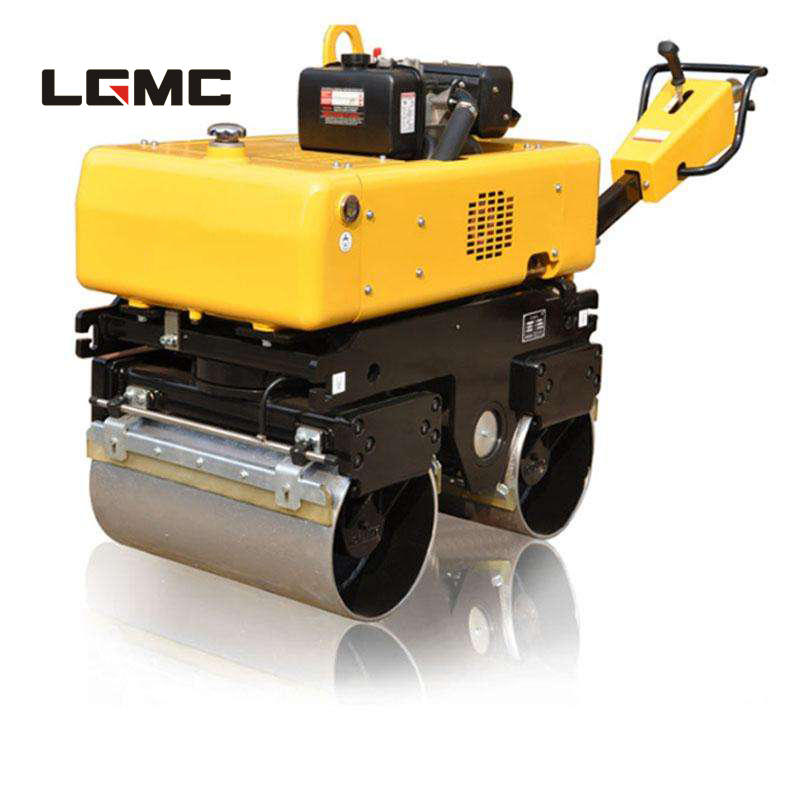

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.
Features of Road Roller
Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.
1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.
型号 | Type | YL34 | YL34C |
行走 | Run | ||
速度 | Speed | 0—3.5km/h (前进、后退) (Forward and back) | |
转向半径 | Turning angle | 15° | |
理论爬坡能力 | Climbing capacity in theory | 25% | |
压实 | Compaction | ||
静线载荷前/后 | Static load forward/back | 50.2/52.2N/cm | 52/54N/cm |
名义振幅 | Nominal amplitude | 0.5mm | |
振动频率 | Vibration frequency | 60Hz | |
激振力 | Exciting force | 17kN | |
水箱容积 | Water tank volume | 25L | |
工作 | Working | ||
驱动 | Drive | 变量柱塞泵,定量液压马达 | |
Variable plunger pump ,constant displacement hydraulic motor | |||
振动 | Vibration | 机械传动,电磁离合Mechanical drive, electromagnetic clutch | |
转向 | Turning | 液压缸转向 Hydraulic ram | |
停车制动 | Stop braking | 机械销锁式Mechanical lock bolt | |
发动机 | Engine | ||
型号 | Model | HONDA, GX390 | KIPOR, 178F |
类型 | Type | 汽油机,空冷,4冲程,OHV,单缸 | 柴油机,空冷,4冲程,立式,单缸 |
Gasoline engine, air cooled, 4stroke, OHV, single cylinder | Diesel engine, air cooled, 4stroke, vertical type, single cylinder | ||
功率 | Power | 13.0hp/3600rpm | 6.0hp/3600rpm |
邮箱容积 | Fuel tank volume | 6.5L | 5.5L |
润滑油量 | Lubricant L | 1.1L | 1.7L |
燃油消耗量 | Fuel consumption | 313g/kWh | 280g/kWh |
尺寸规格 | Dimension | ||
钢轮宽度 | Width of steel wheel | 650mm | |
钢轮直径 | Diameter of steel wheel | 355mm | |
轮距 | Tread | 650mm | |
总长 | Total length(keep handrail level) | 2460mm | |
总宽 | Total width | 680mm | |
总高 | Total height(keep handrail upright) | 1800mm | |
包装尺寸 | Packing size | 1460x810x1910mm | |
重量 | Weight | ||
工作重量 | Working weight | 820kg | 840kg |
