Guangxi Ligong Machinery Co.,Ltd

YL301/YL301C
YL301/YL301C
YL301/YL301C
YL301/YL301C

YL301/YL301C

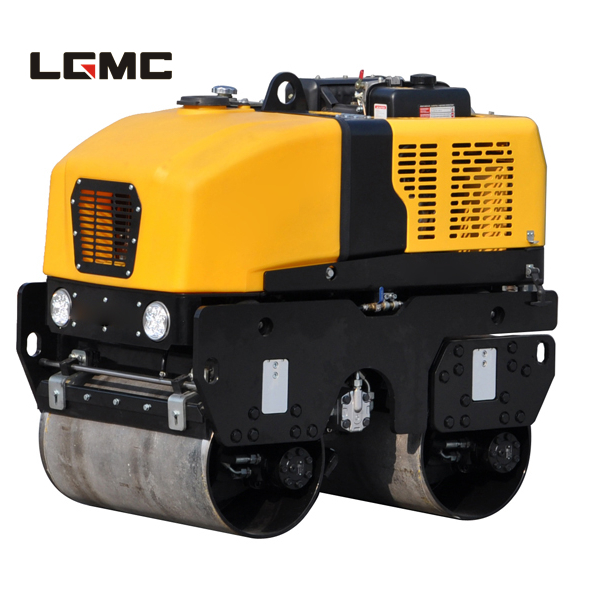

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.


Features of R
oad Roller

Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.



>
<

Detail Information

TypeYL301YL301C
Run
Speed1.2km/h (low),  3.6km/h (low) (high)
Turning angle15°
Climbing capacity in theory25%
Compaction
Static load forward/back50.2/52.2N/cm52/4N/cm
Nominal amplitude0.5mm
Vibration frequency60Hz
Exciting force20kN
Engine
ModelHONDA, GX390186F
TypeGasoline engine, air cooled, 4stroke, OHV, single cylinderDiesel engine, air cooled, 4stroke, vertical type, single cylinder
Power13.0hp/3600rpm8.0hp/3600rpm
Fuel tank volume6.5L5.5L
Lubricant L1.1L1.7L
Fuel consumption313g/kWh280g/kWh
Dimension
Width of steel wheel635mm
Diameter of steel wheel350mm
Tread650mm
Total width710mm
Weight
Working weight788kg810kg
MAX. working weight848kg870kg
