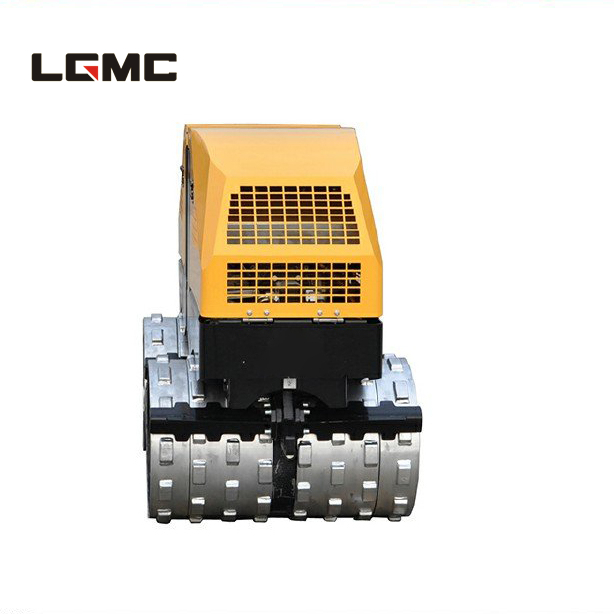

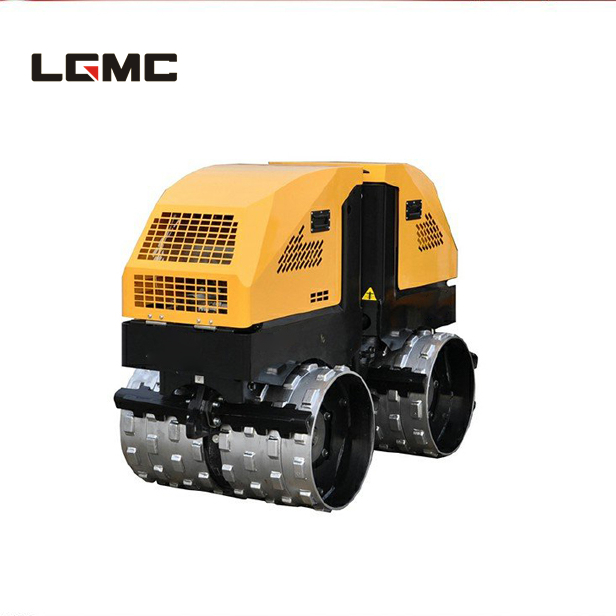

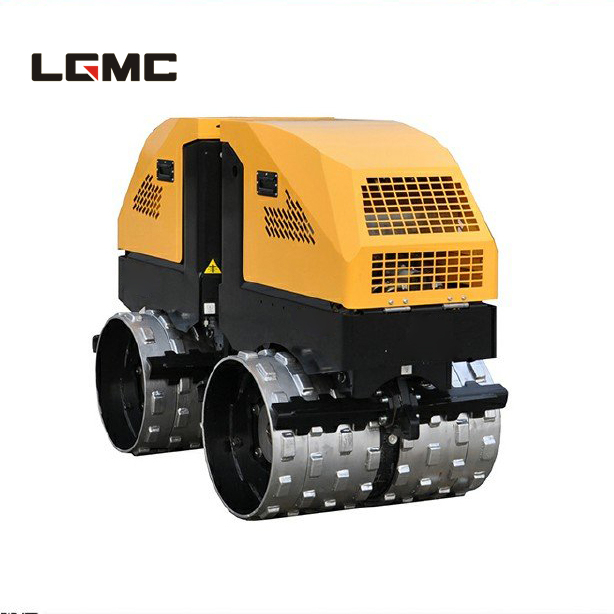

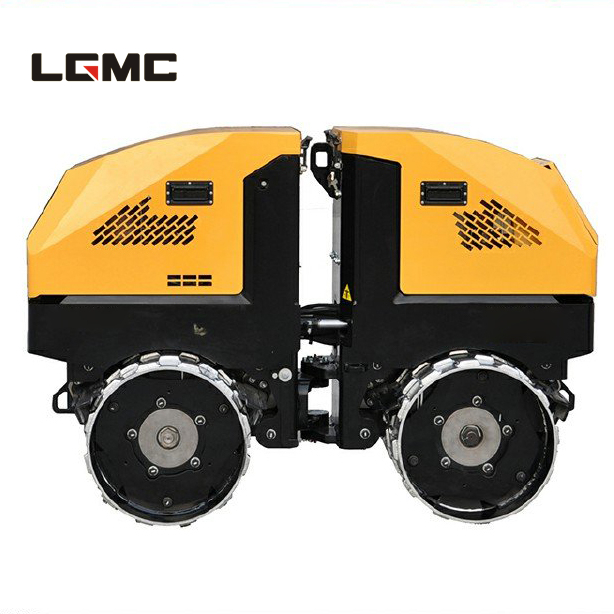

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.
Features of Road Roller
Product characteristics
Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.
1. Imported Sauer hydraulic variable plunger pump, drives the machine stepless speed walking.
2. Double Poclain plunger motors drive the machine walking.
3. Imported brand motor drives the steel drum vibrating.
4. Extra-large plastic water tank, free from corrosion and convenient for the water-spraying.
5. Double control levers with vibration button, makes the compaction of edge easy.
6. Electrically controlled water-spray, high efficient and water-saving.
7. Wear-resistant scraper can be lift and fixed during transportation.
8. LED lamp at front and rear for the convenience of night construction.
Type | YL202C |
Run | |
Speed | 1.2km/h(low) 2.4km/h(high) |
Turning radius | 1700mm |
Climbing capacity in theory | 50% |
Compaction | |
Static load forward/back | 98/90N/cm |
Nominal amplitude | 1.7mm |
Vibration frequency | 42Hz |
Exciting force | 70kN/35kN |
Engine | |
Model | Perkins 403D-11 |
Type | Diesel engine, air cooled, 4stroke, three cylinder |
Power | 25hp/2800rpm |
Fuel tank volume | 30L |
Lubricant L | 3.8L |
Fuel consumption | 281g/kWh |
Dimension | |
Width of steel wheel | 600mm/850 mm |
Diameter of steel wheel | 520mm |
Tread | 1000mm |
Total length | 1890mm |
Total width | 850mm |
Total height | 1290mm |
Packing size | 2010x950x1460mm |
Weight | |
MAX. working weight | 1635kg |
